Pulsotronic 9964-1600 Inductive Proximity Sensor
Индуктивный датчик приближения Индуктивный датчик приближения PULSOTRONIC с рабочим диапазоном 5 мм, выход NPN NO, питание 10-30 В DC и защитой IP67 для промышленных применений в автоматизации.

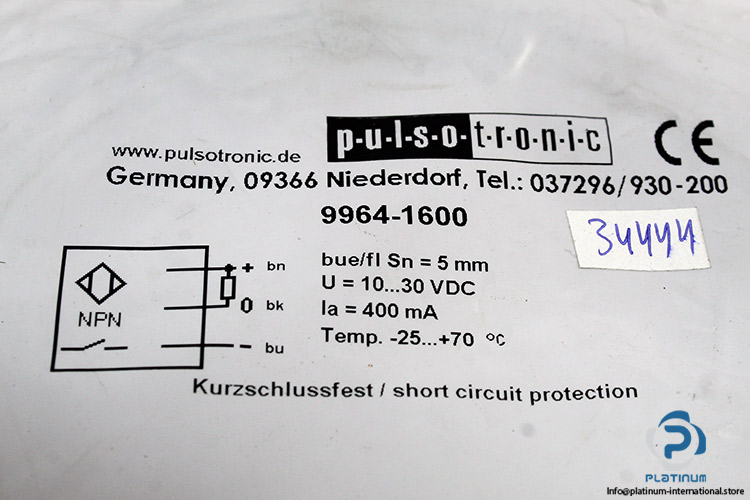

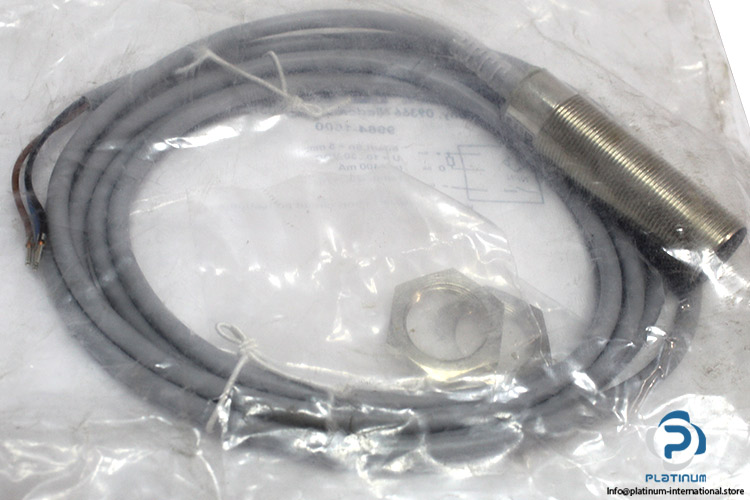

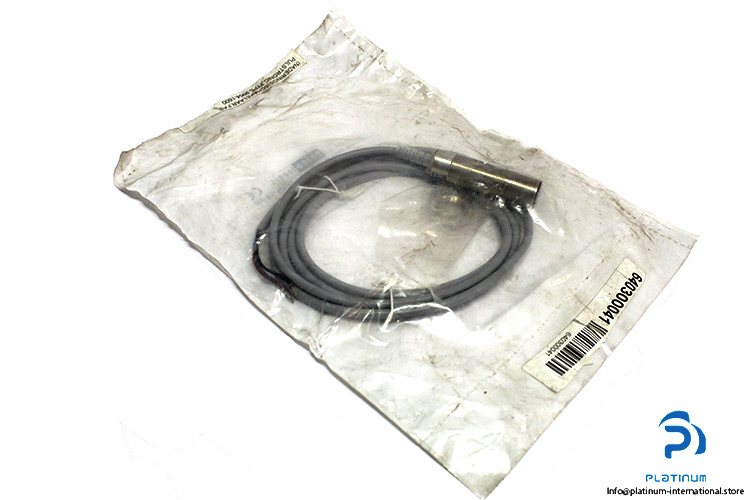

PULSOTRONIC 9964-1600 Inductive Proximity Sensor
The PULSOTRONIC 9964-1600 inductive proximity sensor is designed for reliable non-contact detection in industrial automation systems. With a robust nickel-plated brass housing and IP67 protection, it ensures stable performance in demanding environments.
Manufacturer: PULSOTRONIC
Type: Inductive Proximity Sensor
Model: 9964-1600
Part No.: 0600199
For complete automation solutions, explore our full range of Industrial Sensors and Servo Motors available at Platinum International Company for Industrial Technologies.
| Sensing Range | 5 mm |
| Rated Operational Voltage | 10 / 30 V DC |
| Rated Switching Current | 400 mA |
| Output Signal Type | NPN Normally Open (NO) |
| Electrical Connection | Cable 3-Wires, 2 m |
| Housing Material | Brass, Nickel Plated |
| Protection Class | IP67 |
| Ambient Temperature | -25 / 70 °C |
| Length, Diameter | 50 mm, 18 mm |
