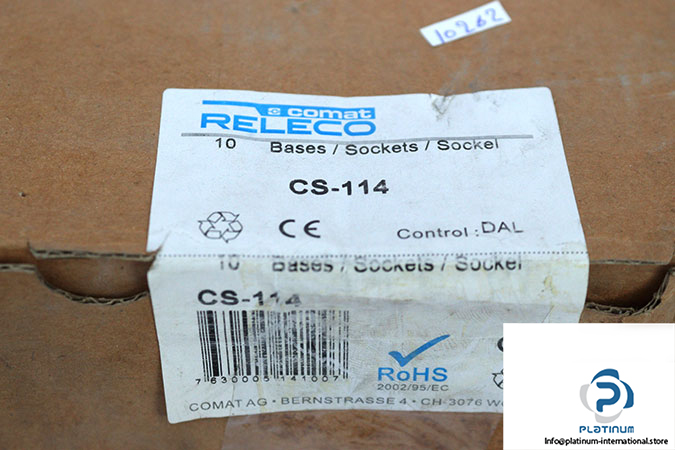

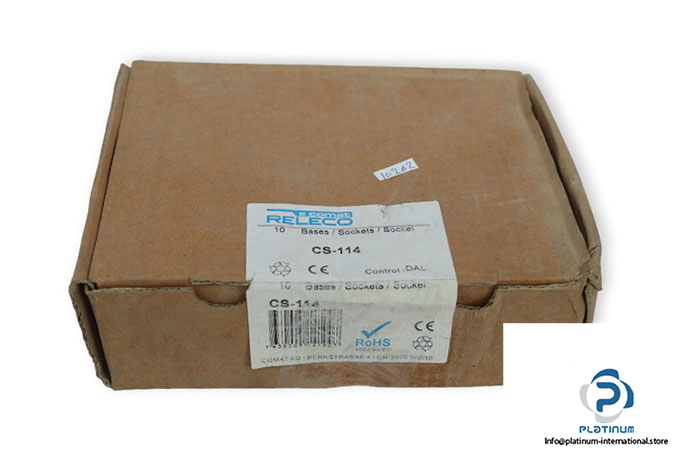

Releco CS-114 Socket

Manufacture: Releco
Type: Socket
Model: CS114

Mounting: DIN rail TS35 or mounting plate
Connection: Screw terminal
Max. screw torque: 0.7 Nm
Screw type: M3, Pozi, slot
Cross section of connecting wire: – Single wire 4 mm2, 2 x 1.5 mm2- Multi wire 2.5 mm2 / AWG16, 2 x 1 mm2 / AWG 18
Housing material: Lexan EXL 9330
Ambient operation temperature: -40 … +60 °C
Rated load max.: 6 A / 250 V
Dimensions (W x H x D): 22.5 x 75 x 46.5 mm
