Rexroth DR 10-5-32/315YM Pilot Operated Pressure Reducing Valve
Б/у
В наличии2 единицыГотово к отправке
PILOT OPERATED PRESSURE REDUCING VALVE
Rexroth Hydronorma DR 10-5-32/315YM hydraulic valve for precise pressure control, supporting up to 350 bar with NG10 size and sub-plate connection.350barconnectionControlHighHydraulichydronormaIndustrialng10operatedPilotPlatePressureReducingRexrothsubValve
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

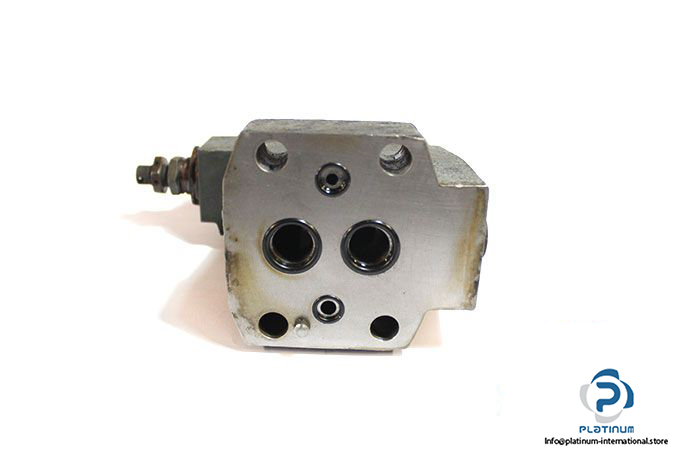

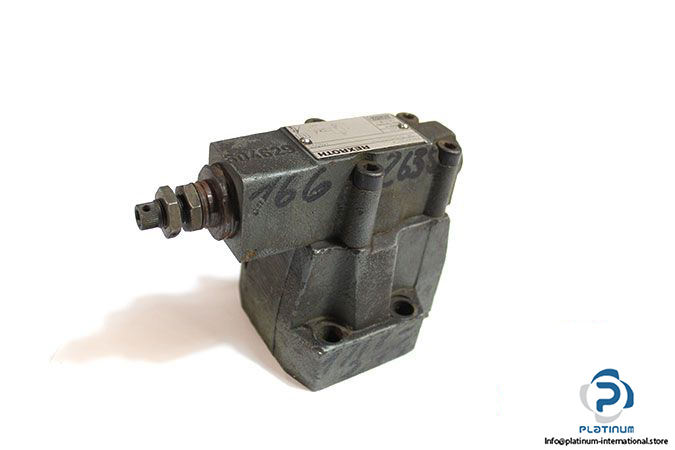

REXROTH HYDRONORMA DR10532315YM PILOT OPERATED PRESSURE REDUCING VALVE
The Rexroth Hydronorma DR 10-5-32/315YM is a high-performance pilot operated pressure reducing valve designed for precise pressure control in hydraulic systems. Built for durability and efficiency, it ensures stable operation even under demanding conditions.
Manufacturer: REXROTH HYDRONORMA
Type: Pilot Operated Pressure Reducing Valve
Model: DR 10-5-32/315YM

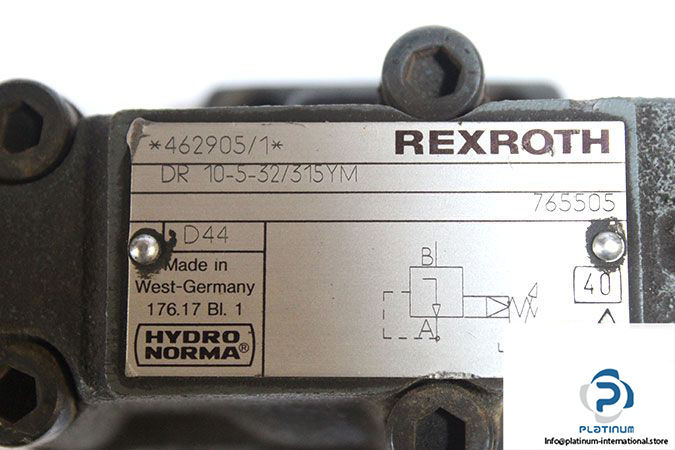

Part No.: 462905/1
| Fluid | Oil |
| Size | NG10 |
| Adjustment Element | Sleeve with hexagon and protective cap |
| Pressure Setting | 315 bar |
| Nominal Pressure | 350 bar |
| Max Operating Pressure at Port B | 350 bar |
| Operating Pressure Range at Port A | 10 ... 350 bar |
| Max Back Pressure at Port Y | 350 bar |
| Max Flow Rate | 150 L/min |
| Ambient Temperature Range | “30 / 50 °C |
| Viscosity Range | 10 / 800 mm²/s |
| Connection | Sub-plate |
