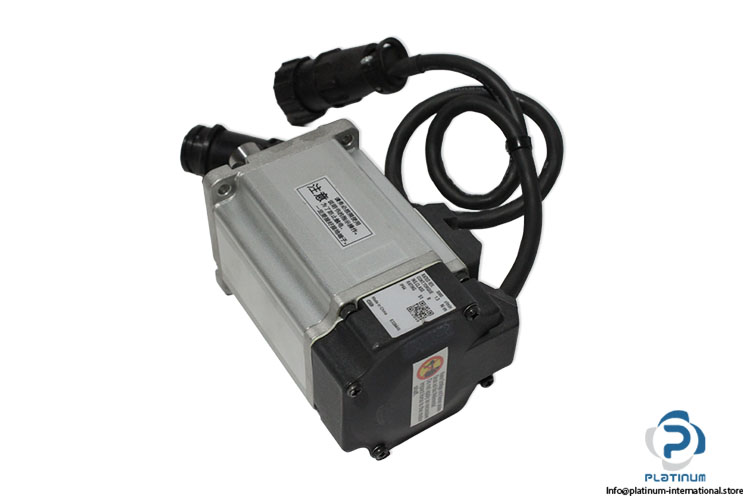

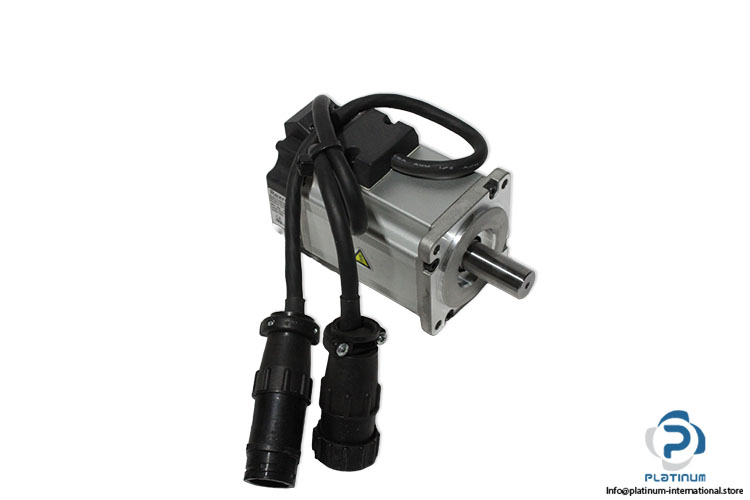

Rexroth MSM031C-0300-NN-M0-CH0 Servomotor
Новинка
В наличии2 единицыГотово к отправке
Bosch Rexroth Synchronous Servomotor The Bosch Rexroth MSM031C-0300-NN-M0-CH0 is a precision synchronous servomotor featuring 0.4 kW rated power, 3000 rpm speed, 1.3 Nm standstill torque, optical multi-turn absolute encoder, IP54 protection, and natural convection cooling for advanced industrial automation applications.
ACAutomationBoschControlDriveEncoderHighIndustrialMotionmotorMultiOpticalPrecisionRexrothServoServomotorSpeedSynchronousTurn
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

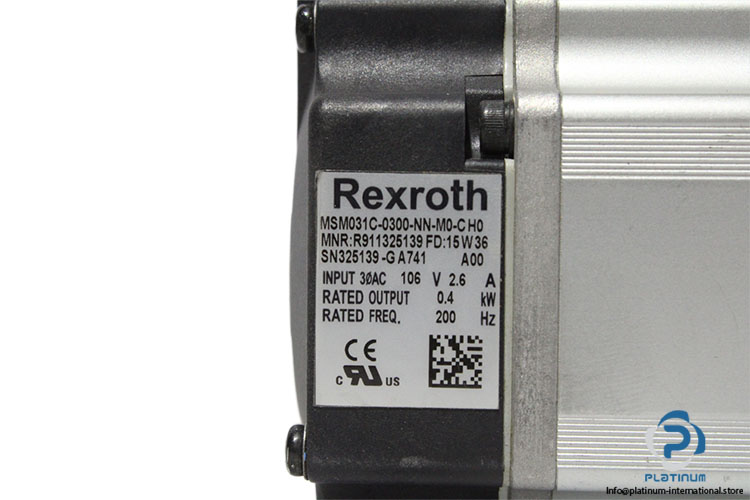

| MNR | R911325139 |
| FD | 15W36 |
| SN | 325139-G A741 A00 |
| Input voltage | 106 vac |
| Rated current | 2.6 A |
| Rated power | 0.4 Kw |
| Rated frequency | 200 hz |

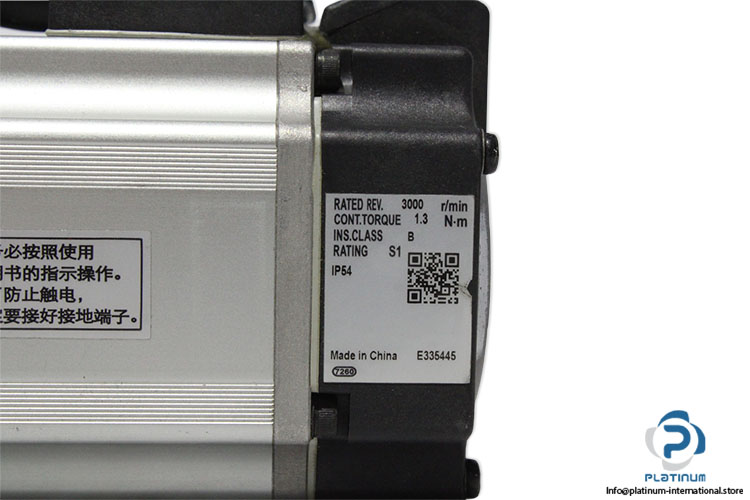

| Rated Speed | 3000 rpm |
| Continuous torque at standstill | 1.3 Nm |
| Thermal class | B |
| Duty | S1 |
| Ambient temp | 0 to 40 °c |
| Cooling Mode | Natural convection |
| holding brake | without holding brake |
| Shaft | Plain shaft without shaft sealing ring |
| Shaft diameter [mm] | 14 |
| International protection code | IP54 |
| Encoder design | Optical encoder, Multi-turn absolute |

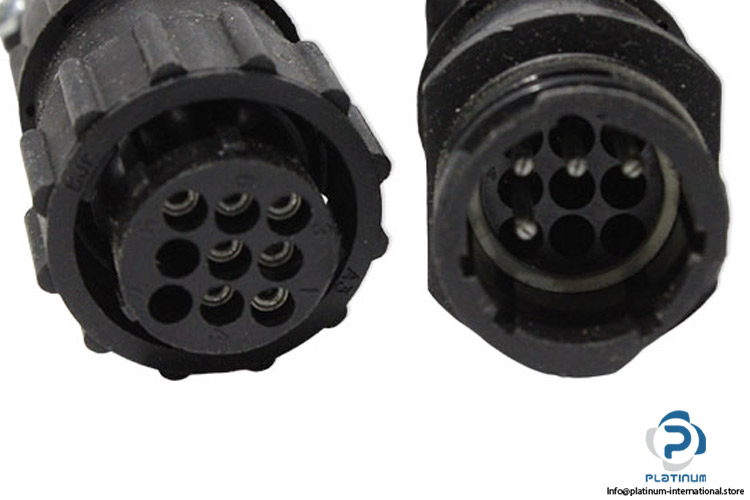

| Connection | circular connector,cable tail |
| Stock key | jo-004 |
| Condition | New |
| SKU | 1096905 |
| Weight | 1,25 |
