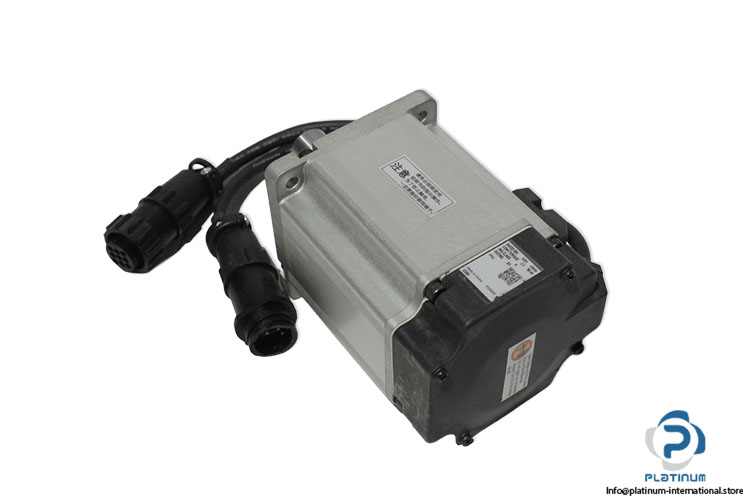

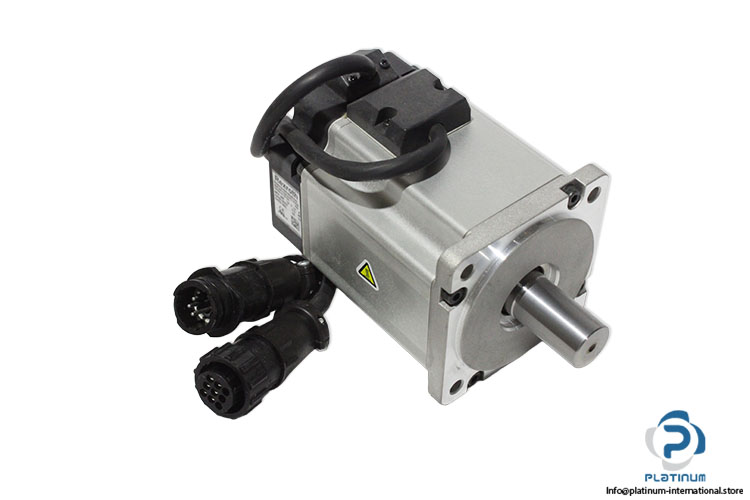

Rexroth MSM041B-0300-NN-M0-CH0 Servomotor
Новинка
В наличии1 единицаГотово к отправке
Bosch Rexroth Synchronous Servomotor Bosch Rexroth MSM041B-0300-NN-M0-CH0 synchronous servomotor with 0.75 kW power, 3000 rpm rated speed, 2.40 Nm standstill torque, optical multi-turn encoder, IP54 protection, and M17 circular connector. Designed for precision industrial automation and motion control applications.
ACAutomationBoschControlDriveEncoderHighIndustrialMotionmotorMultiOpticalPrecisionRexrothServoServomotorSpeedSynchronousTurn
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

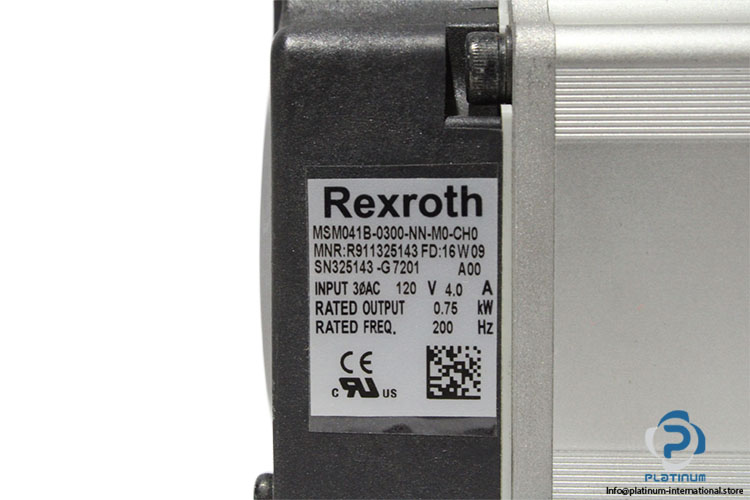

| MNR | R911325143 |
| FD | 16W09 |
| SN | 325143-G 7201 A00 |
| Input voltage | 120 vac |
| Rated current | 4 A |
| Rated power | 0.75 Kw |
| Rated frequency | 200 hz |
| Rated Speed | 3000 rpm |
| Continuous torque at standstill 60 K | 2.40 Nm |
| Continuous current at standstill 60 K | 4.00 A |
| Maximum current Imax(rms) | 12.00 A |
| Maximum torque Mmax | 7.10 Nm |
| Torque constant at 20 °C 1) | 0.64 Nm/A |
| Thermal class | B |
| Duty | S1 |
| Ambient temp | 0 to 40 °c |
| Cooling Mode | Natural convection |
| holding brake | without holding brake |
| Shaft | Plain shaft without shaft sealing ring |
| Shaft diameter [mm] | 19 |
| International protection code | IP54 |
| Encoder design | Optical encoder, Multi-turn encoder |

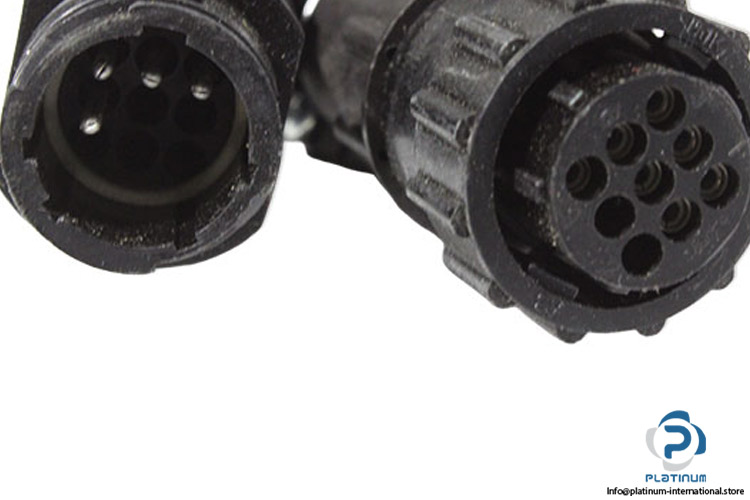

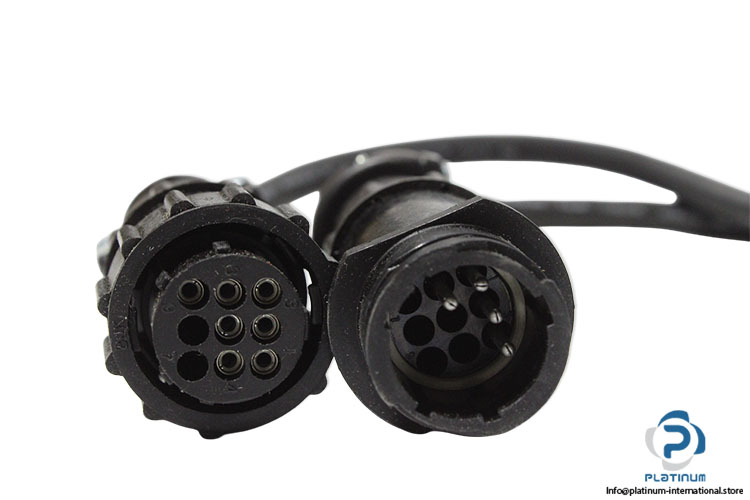

| electrical connection | Cable TAIL, circular connector M17 |
| Stock key | jo-004 |
| Condition | New |
| SKU | 1096904 |
| Weight | 2,35 |
