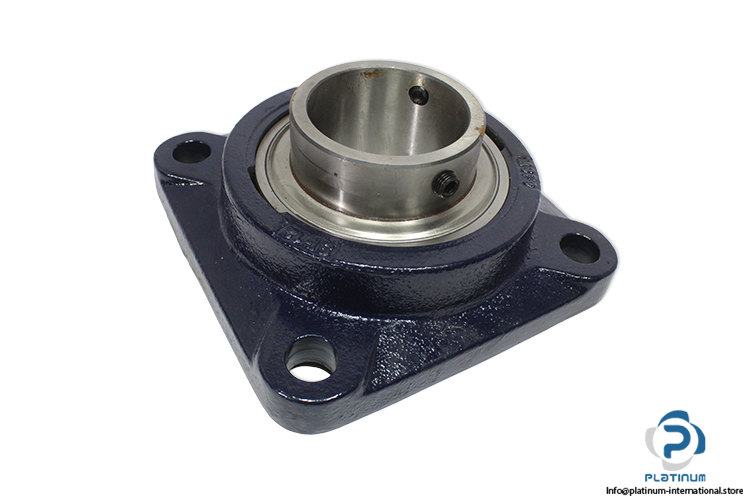

RHP SF75 Four-Bolt Square Flange Unit
Новинка
В наличии2 единицыГотово к отправке
Four-Bolt Flange Unit RHP SF75 Four-Bolt Square Flange Unit features a 75 mm shaft diameter, high load capacity up to 66000 N, and durable cast iron housing, designed for reliable industrial mounting applications.
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

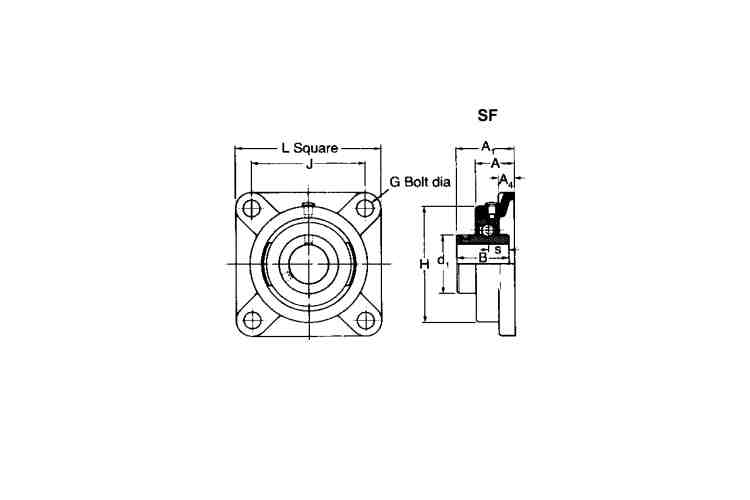

| Bearing No. | 1075-75G |
| Housing No. | MSF9 |
| Shaft diameter d | 75 mm |
| Overall length L | 196,5 mm |
| H | 158,5 mm |
| J | 152,40 mm |
| G | 20 mm |
| A | 51,3 mm |
| B | 77,77 mm |
| ISO load ratings dynamic | 66000 N |
| ISO load ratings Static | 49300 N |
| Speed | max. 2300 rev/min |
| Mounting | Four-Bolt Flange |
| Material, housing | Cast iron |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097092 |
| Weight | 6,34 |
