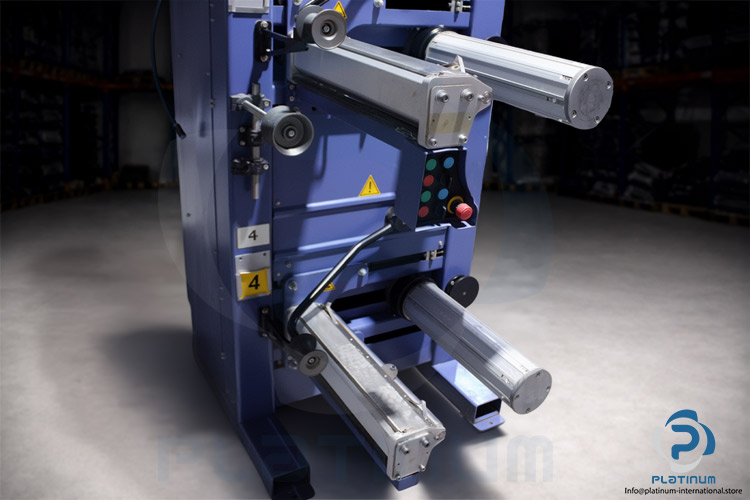

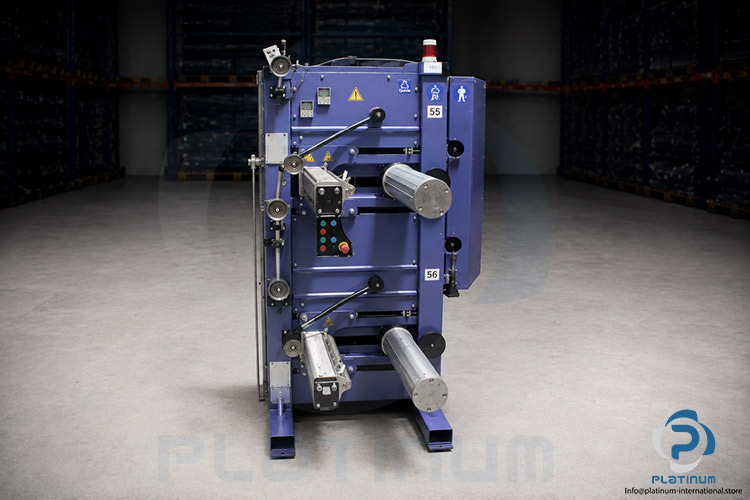

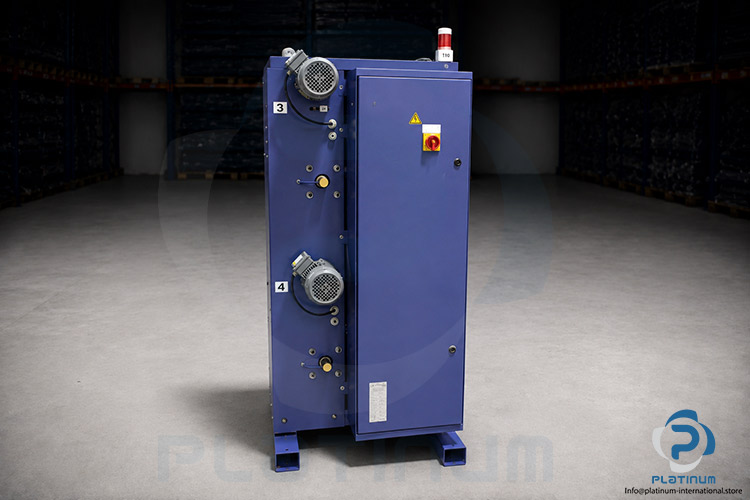

Sahm 810XE Large Package Winder
Б/у
В наличии10 единицыГотово к отправке
Package Winder Industrial SAHM package winder designed for reliable winding operations with 3 × 400 V power supply, 24 VDC control voltage, and stable performance for continuous production environments.
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

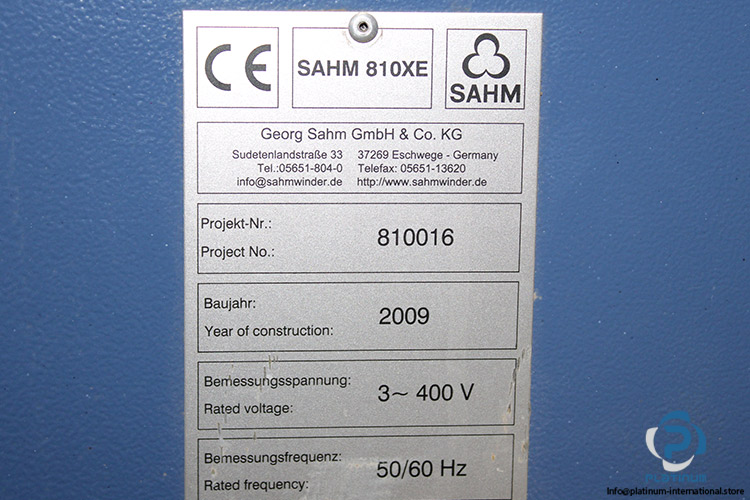

| Project No | 810016 |

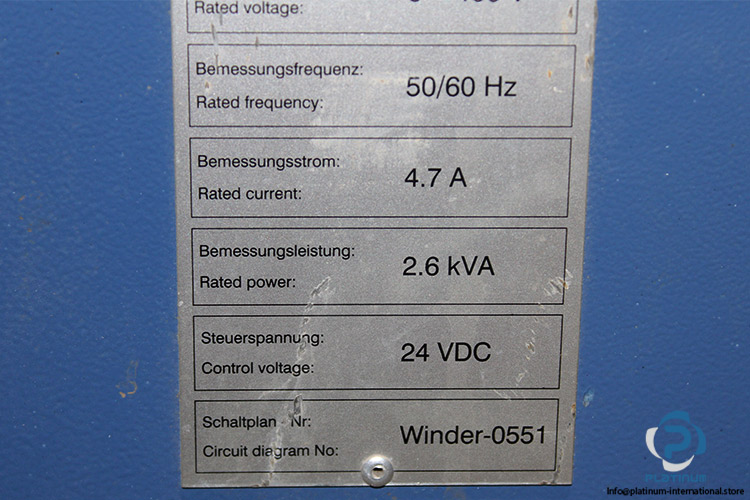

| Rated voltage | 3 x 400 V |
| Rated frequency | 50/60 Hz |
| Rated current | 4.7 A |
| Rated power | 2.6 kVA |
| Control voltage | 24 VDC |
| Circuit diagram No | Winder-0551 |
| Drive | Frequency-controlled |
| Frame | 1 or 2 decks |
| Titer | 3 K-18 K |
| Tube inside diameter | 144 mm |
| Max. tube length | 550 mm |
| Traverse length | 500 mm |
| Winding speed | 50-150 m/min, 70-400 m/min. |
| Max. package diameter | 600 mm |

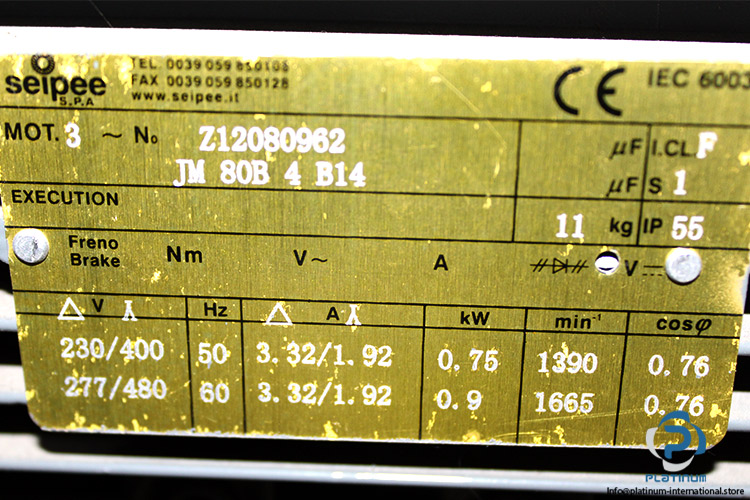

| Attached with | SEIPEE Z12080962 ELECTRIC MOTOR |
| MNR | JM 80B 4 B14 |
| Rated Power [kW] | 0.75/0.9 |
| Rated Voltage [V] | 230-400/277-480 |
| Rated Current [A] | 3.32/1.92 |
| Rated Speed [min-1] | 1390/ 1665 |
| Frequency [Hz] | 50/60 |
| Protection Class [IP] | 55 |
| Thermal Class | F |
| Duty | S1 |
| Power Factor [cos] | 0.76 |
| Standard | IEC 6003 |

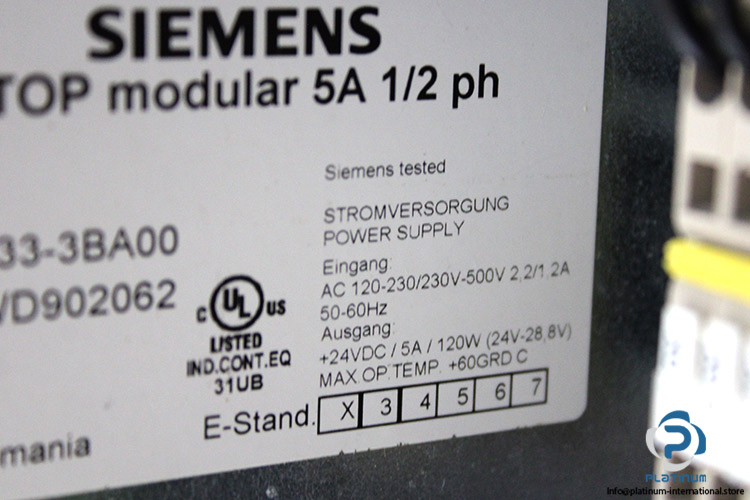

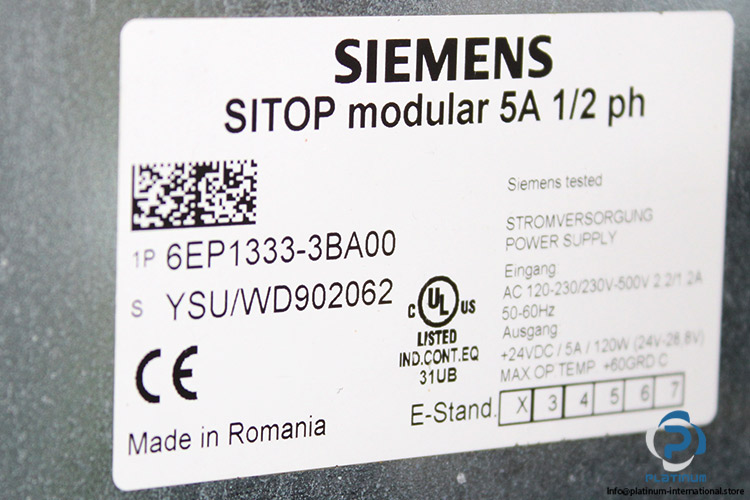

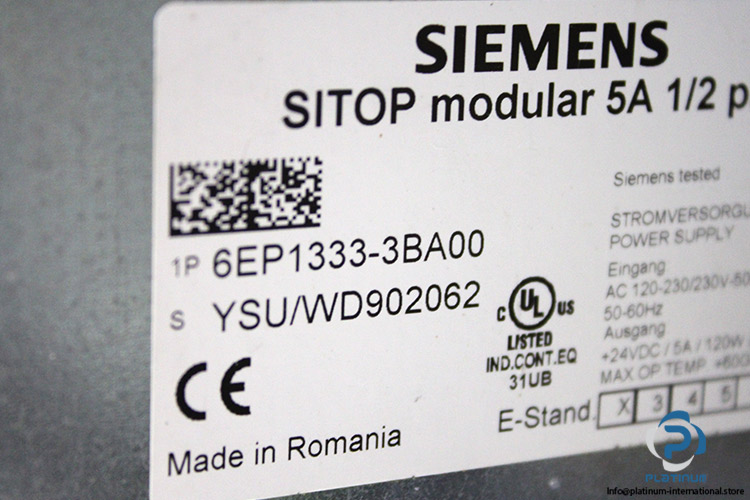

| Attached with 2 | SIEMENS 6EP1333-3BA00 POWER SUPPLY Module |
| Code | YSU/WD902062 |
| Rated Input | 120 / 230 / 230 / 500 V |
| Line Frequency | 50/60 Hz |
| Output | Regulated, Isolated DC Voltage |
| Rated Output Voltage | 24 V DC (Adjustable 24 / 28.8 V) |
| Output Active Power | Typical 120W |
| MAX of.TEMP. | +60 C |
| stand | E-Stand. |

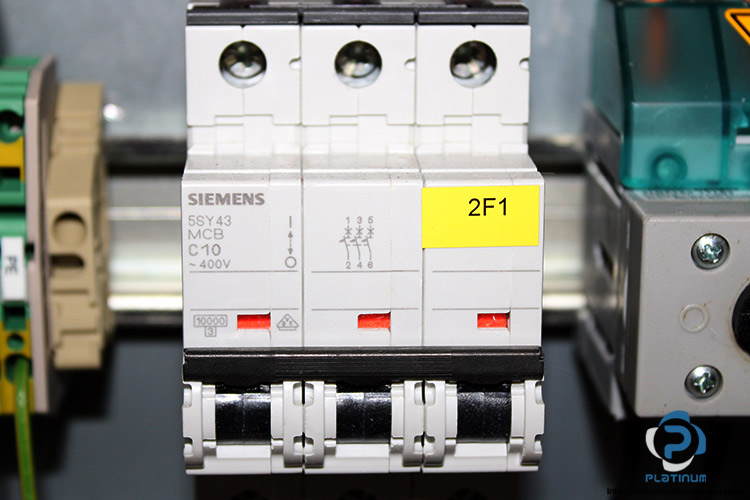

| Attached with 3 | SIEMENS 5SY43 MCBC10 Miniature Circuit Breaker |
| Voltage, Miniature Circuit Breaker | 400 V AC |
| No. of poles, Miniature Circuit Breaker | 3 |

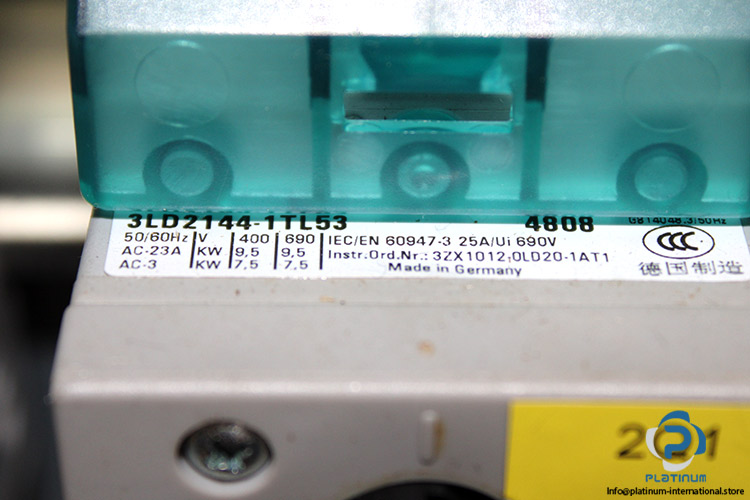

| Attached with 4 | Siemens 3LD2144-1TL53 Switch disconnector |
| Standard, Switch disconnector | IEC/EN 60947-3 25A/Ui 690V |
| Instr.Ord.Nr . Switch disconnector | 3ZX1012,0LD20-1AT1 |
| product brand name , Switch disconnector | SENTRON |
| product designation, Switch disconnector | 3LD Switch disconnector |
| design of the product | EMERGENCY-STOP |
| switch display version / for switch position indicator manual operation | 1 ON - 0 OFF |
| design of the actuating element, Switch disconnector | Short rotary knob |
| design of handle , Switch disconnector | rotary operating mechanism, red/yellow |
| Number of Poles, Switch disconnector | 4-pole |
| Operating Power (at AC-23A, 400 V) | 9.5 kW |

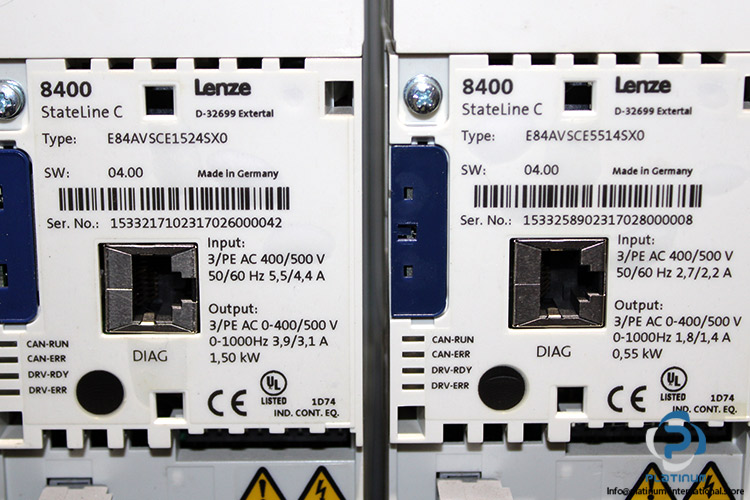

| Attached with 5 | Lenze E84AVSCE5514SX0 Frequency Inverter |
| series | 8400 StateLine C |
| SW, Frequency Inverter | 04.00 |
| Voltage, Input, Frequency Inverter | Single Phase 400/500 V AC |
| Frequency, Input, Frequency Inverter | 50/60 Hz |
| Rated Current, Input, Frequency Inverter | 2.7/2.2 A |
| Voltage, Output, Frequency Inverter | 3 Phase 0…400/500 V AC |
| Frequency, Output, Frequency Inverter | 0…1000 Hz |
| Rated Current, Output, Frequency Inverter | 1.8/1.4 A |
| Power, Frequency Inverter | 0.55 kW |

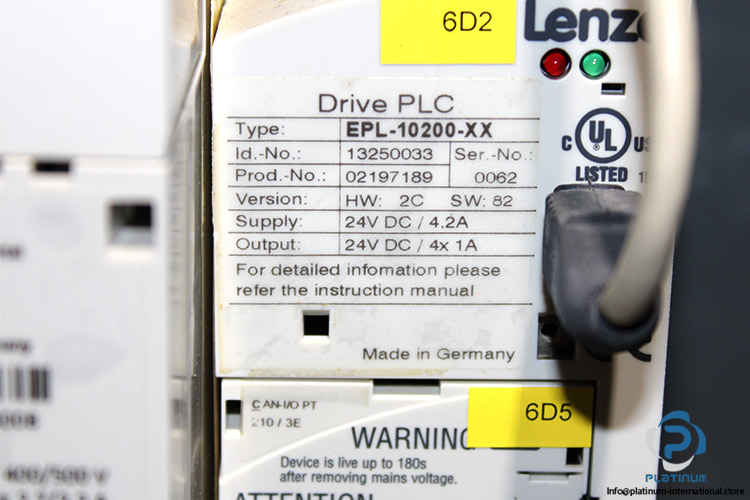

| Attached with 6 | Lenze EPL-10200-XX Drive PLC |
| Id .- No, Drive PLC . | 13250033 |
| Prod .- No, Drive PLC . | 02197189 |
| HW, Drive PLC | 2C |
| SW, Drive PLC | 82 |
| Supply, Drive PLC | 24V DC / 4.2A |
| Output, Drive PLC | 24V DC / 4x 1A |
| Attached with 7 | Lenze E84AVSCE1524SX0 Frequency Inverter |
| series 2 | 8400 StateLine C |
| SW, Frequency Inverter 2 | 04.00 |
| Voltage, Input | Single Phase 400/500 V AC |
| Frequency, Input | 50/60 Hz |
| Rated Current, Input | 5,5/4,4 A |
| Voltage, Output | 3 Phase 0…400/500 V AC |
| Frequency, Output | 0…1000 Hz |
| Rated Current, Output | 3,9/3,1 A |
| Power | 1.50 kW |
| Condition | Used |
| SKU | 1099837 |
| Weight | 589 |
