Schaevitz E 1000 MC Connectivity
МОДУЛЬ ПОДКЛЮЧЕНИЯ LVDT Schaevitz E 1000 MC обеспечивает высококачественную передачу сигнала LVDT с прочным корпусом из нержавеющей стали, поддерживая промышленную работу в широком диапазоне температур.
SCHAEVITZ E 1000 MC CONNECTIVITY MODULE
The Schaevitz E 1000 MC offers reliable LVDT connectivity performance designed to meet industrial demands. Engineered with a durable AISI 400 Series stainless steel housing, this device delivers consistent signal quality and precision for moderate environments. Ideal for general industrial applications and cost-sensitive setups.
Manufacturer: Schaevitz
Type: Connectivity
Model: E 1000 MC

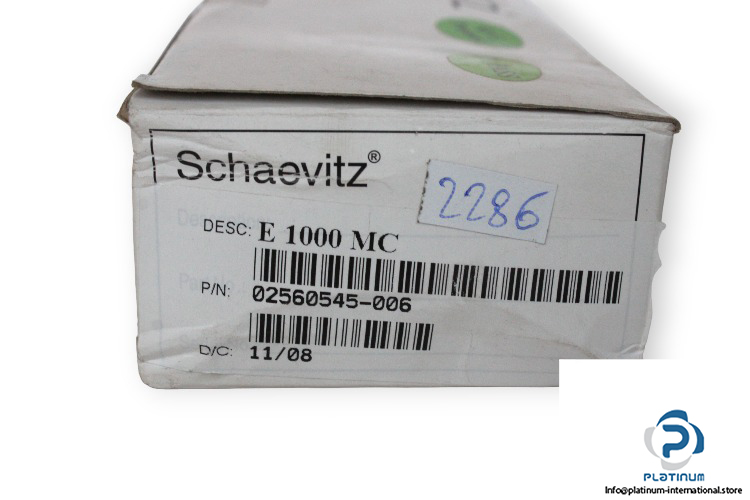

Part No.: 02560545-006
Ref No.: 11/08
Features
Customary LVDT performance
AISI 400 Series stainless steel case
Imperial or metric core
Applications
General industrial
Moderate operating temperature environments
Cost-sensitive applications
| Stroke Range | ±1 [±25.4] |
| Sensitivity | 0.76 V/V/inch |
| Phase Shift | +4° |
| Input Impedance (PRI) | 525 Ω |
| Output Impedance (SEC) | 690 Ω |
| Input Voltage | 3 VRMS |
| Test Input Frequency | 2.5 kHz |
| Housing Material | AISI 400 Series stainless steel |
| Electrical Connection | Six lead-wires, 28 AWG |
| Operating Temperature | -55 / 95°C |
| Dimensions | 179 x 96.5 x 5.59 mm |
