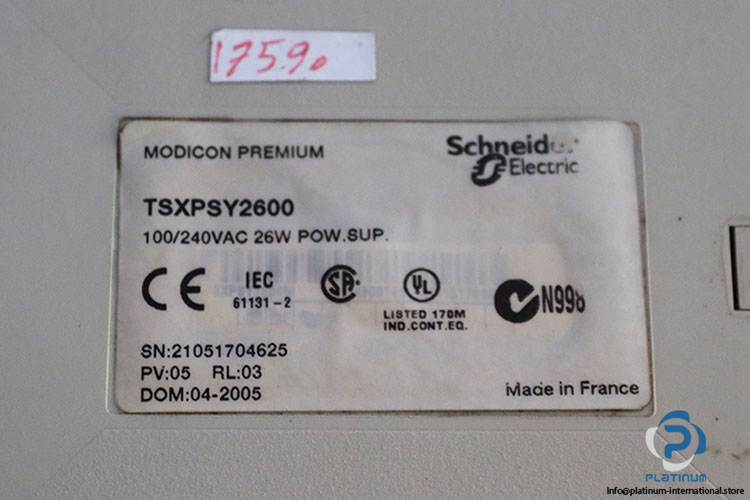

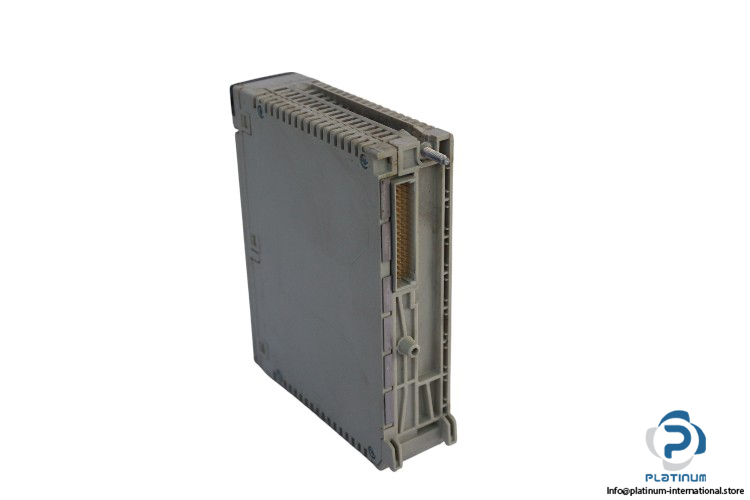

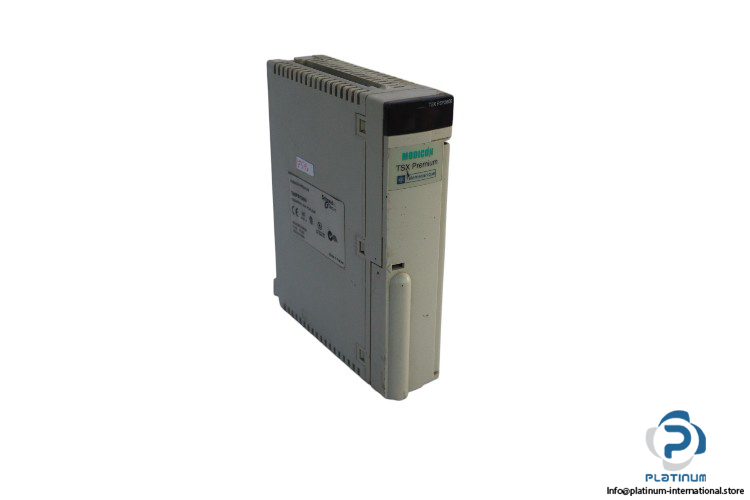

Schneider Electric TSXPSY2600 Power Supply Module

Schneider Electric Power Supply Module TSXPSY2600

The Schneider Electric Power Supply Module TSXPSY2600 is part of the Modicon Premium Automation platform. It provides reliable power supply solutions with a nominal voltage of 100/240 V AC and a total useful power output of 26 W. The module operates efficiently within a temperature range of 0 to 60°C and adheres to the IEC 61131-2 standard. The power supply module offers protection degree IP20 and is compatible with frequencies ranging from 47 to 63 Hz.

🔧 Technical Specifications:

• Manufacturer: Schneider Electric
• Type: Power Supply Module
• Model Number: TSXPSY2600
• Range: Modicon Premium Automation Platform
• Nominal Voltage: 100/240 V AC
• Nominal Input Current: 300 mA (240 V AC), 500 mA (100 V AC)
• Limit Frequency: 47 / 63 Hz
• Total Useful Power: 26 W
• Operating Temperature Range: 0 / 60 °C
• Standard: IEC 61131-2
• Protection Degree: IP20
