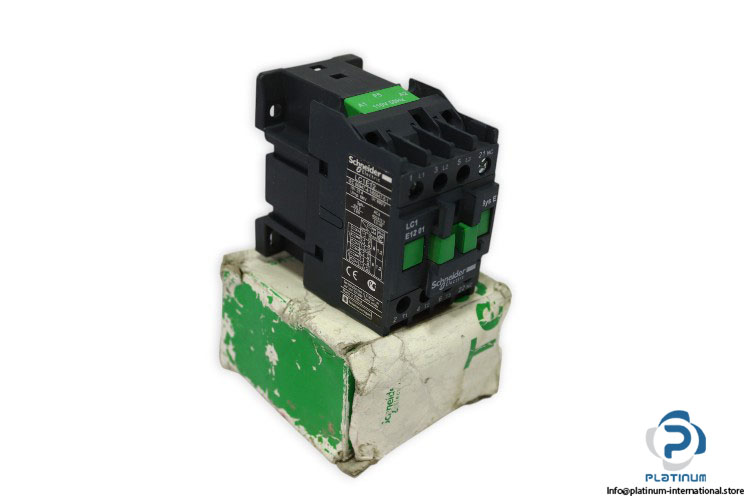

Schneider LC1E1201F5 Contactor
Новинка
В наличии1 единицаГотово к отправке
CONTACTOR
Schneider LC1E1201F5 from the Easy TeSys range is a 3‘pole contactor with a 110 V AC coil, AC‘3 rated 12 A up to 440 V, and Ui 690 V. Compact 74 × 45 × 80 mm design with 1 NC auxiliary for reliable motor and power circuit control.11“10122533‘Pole690aACAC‘3eAC1AC3AuxiliarycoilContactorcontacts.CurreEasyInsulationLC1ELC1E1201F5MainNCNOoperationalRatedSchneiderTeSysThermalUEUiVvoltage
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

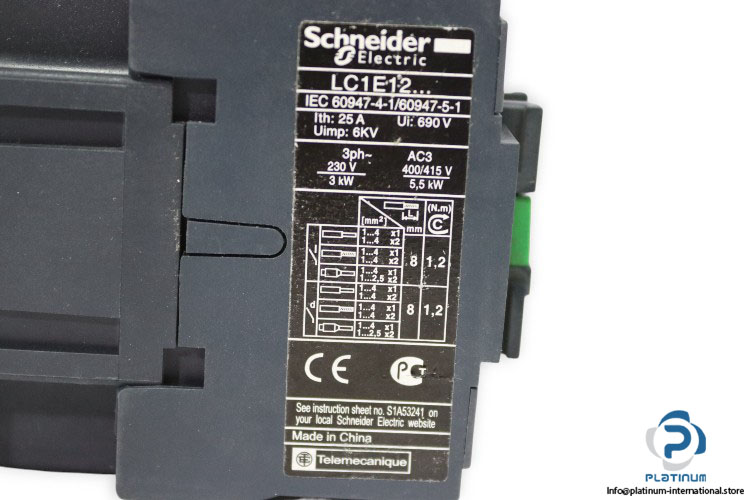

SCHNEIDER LC1E1201F5 CONTACTOR
A compact 3‘pole contactor from the Easy TeSys range, the LC1E1201F5 features a 110 V AC control coil and robust AC‘3 performance for reliable motor switching. Designed for operational voltages up to 690 V AC, it delivers dependable service in industrial control panels.
Manufacturer: SCHNEIDER
Type: Contactor
Model: LC1E1201F5

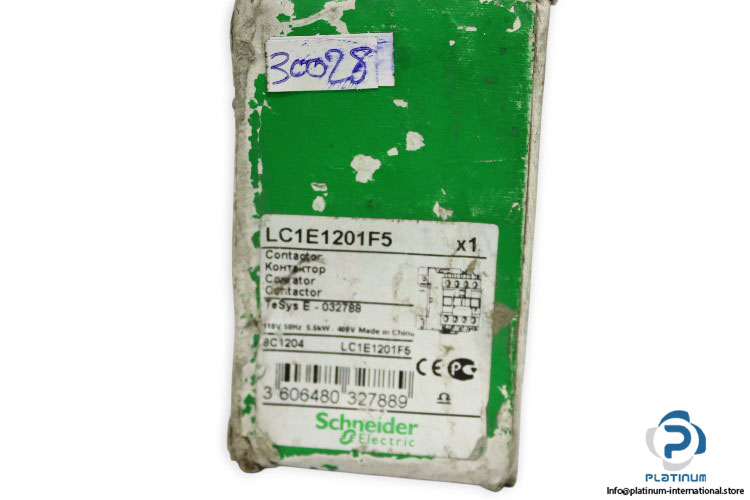

SN: 3606480327889
[Ie] Rated Operational Current (Power Circuit):
12 A (at < 55 °C) at ‰¤ 440 V AC, AC‘3
12 A (at < 55 °C) at ‰¤ 440 V AC, AC‘3e
25 A (at < 55 °C) at ‰¤ 440 V AC, AC‘1
Motor Power (kW):
3 kW at 220/230 V AC, 50/60 Hz
5.5 kW at 380/400 V AC, 50/60 Hz
5.5 kW at 415/440 V AC, 50/60 Hz
| Range | Easy TeSys |
| Device Short Name | LC1E |
| Poles Description | 3P |
| [Ue] Rated Operational Voltage | Power circuit ‰¤ 690 V AC, 50/60 Hz |

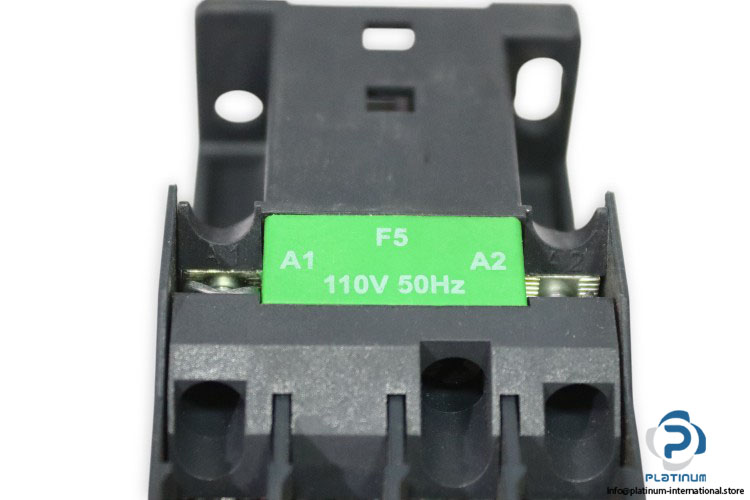

| [Uc] Control Circuit Voltage | 110 V AC, 50 Hz |

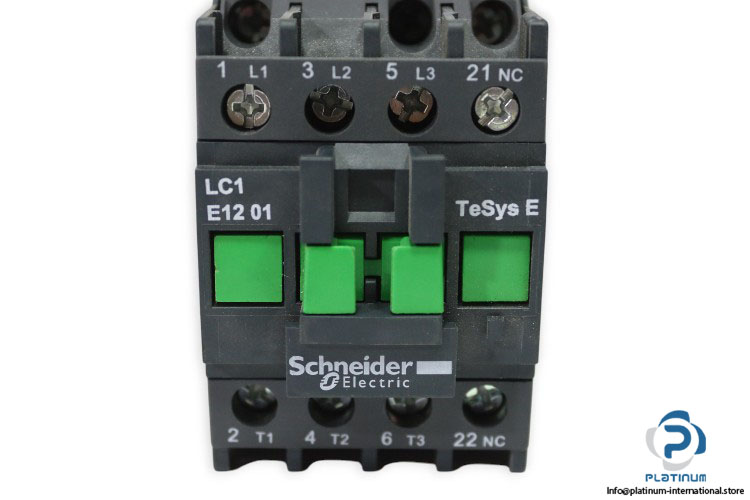

| Pole Contact Composition | 3 NO |
| [Ith] Conventional Free Air Thermal Current | 25 A (at 55 °C), power circuit |
| [Ui] Rated Insulation Voltage | 690 V (IEC 60947‘4‘1) |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Tightening Torque | Power circuit 1.2 N·m; Control circuit 1.2 N·m |
| Auxiliary Contact Composition | 1 NC |
| Operating Temperature | ˆ’5 to 55 °C |
| Dimensions (H × W × D) | 74 × 45 × 80 mm |
