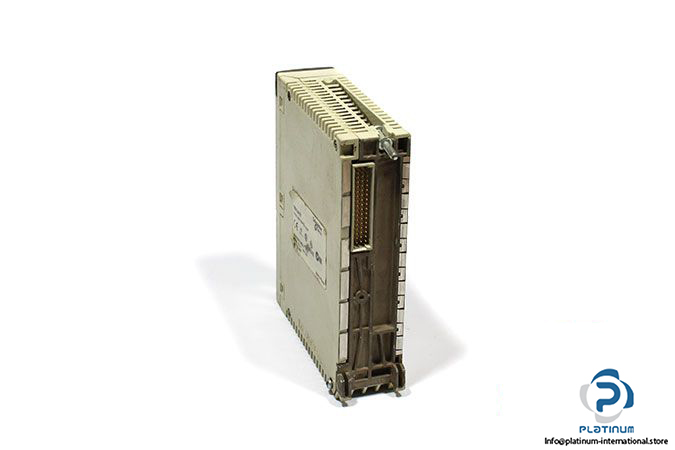

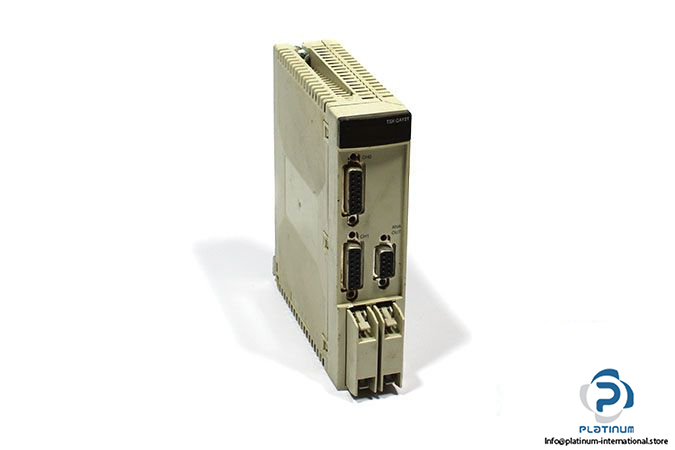

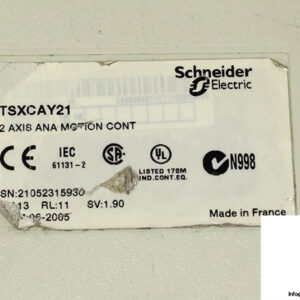

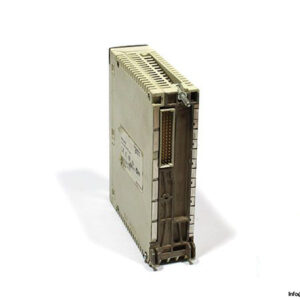

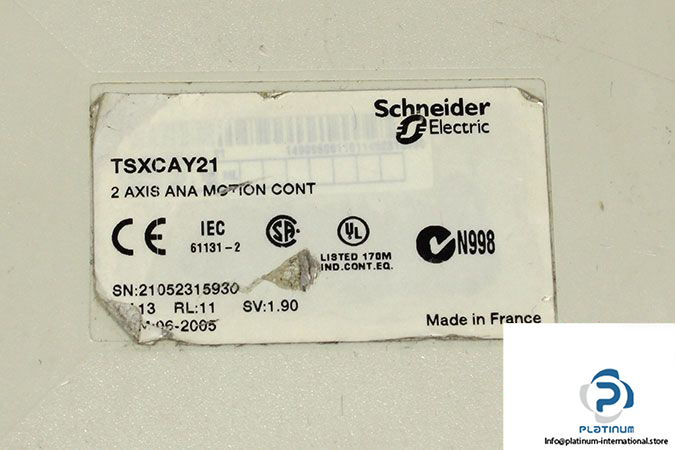

Schneider TSXCAY21 Motion Control Module

Manufacturer: Schneider Electric

Type: Motion Control Module

Model: TSXCAY21



For: Servomotors

Analogue Output Range: +/- 10…24 V

Power Dissipation: 7.2…11.5 W

Analogue Output Resolution: 13 bits + sign

Input Voltage

• 24 V 8 mA auxiliary input
• 24 V 8 mA servo drive control input
• 5 V 18 mA counter input

Input Impedance

• 270 Ohm for counter input
• 3000 Ohm for auxiliary input
• 3000 Ohm for servo drive control input

Output Voltage

• 24 V DC reflex output:
• 24 V DC servo drive validation output

Nominal Output Current: 0.5 A

Input Logic: Positive

Acceleration Time: 8 ms … 10 s

I/O Modularity: 2 Axes

Clock Frequency: 200 kHz

Operating Temperature: 0…60 °C

Dimensions: 139 x 150 x 36 mm

Weight: 0.46 kg
