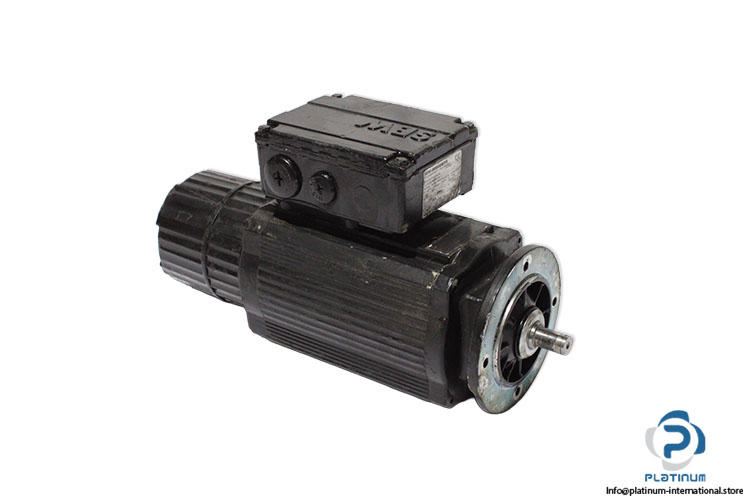

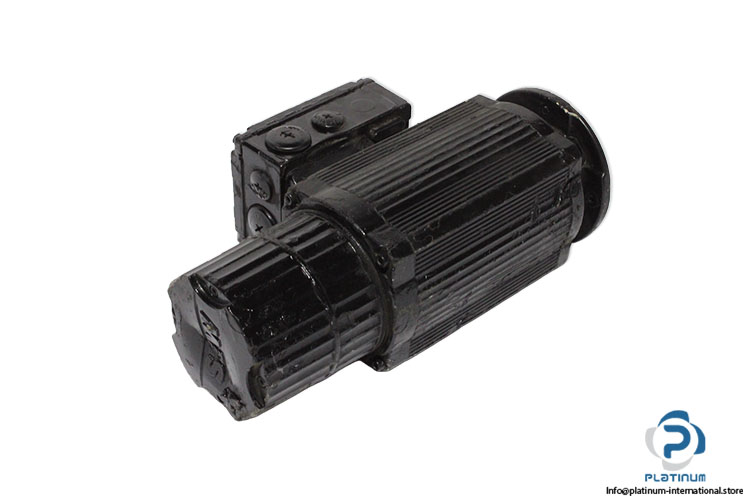

SEW CFM71M/TF/RH1M/KK Synchronous Servomotor
Б/у
В наличии1 единицаГотово к отправке
Synchronous Servomotor The SEW CFM71M/TF/RH1M/KK is a 400 V synchronous servomotor with 3000 rpm rated speed and 6.50 Nm standstill torque, designed for precise industrial motion control.
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

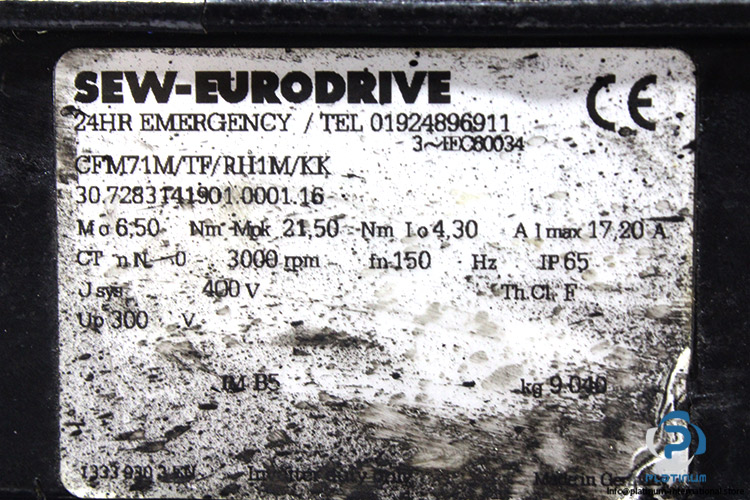

| Part No. | 30.7283141901.0001.16 |
| Transaction no. | 72831419 |
| Pos. no. | 100 |
| No. of main groups | 1 |
| motor speed [r/min] | 3000 |
| Mounting position | B5 |
| Rated speed nN [rpm] | 3000 |
| Standstill torque M0 [Nm] | 6,50 |
| Max. limit torque Mpk [Nm] | 21,50 |
| I0 standstill current [A] | 4,30 |
| Max. permitt. current Imax [A] | 17,20 |
| Cyclic duration factor S1-S10 | S1 |
| Motor voltage [V] | 400 |
| Max. permitted frequency [Hz] | 150 |
| Thermal class/Enclosure[IP] | F / 65 |
| Ambient temperature min. [°C] | -20 |
| Ambient temperature max. [°C] | 40 |
| Connection | Terminal box |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1100846 |
| Weight | 8 |
