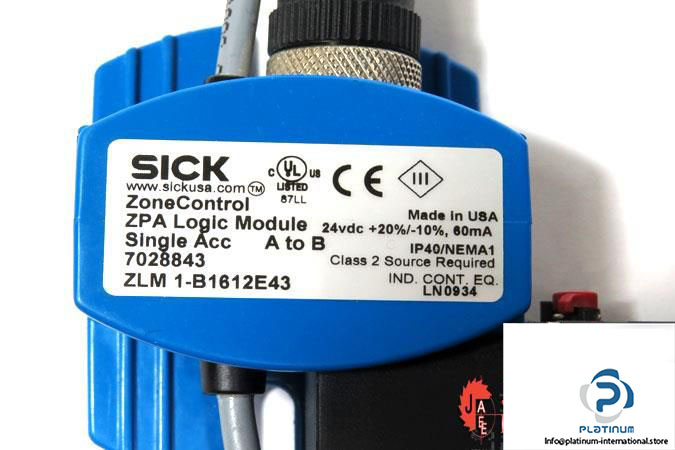

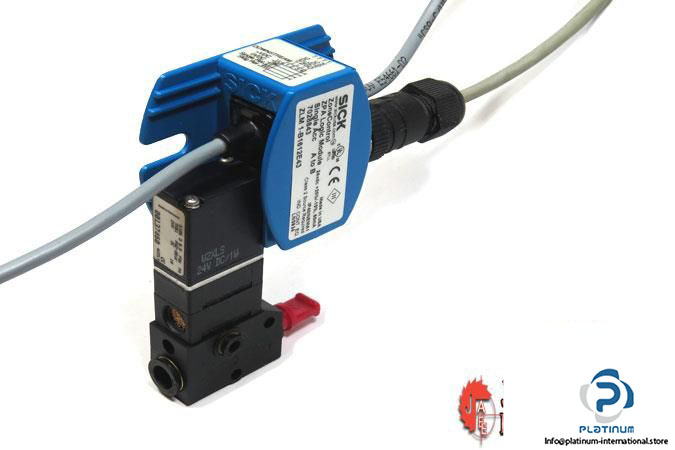

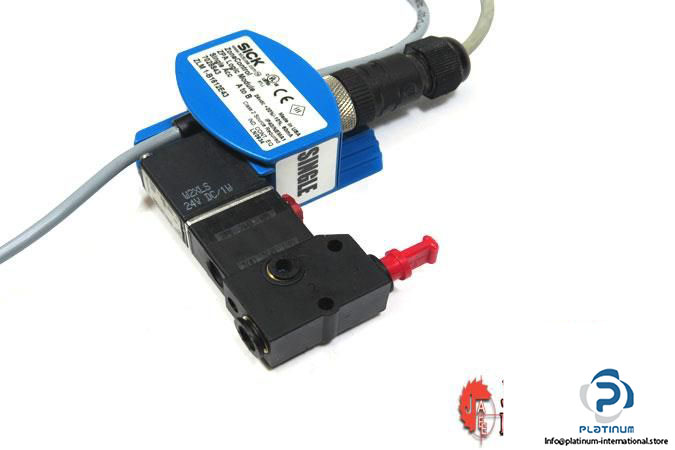

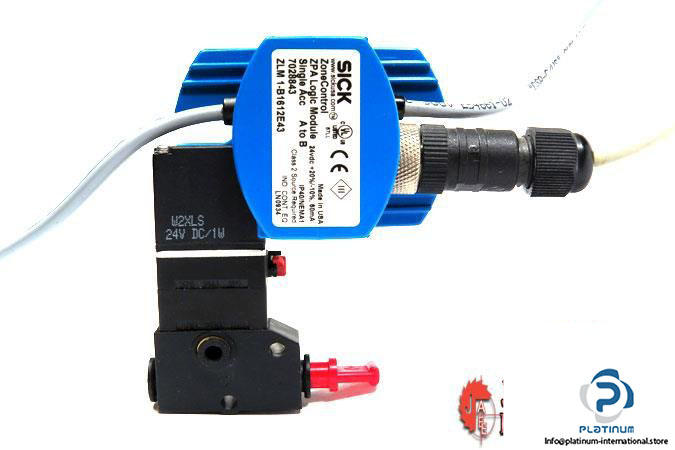

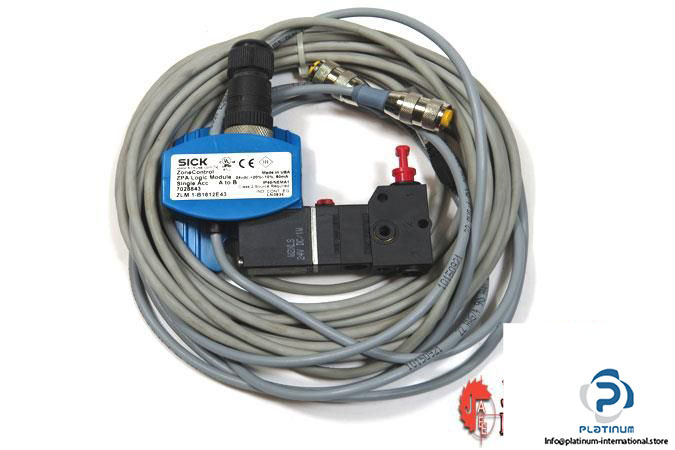

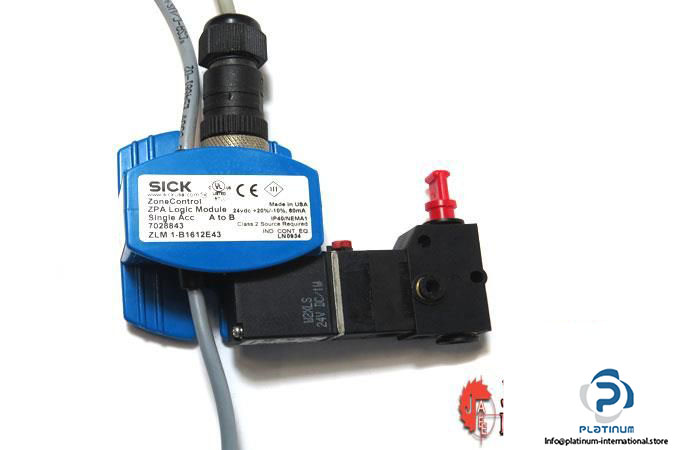

Sick ZLM1-B1612E43 Multi Task Zone Control

Manufacturer: SICK

Type: MULTI TASK ZONE CONTROL

Model: ZLM1-B1612E43

Part No.: 7028843

Actuator: Pneumatic, valve on board

Max. Number of sensors (When powered from the end of the IR daisy chain): Approx. 30

Max. Number of sensors (When powered from center of the IR daisy chain): Approx. 50

Logical principle of operation: Single accumulation

Type of Release: Single release, block (slug) release

Supply voltage: ≥ 21.6 V DC

Ripple: ≤ 5 V_ss

Power consumption (Without load and valve re-energized): 60 mA

Output current: ≤ 100 mA

Switching output: PNP

Signal voltage PNP High/Low: Approx. VS – 0.5 V / 0 V

Design solenoid valve: 3/2-way valve

Coil ratings: 24 V DC 1 W

Air flow rate: Approx. 20 Nl/min

Ventilation capacity: Approx. 130 Nl/min

Connection type: Cable with receptacle, M12, 4-pin, 1.1 m

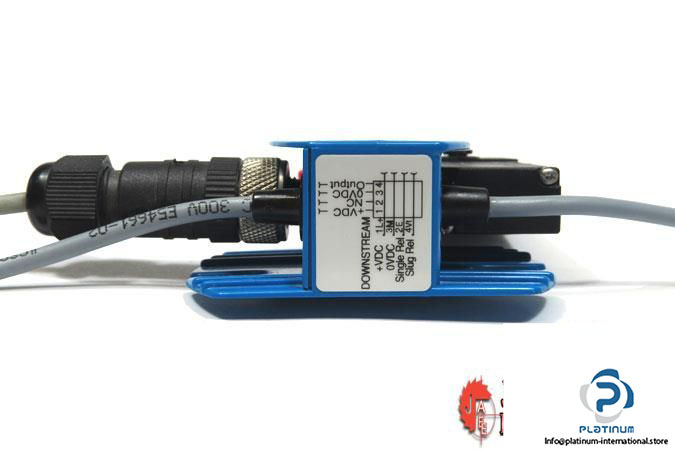

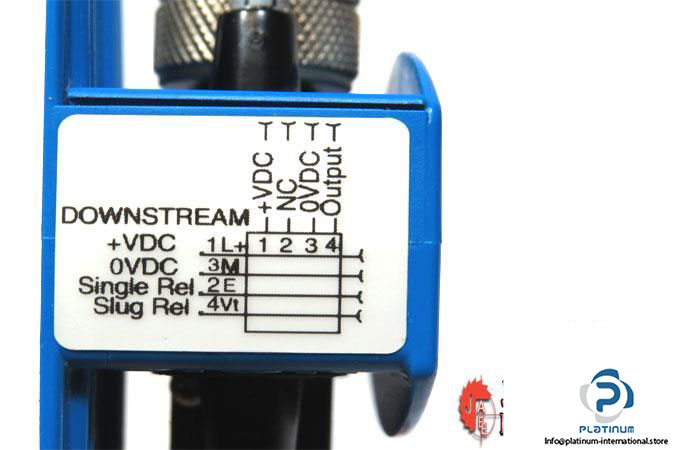

Connection type for daisy chain: Cable with M12 male Connector, 4-pin

Connection type solenoid valve:  Compressed air 2 x 8 mm diameter, output line 4 mm diameter

Ambient operating temperature: -10 … +55 °C

Operating pressure range: 2 … 8 bar

Protection class: III

Enclosure rating: IP40

Condition: New
