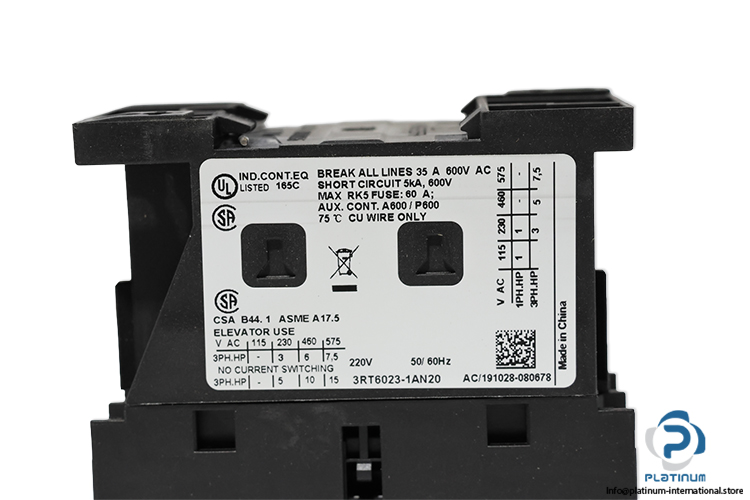

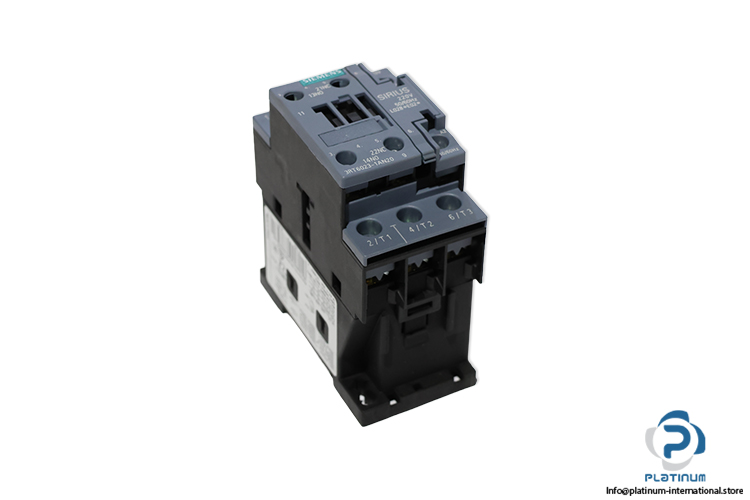

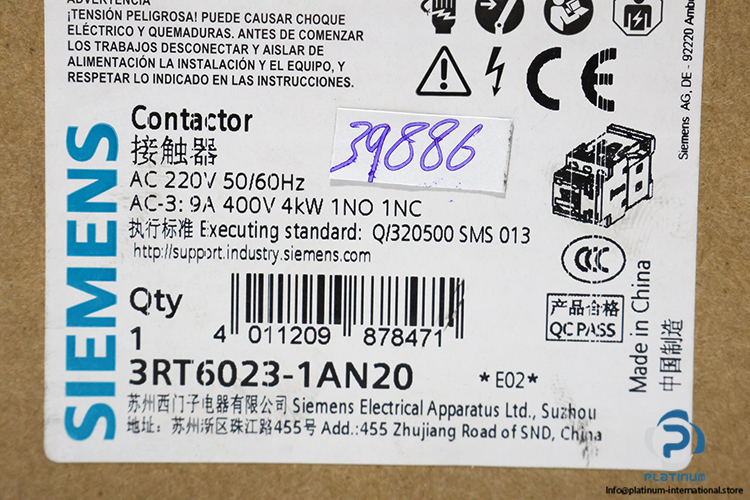

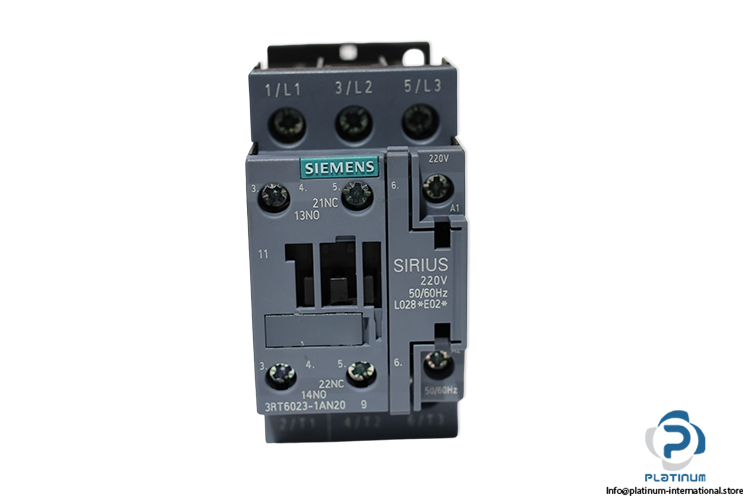

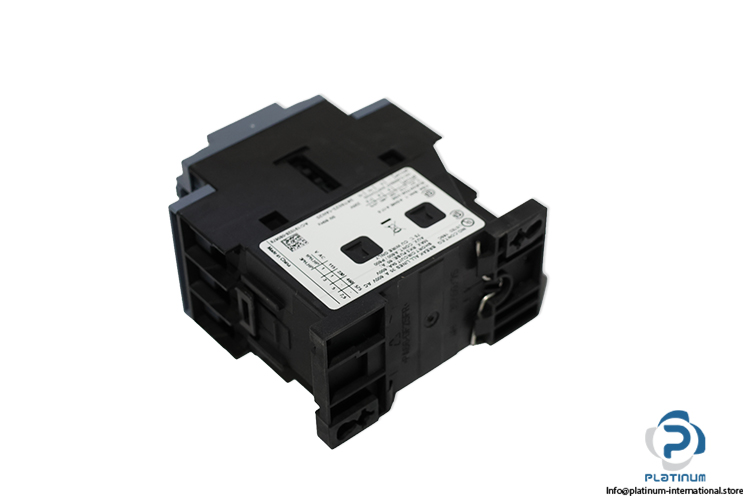

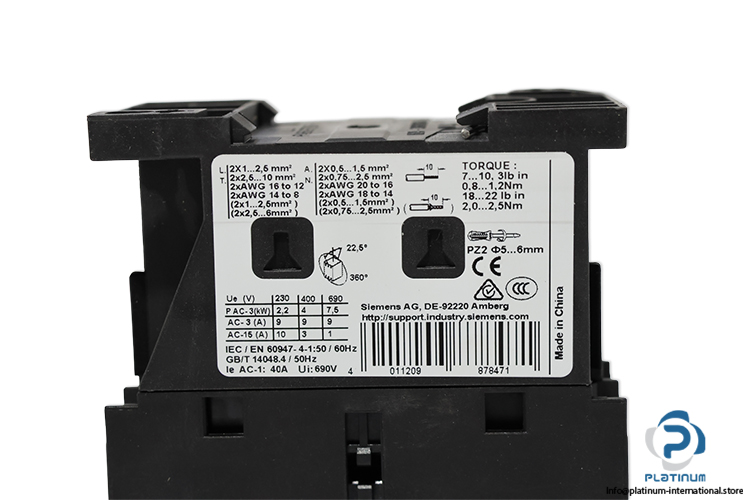

Siemens 3RT6023-1AN20 Contactor
Новинка
В наличии2 единицыГотово к отправке
Contactor The SIEMENS 3RT6023-1AN20 is a SIRIUS 3RT6 3-pole contactor with a 220 V AC coil, 9 A AC-3 current, and 4 kW switching power for industrial control applications.
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества
| Size | S0 |
| Brand Name | SIRIUS 3RT6 |
| Coil Voltage | 220 V AC |
| Rated Operational Voltage Max. | 690 V AC |
| Rated Operational Current AC-3 | 9 A |
| Frequency | 50 … 60 Hz |
| Power Loss | 0.4 W |
| Power AC-3 | 4 kW |
| Poles No. | 3-Pole |
| Auxiliary Contact | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Protection Class | IP20 |
| Temperature | -25 … 60 °C |
| Dimensions | 85 x 45 x 97 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103753 |
| Weight | 0,32 |
