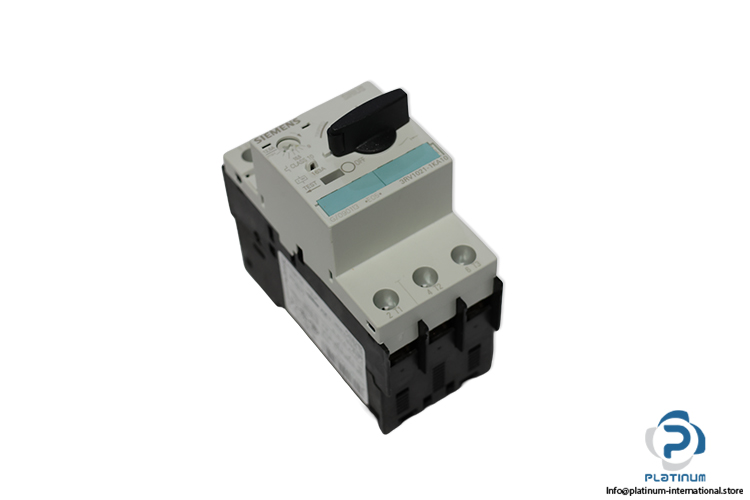

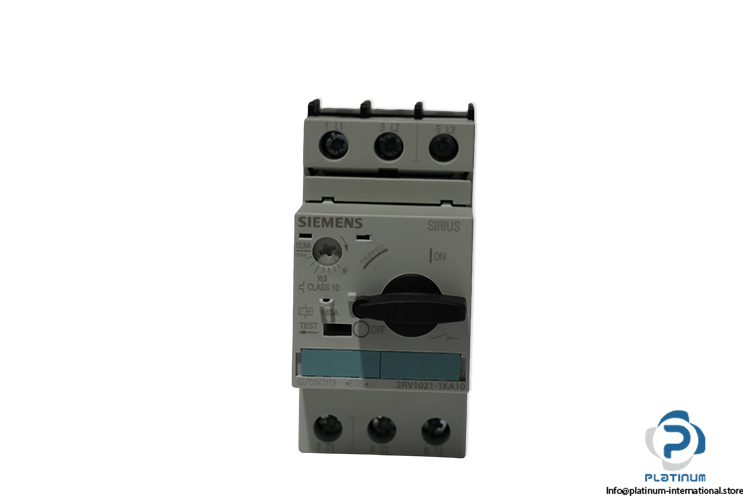

Siemens 3RV1021-1KA10 Circuit Breaker
Новинка
В наличии2 единицыГотово к отправке
Circuit Breaker The SIEMENS 3RV1021-1KA10 is a SIRIUS S0 3-pole circuit breaker with 9–12.5 A adjustable current, designed for reliable industrial motor protection.
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества
| Ord. No. | 3ZX1012-0RV02-1AA1 |
| Brand Name | SIRIUS |
| Size | S0 |
| Used for | Motor Protector |
| Operating Voltage | 690 V AC |
| Operating Current | 12.5 A |
| Short-Circuit Release Current | 10 A |
| Frequency | 50 … 60 Hz |
| Adjustable Current | 9 … 12.5 A |
| Operating Power | 5.5 kW |
| Power Loss | 7 W |
| Poles No. | 3-Poles |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 400AC (100 kA) 690 (6 kA) |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 400AC (100 kA) 690 (3 kA) |
| Protection Class | IP20 |
| Operation Temperature | -20 … 60 °C |
| Dimensions | 97 x 45 x 96 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103751 |
| Weight | 0,31 |
