Siemens 3SE5 112-1QV10 Safety Position Switch
Б/у
В наличии2 единицыГотово к отправке
35,00$
SAFETY POSITION SWITCH
Siemens 3SE5112-1QV10 safety position switch with 24VDC supply, 10A thermal current, and 1 NO + 2 NC slow-action contacts. Compliant with IEC/EN 60947-5-1 and protected to IP66/IP67 standards.1NO24v24VDC2NC3SE5112-1QV1060947-5-1ContactENIECIndustrialIP66IP67LimitMachinePositionSafetySensorSiemensslow-actionSwitch
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

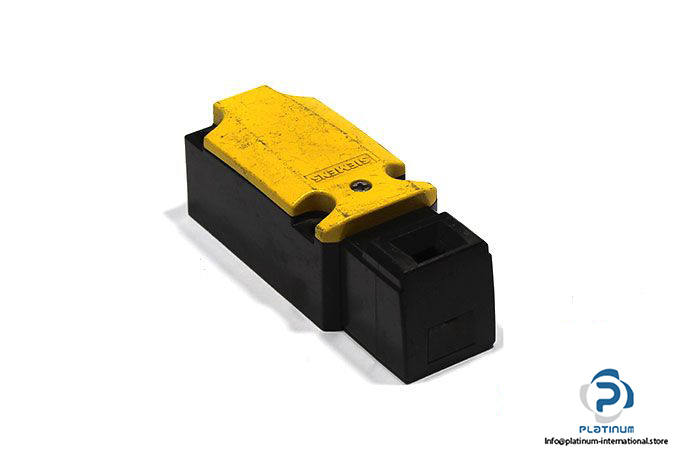

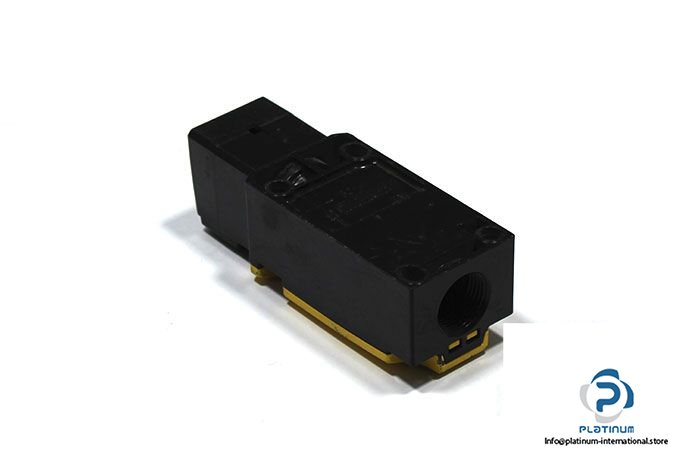

SIEMENS 3SE5112-1QV10 SAFETY POSITION SWITCH
The Siemens 3SE5112-1QV10 is a high-reliability safety position switch designed for industrial safety applications. Built to IEC/EN 60947-5-1 standards, it offers rugged performance with IP66/IP67 protection, slow-action contacts, and dependable electrical insulation for demanding environments.
Manufacturer: Siemens
Type: Safety Position Switch
Model: 3SE5112-1QV10

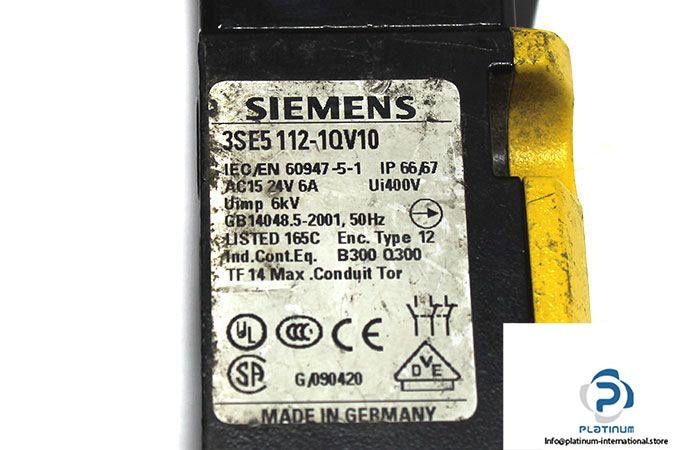

REF NO: G/090420 / GB14048.5-2001
Standard: IEC/EN 60947-5-1
| Thermal Current | 10 A |
| Supply Voltage | 24 VDC |
| Circuit Principle | Slow-action contacts |
| Contact Type | 1 NO + 2 NC |
| Protection Class | IP66 / IP67 |
| Rated Insulation Voltage | 400 V |
| Degree of Pollution | Class 3 |
| Rated Surge Voltage Resistance | 0.8 kV |
| Ambient Operating Temperature | -25 / 60°C |
