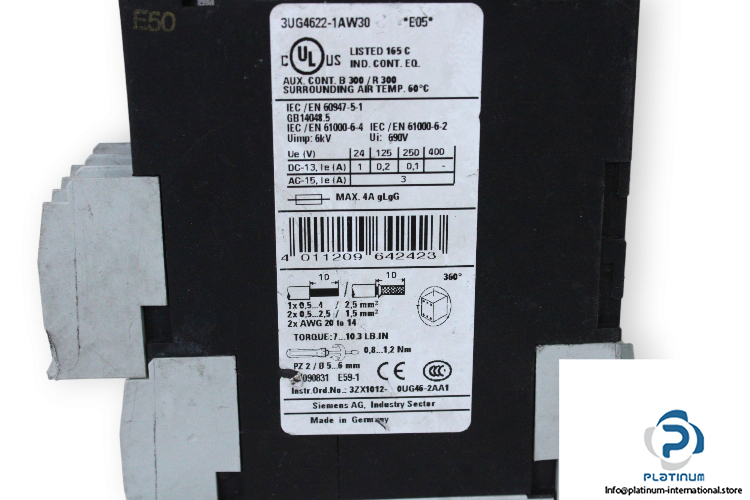

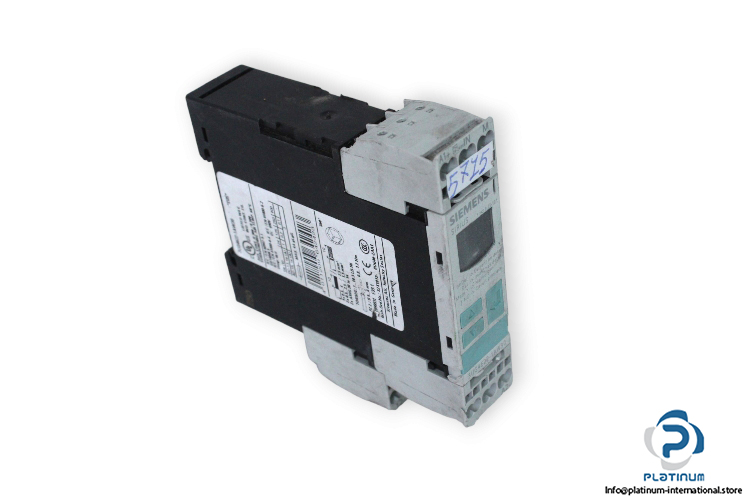

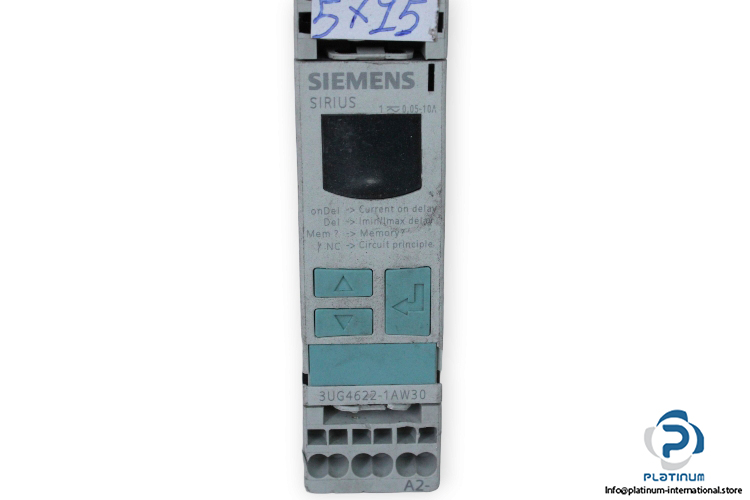

Siemens 3UG4622-1AW30 Digital Monitoring Relay

Manufacture: Siemens
Type: Digital Monitoring Relay
MNR: 3UG4622-1AW30
Family: SIRIUS

Supply voltage: 20.4 … 264 V AC/DC
Operating voltage rated value: 24 … 240 V
Measurable line frequency: 40 … 500 Hz
Measurable current: 0.05 … 15 A
Design of the display: LCD
Rated impulse with stand voltage Uimp: 6 kV
Insulation voltage Ui: 690 V
No. of CO contacts delayed switching: 1
Contacts voltage and current:
DC – 13   24V/1A, 125V/0.2A, 250V/0.1A
AC – 15   24,125,250,400V/3A
Ambient operation temperature: -25 … 60°C
Degree of protection: IP20
Fastening method: Snap-On mounting
Dimensions: 22.5 x 92 x 91 mm
