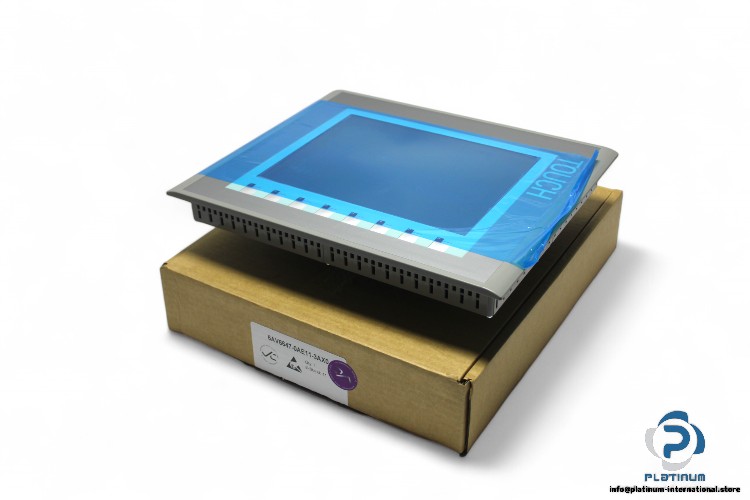

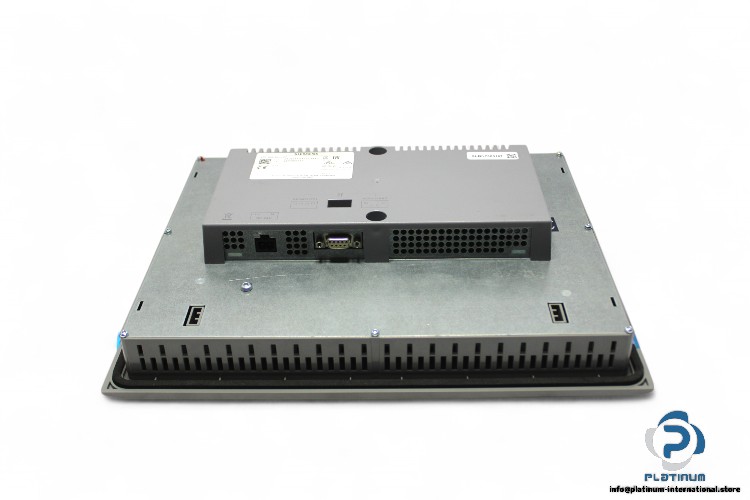

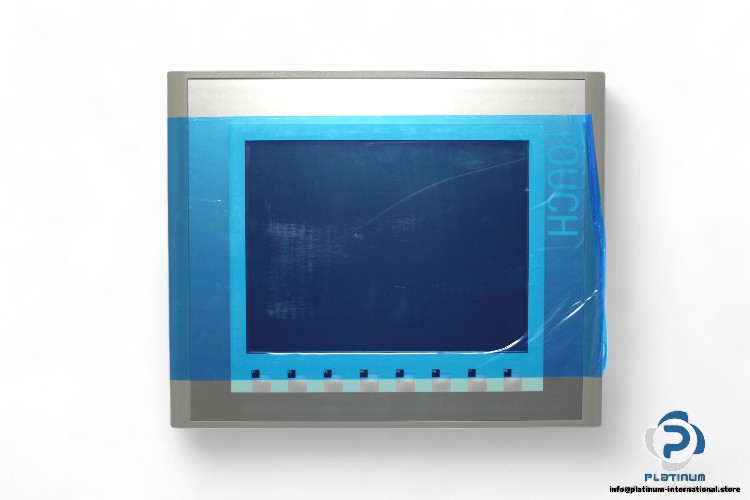

Siemens 6AV6647-0AE11-3AX0 Basic Panel Module
БАЗОВЫЙ ПАНЕЛЬНЫЙ МОДУЛЬ Промышленная HMI-панель с 10,4" TFT-дисплеем, аналогово-резистивным сенсорным экраном и универсальными протоколами связи. Разработана для эффективного контроля и мониторинга с передней защитой по стандарту IP65.
SIEMENS KTP1000 BASIC PANEL MODULE
This high-performance Basic HMI Panel from Siemens is designed for industrial control systems that demand clear visuals, intuitive touch operation, and reliable connectivity. With a 10.4" TFT display and multiple communication interfaces, it is ideal for PROFIBUS and MODBUS environments.
Manufacturer: SIEMENS
Type: BASIC PANEL MODULE
MNR: 6AV6647-0AE11-3AX0
Serial No.: LBN7003167
Ref. Code: SC-BDC46014
| Product Type Designation | KTP1000 Basic color DP |
| Display | TFT |
| Rated Value (DC) | 24 V |
| Permissible Range (DC) | 19.2 “ 28.8 V |
| Current Consumption (Rated) | 0.6 A |
| Power Input | 15 W |
| Processor | RISC 32-bit |
| Memory | Flash, RAM |
| User Data Memory | 2 Mbyte |

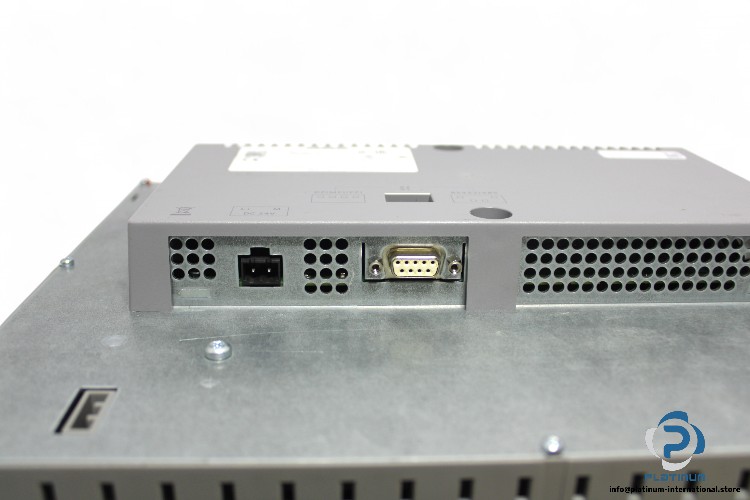

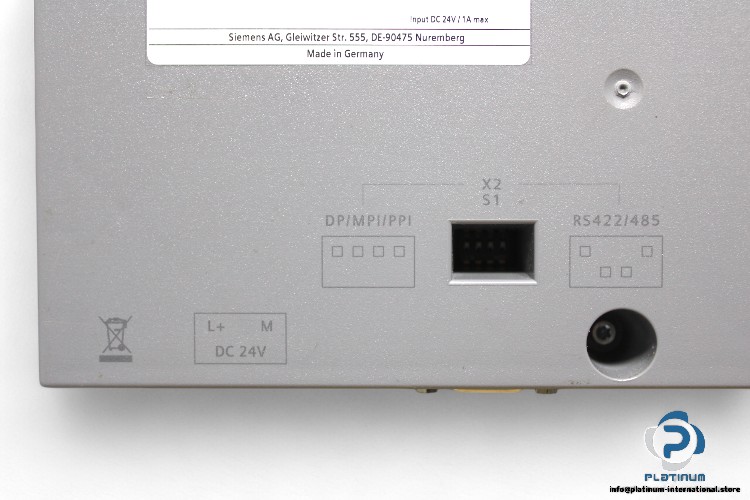

| Interfaces | RS 485, RS 422 |
| Supported Protocols | PROFIBUS, MPI, MODBUS RTU |
| Screen Diagonal | 10.4 in |
| Display Dimensions | 211.2 mm x 158.4 mm |
| Number of Colors | 256 |
| Touch Screen | Yes, Analog-resistive |
| Mounting Position | Vertical |
| Acoustic Feature | Buzzer |
| Clock | Software clock, synchronous |
| Protection Degree | IP65 (front), IP20 (rear) |
| Ambient Temperature Range | 0 / 50 °C |
