Square D PTE 30/180 ON Delay Pneumatic Timer Module
Новинка
В наличии2 единицыГотово к отправке
Timer Module
Durable on-delay pneumatic timer module by SQUARE D with 0.3“30 sec range, 16 A thermal current, and IP20 protection for industrial control applications.
Огромный ассортимент
Глобальная доставка
Экспертная поддержка
Гарантия качества

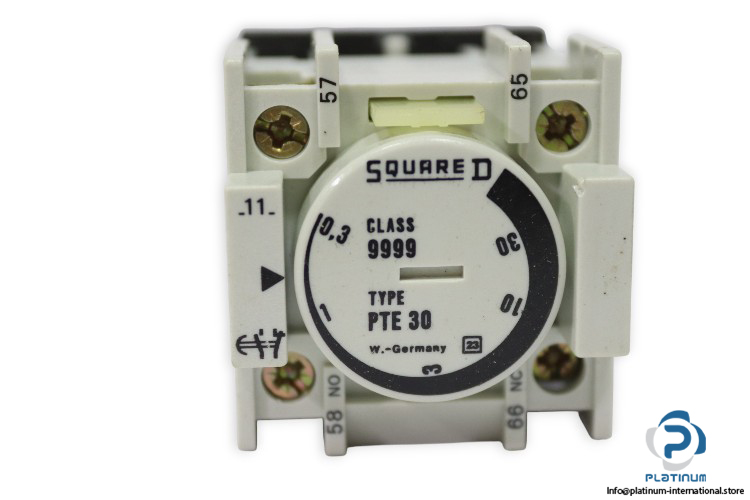

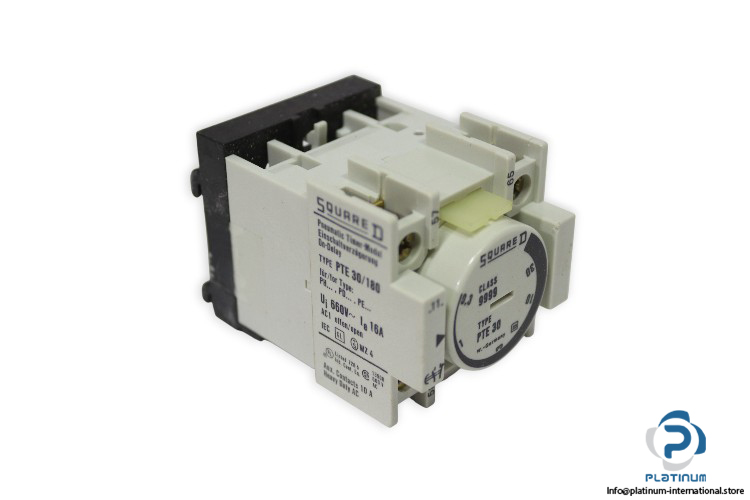

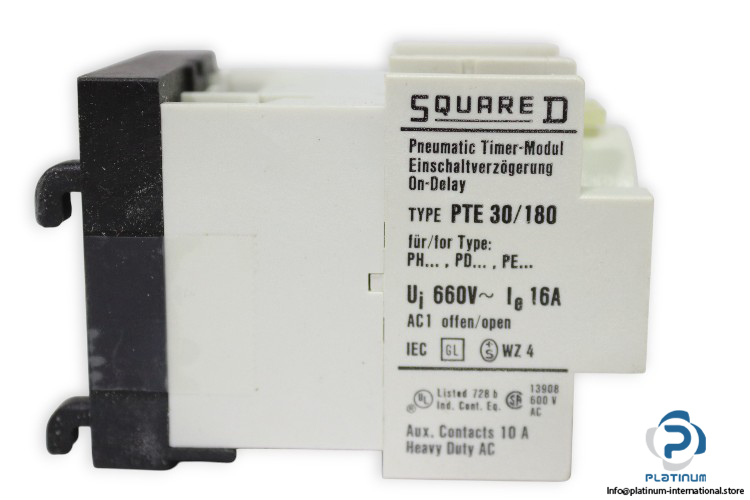

SQUARE D PTE 30 / 180 On Delay Pneumatic Timer Module
The SQUARE D PTE30 is a robust pneumatic timer module designed to deliver precise on-delay timing control in industrial automation systems. Built for reliability and accuracy, it ensures consistent operation even in demanding environments.
Manufacturer: SQUARE D
Type: On Delay Pneumatic Timer Module
Model: PTE 30/180
| Rated Thermal Current (Ith) | 16 A |
| Rated Insulation Voltage (Ui) | 660 V AC |
| Timer Type | On Delay |
| Time Delay Range | 0.3 ... 30 sec |
| Auxiliary Contact | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Contact Current | 10 A |
| Protection Class | IP20 |
| Ambient Temperature | -40 / 70 °C |
