Telemecanique ASI 20MT4IE Modular Interface
Модульный интерфейс Telemecanique ASI 20MT4IE обеспечивает питание 26,5-31,6V DC, 4 дискретных входа и защиту IP20, разработан для бесшовной интеграции и коммуникации в системах промышленной автоматики.

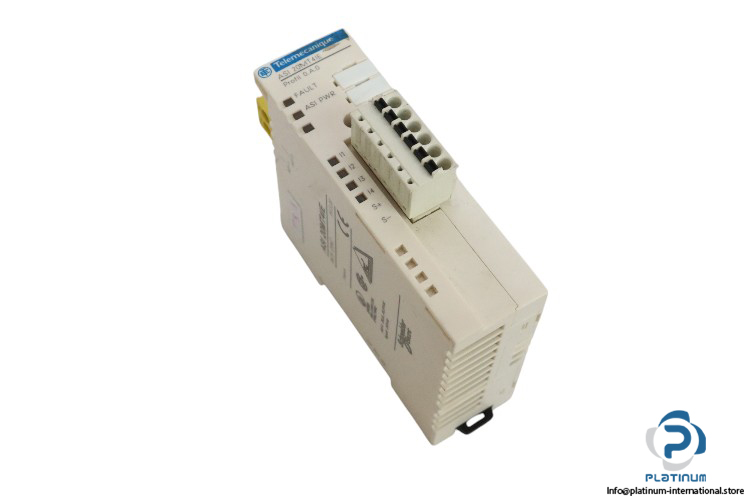

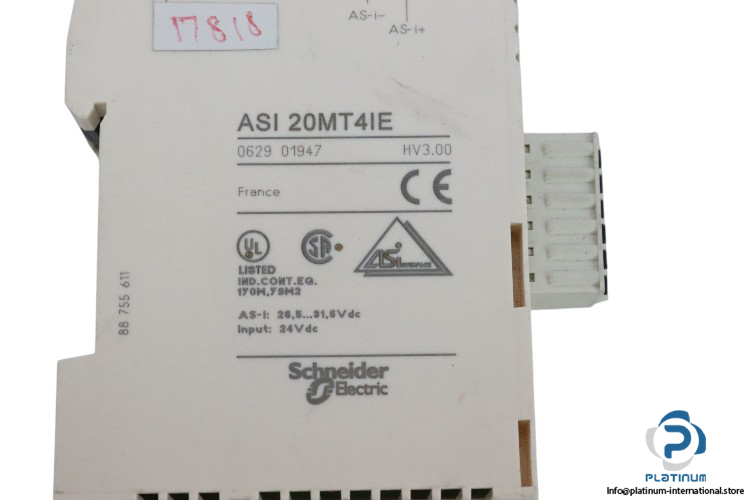

Telemecanique ASI 20MT4IE Modular Interface
The Telemecanique ASI 20MT4IE Modular Interface is a versatile and efficient solution for integrating sensors into an AS-Interface system. With its wide operating voltage range and input compatibility, it offers seamless communication between sensors and the automation system. The interface is designed for industrial use with reliable protection and easy mounting options, making it a valuable component in industrial automation and control systems.
- Manufacturer: Telemecanique
- Type: Modular Interface
- Model: ASI 20MT4IE
Technical Specifications:
- Rated Supply Voltage (Us): 26.5…31.6 V DC
- Maximum Sensor Supply Current: 170 mA
- Current Consumption: 50 mA
- Input Compatibility: 2 or 3-wire PNP
- Electrical Connection: Removable terminal block for AS-Interface line and sensor side
- Fixing Mode: By 2 screws
- Diameter: 3 mm on panel
- Clip-on on 35 mm Symmetrical DIN Rail: Yes
- Operating Position: Horizontal
- Pollution Degree: 2
- Discrete Input Number: 4
- Degree of Protection: IP20
- Housing Material: Polycarbonate
- Ambient Temperature: -20 / 60 °C
The Telemecanique ASI 20MT4IE Modular Interface provides flexible and secure integration for industrial sensors. With its reliable IP20 protection and wide ambient temperature range, it ensures smooth and dependable performance across various automation applications. Its ease of installation, with both panel and DIN rail mounting options, makes it ideal for a variety of industrial setups.
