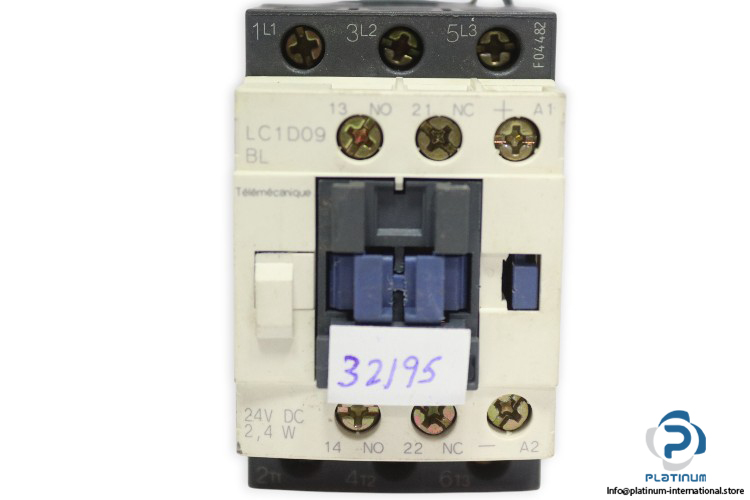

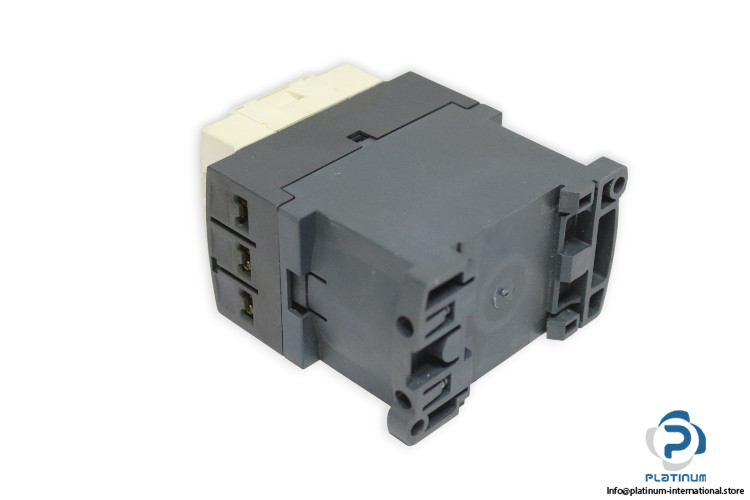

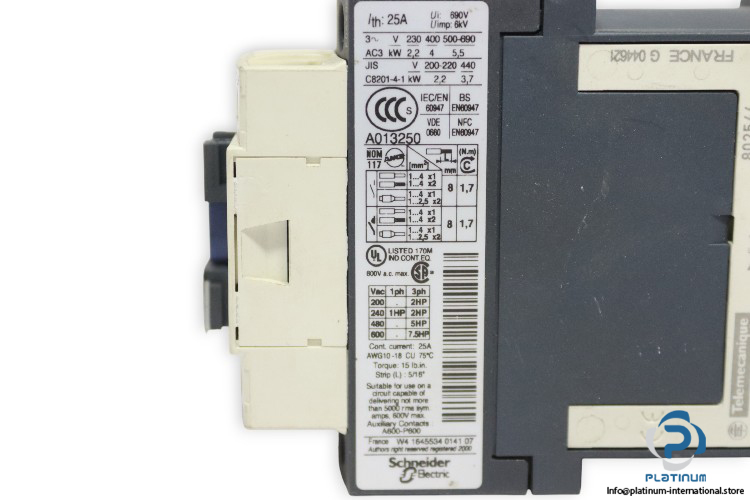

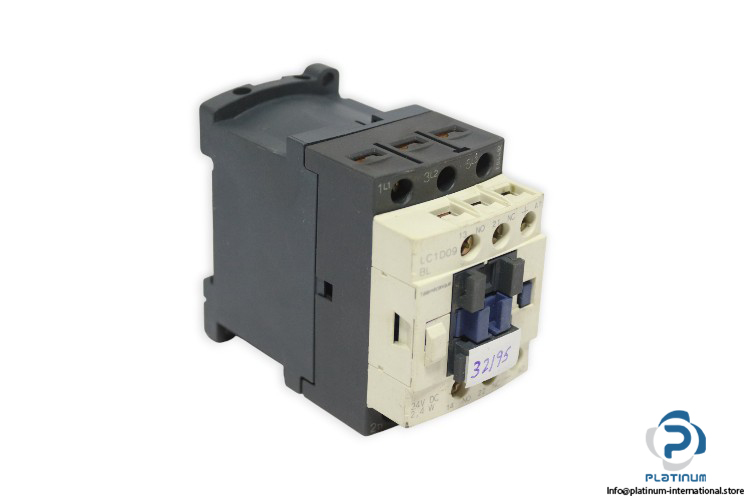

Telemecanique LC1D09BL Contactor
A high-performance industrial contactor designed for reliable motor control and resistive load switching. Built within the TeSys D range, this compact device ensures long service life, stable operation, and compatibility with a wide range of control systems. Manufacturer: Telemecanique
Type: Contactor
Model: LC1D09BL
Attached Accessory
| Range of Product | TeSys D |
| Range | TeSys |
| Product Name | TeSys D |
| Product or Component Type | Contactor |
| Device Short Name | LC1D |
| Voltage | 5“24 V |
| Application | Motor Control, Resistive Load |
| Utilisation Category | AC-4, AC-1, AC-3 |
| Poles Description | 3P |
| Contact Composition | 3 NO |
| Rated Operational Voltage [Ue] | ‰¤ 300 V DC (power circuit), ‰¤ 690 V AC 25...400 Hz (power circuit) |
| Motor Power | 4 kW at 400 V AC 50/60 Hz |
| Control Circuit Voltage | 24 V DC |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Impulse Withstand Voltage [Uimp] | 6 kV (IEC 60947) |
| Contactor Coil Voltage | 24 V DC |
| Pollution Degree | 3 |
| Ambient Operating Temperature | ˆ’5 / 60 °C |
| Height | 77 mm |
| Width | 45 mm |
| Depth | 95 mm |

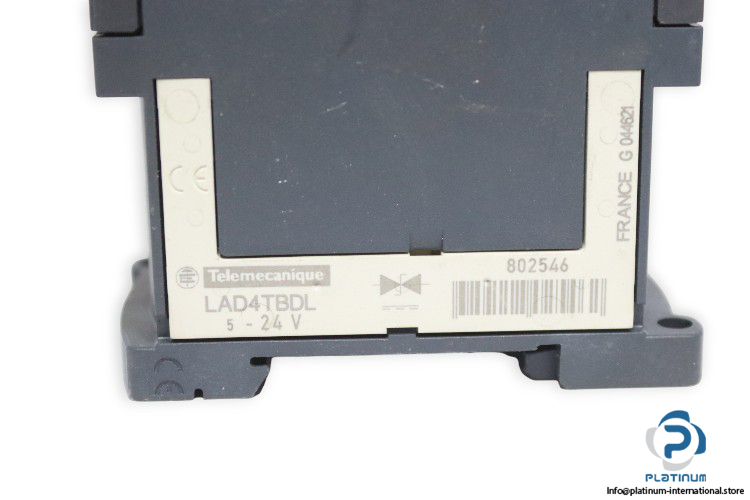

| Accessory | Telemecanique LAD4TBDL Contactor Bi-Directional Limiting Diode |
| Part No. | 802546 |
| Mounting Location | Side |
| Mounting Mode | By Clips |
| Suppressor Technology | Bidirectional Peak Limiting Diode |
| Control Circuit Voltage | 24 V DC |
| Maximum Peak Voltage | 2 Uc |
