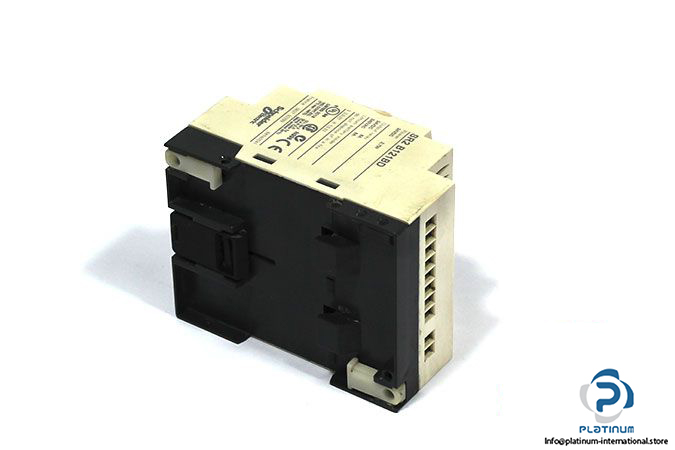

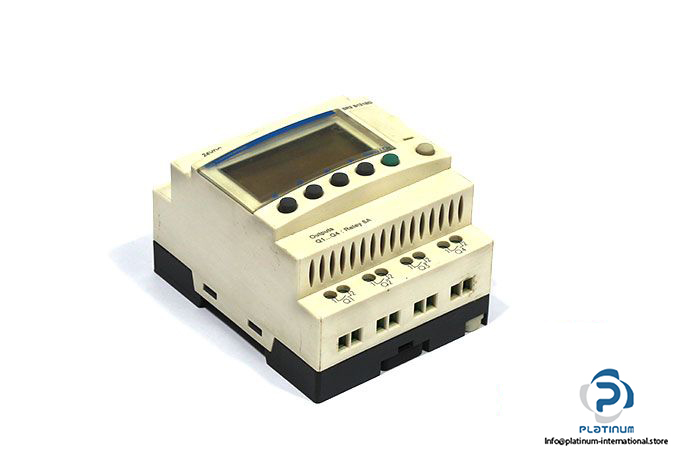

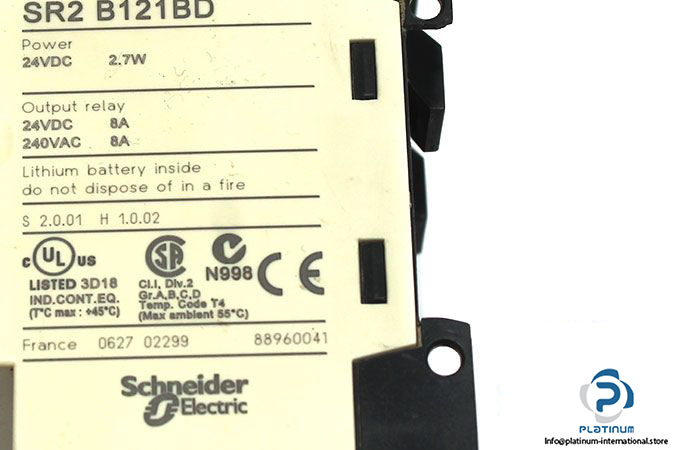

Telemecanique SR2B121BD Modular Smart Relay
Manufacturer: Schneider Electric / Telemecanique
Type: Modular Smart Relay
Model: SR2 B121BD
Rated Supply Voltage: 24 V DC
Max. Supply Current: 100 mA
Power Dissipation: 3 W
Discrete Input Number: 8
Discrete Input Voltage: 24 V AC
Discrete Input Current: 4 mA
Number of Outputs: 4 relay
Cycle Time: 6…90 ms
Operating Temperature: -20…55 °C
Protection Class: IP20 / IP40
Dimensions: 90 x 71 x 57 mm
Weight: 0.2 kg
