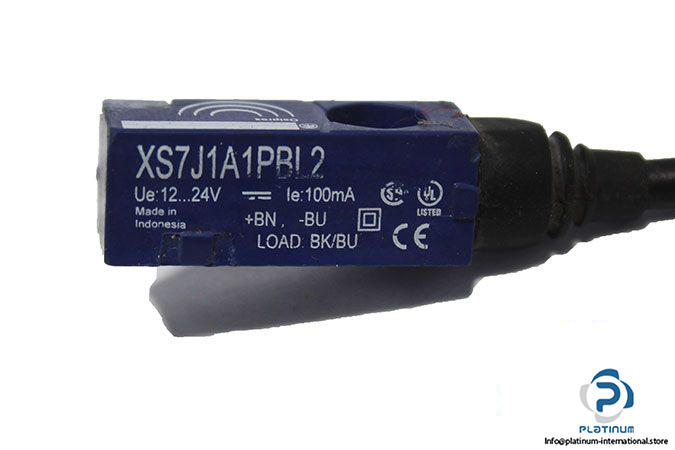

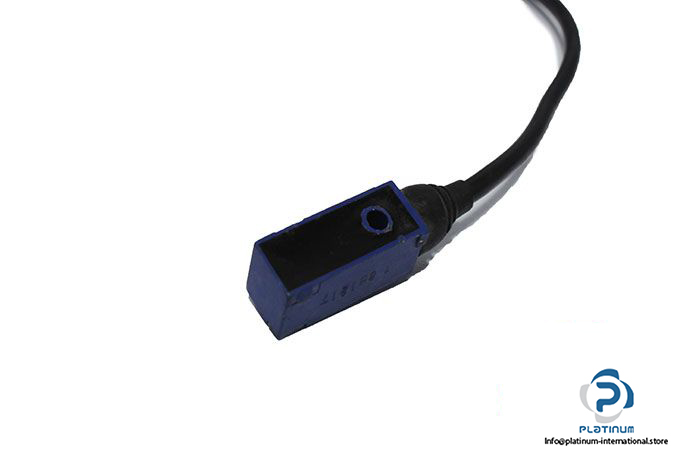

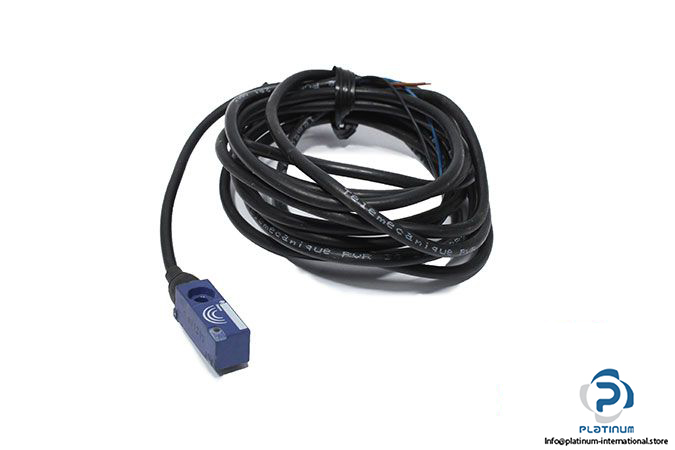

Telemecanique XS7J1A1PBL2 Inductive Sensor

Manufacturer: Schneider Telemecanique

Type: Inductive Sensor

Model: XS7J1A1PBL2

Sensing Range: 2.5 mm

Detector Flush Mounting Acceptance: Flush mountable

Material: Plastic

Enclosure Material: PBT

Wiring Technique: 3-wire

Discrete Output Function: 1 NC

Discrete Output Type: PNP

Electrical Connection: cable

Cable Length: 2 m

Rated Supply Voltage: 12 … 24 VDC

Switching Capacity: <= 100 mA
Degree of Protection: IP67

Sensor Design: Flat form 8 x 22 x 8 mm

Ambient Air Temperature: -25 … 70 °C

Weight: 0.03 Kg
