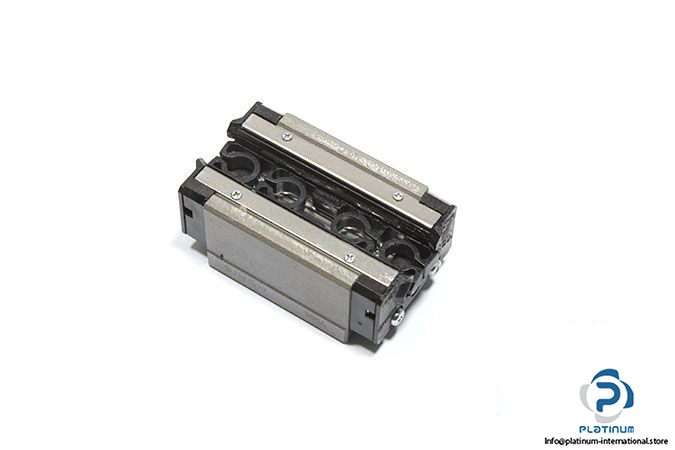

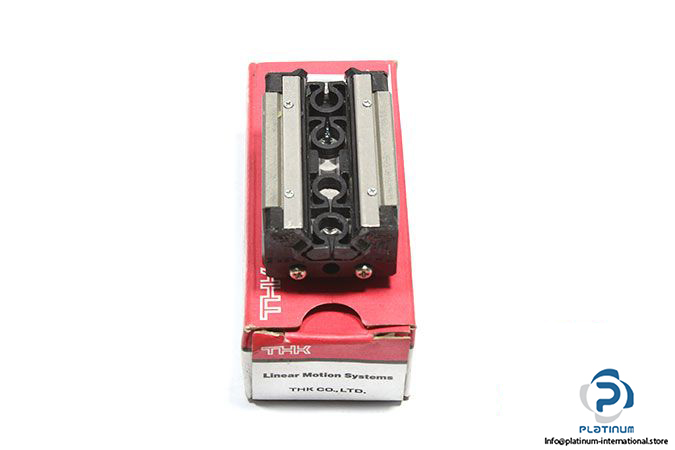

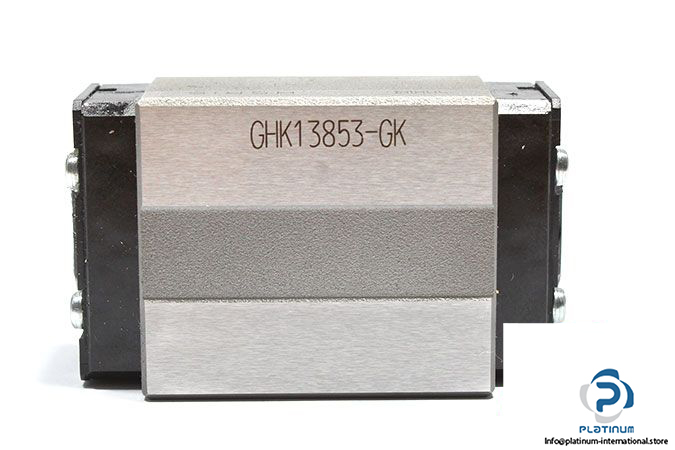

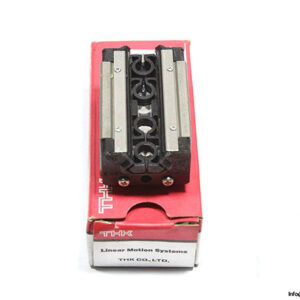

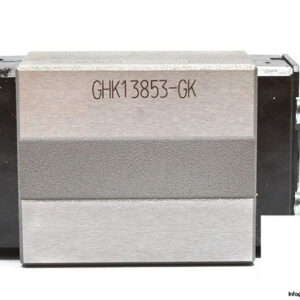

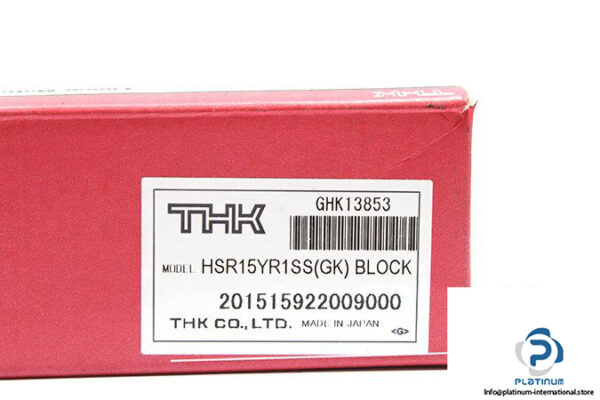

THK HSR15YR Linear Guideway Block

Manufacturer: THK

Type: Linear Guideway Block HSR

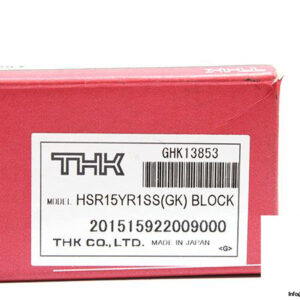

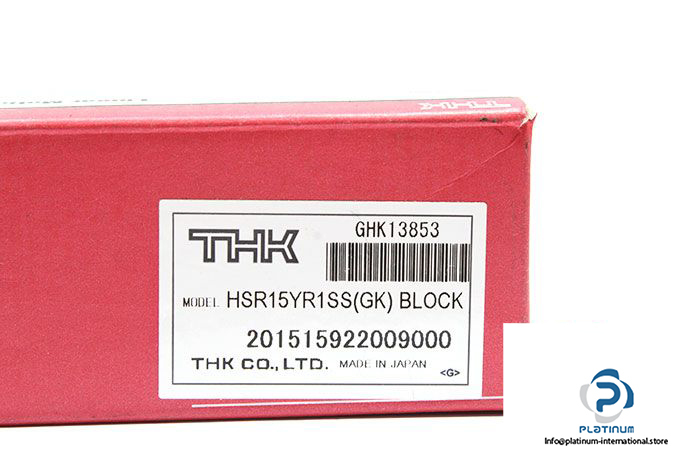

Model: HSR 15YR1SS

Size: 15 mm

Block Type: Square Type

Block Mounting Type: Side Mount

Basic Load Ratings:

Dynamic C: 8.33 kN

Static C₀: 13.5 kN

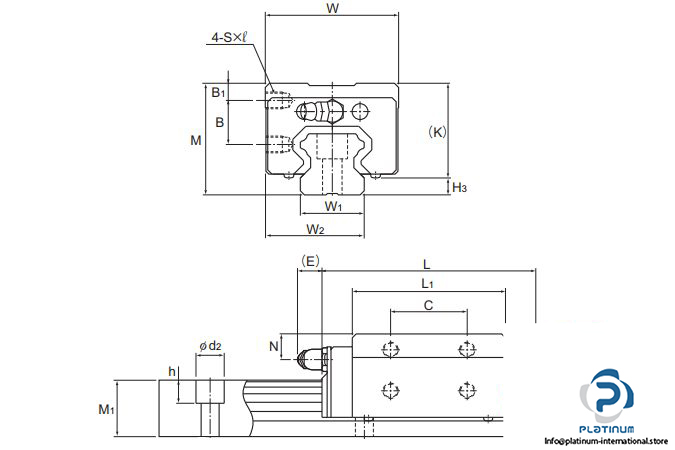

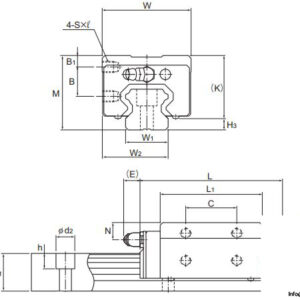

Dimensions

Total Height M: 28 mm

Block Width W: 33.5 mm

Block Length L: 56.6 mm

Weight: 0.2 kg
