Wenglor HD11PA3 Reflex Sensor
Рефлексный сенсор WENGLOR HD11PA3 обеспечивает питание 10-30 В DC, диапазон 120 мм и выход PNP, предназначен для быстрой и надежной детекции объектов в промышленных автоматизированных системах с защитой IP67.

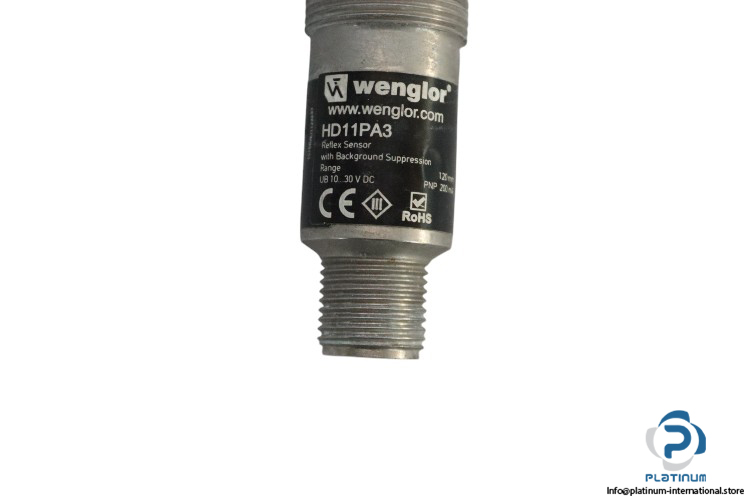

WENGLOR HD11PA3 Reflex Sensor
The WENGLOR HD11PA3 Reflex Sensor is a high-performance reflex sensor designed for industrial automation systems. It features a wide supply voltage range of 10 to 30 V DC and a switching frequency of 600 Hz, ensuring precise and fast detection. With a range of up to 120 mm and a response time of 833 µs, this sensor is ideal for applications that require reliable detection of objects in varying industrial environments. It comes with a PNP output, NO+NC contacts, and a robust stainless steel housing, providing durability and protection against dust and water with an IP67 rating.
- Manufacturer: WENGLOR
- Type: Reflex Sensor
- Model: HD11PA3
Technical Specifications:
- Supply Voltage: 10 … 30 V DC
- Current Consumption (Ub = 24 V): 30 mA
- Switching Frequency: 600 Hz

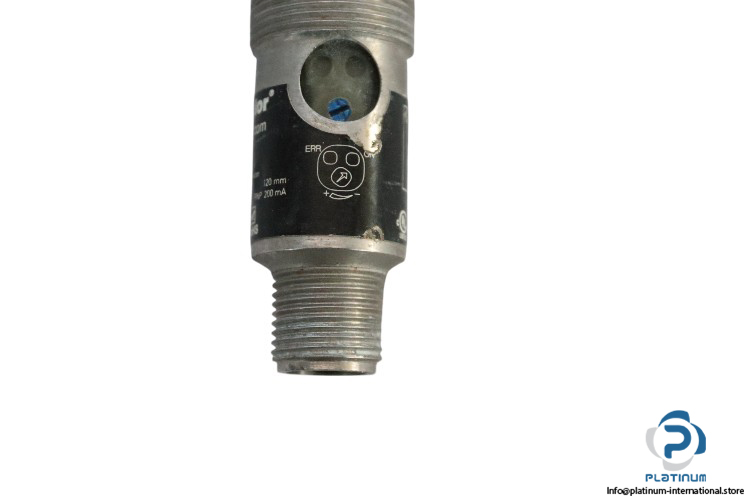

- Setting Method: Potentiometer
- Light Source: Red Light
- Connection: M12 × 1; 4-pin
- Electrical Design: PNP
- Contact: NO+NC
- Response Time: 833 µs
- Switching Output Voltage Drop: 2.5 V
- PNP Switching Output/Switching Current: 200 mA
- Range: 120 mm
- Setting Range: 35 … 120 mm
- Degree of Protection: IP67
- Housing Material: Stainless steel
- Temperature Range: -25 … 60 °C
The WENGLOR HD11PA3 Reflex Sensor is perfect for detecting objects in industrial automation processes, offering quick response times and reliable performance in challenging conditions. Its IP67 protection ensures it is suitable for use in harsh environments, making it a valuable component for a wide range of industrial applications.
