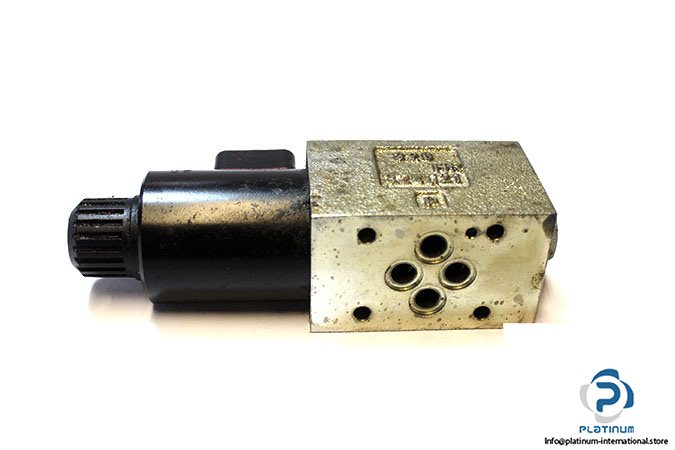

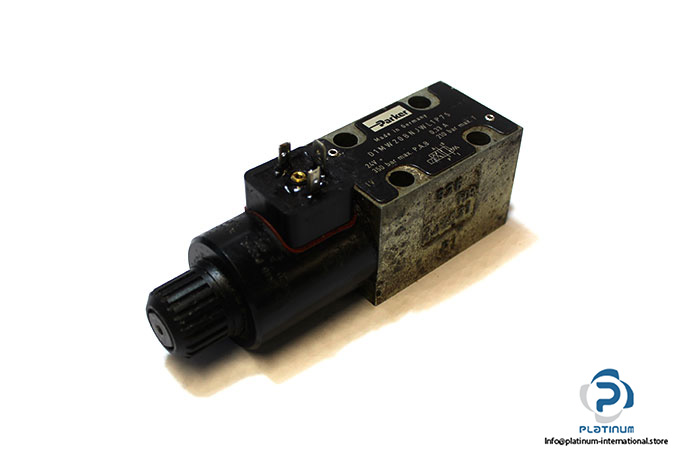

Parker D1MW20BNJWL1P75 Directional Control Valve

Manufacturer: PARKER

Type: Directional Control Valve

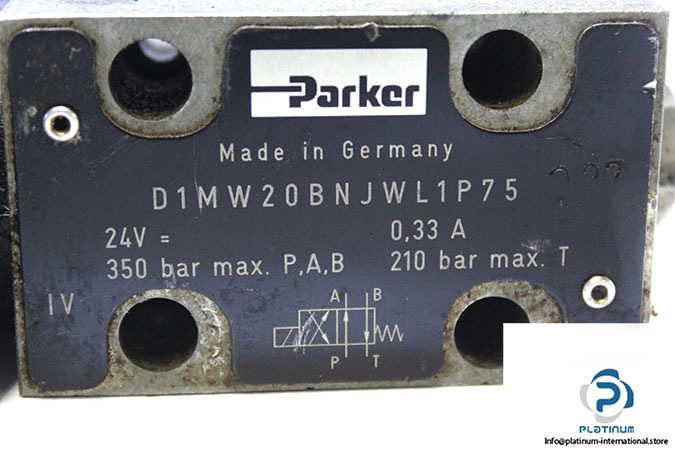

Model: D1MW20BNJWL1P75

Size: NG6

Ambient Temperature: -25…….+60 ^oC

Maximum Operating Pressure at Ports P, A, B :350 bar

Maximum Operating Pressure at Port T :210 bar

Flow Max.: 80 l/min

Fluid Temperature: -20…….+70 ^oC

Connection: Sup-plate

Voltage: 24 V

Current: 0.33 A

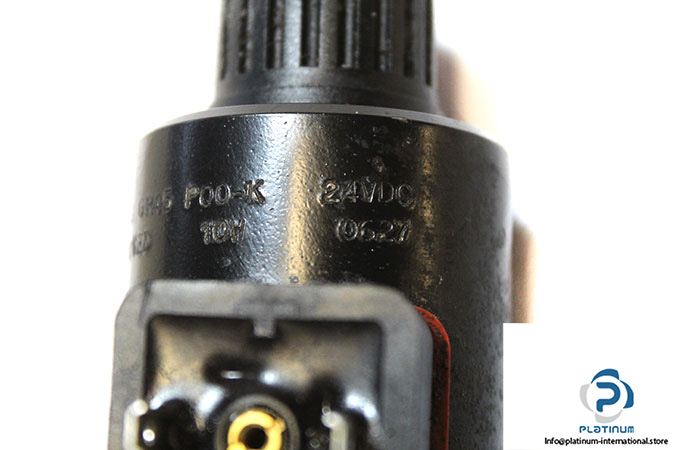

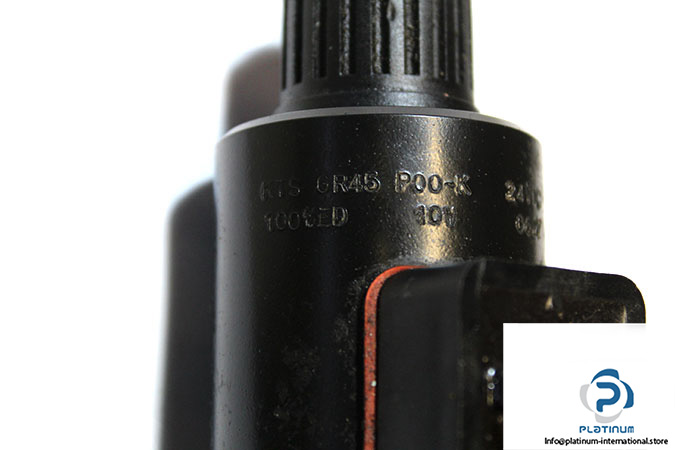

Attachment:  PARKER KTS GR45 P00-K SOLENOID COIL

Manufacturer: PARKER

Type: Solenoid Coil

Model: KTS GR45 P00-K
