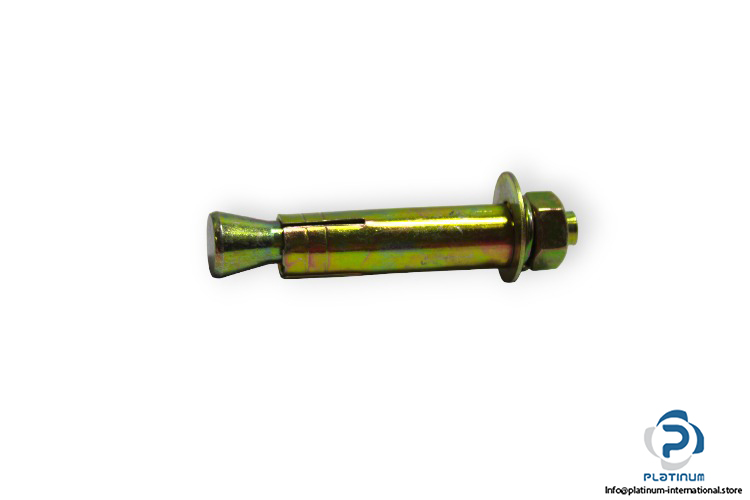

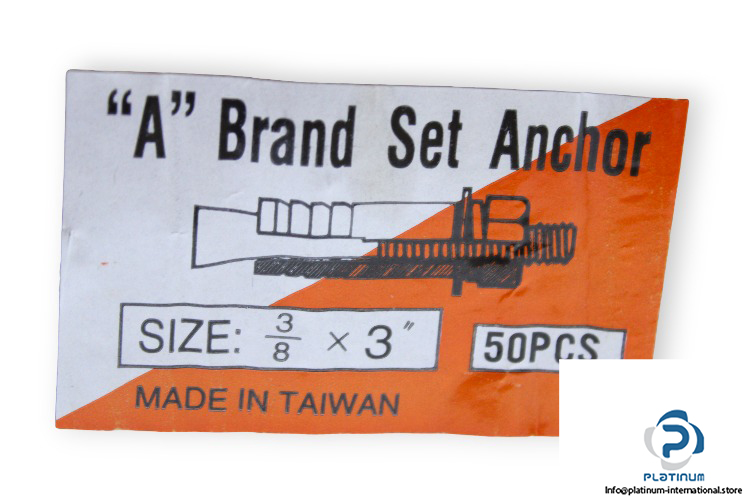

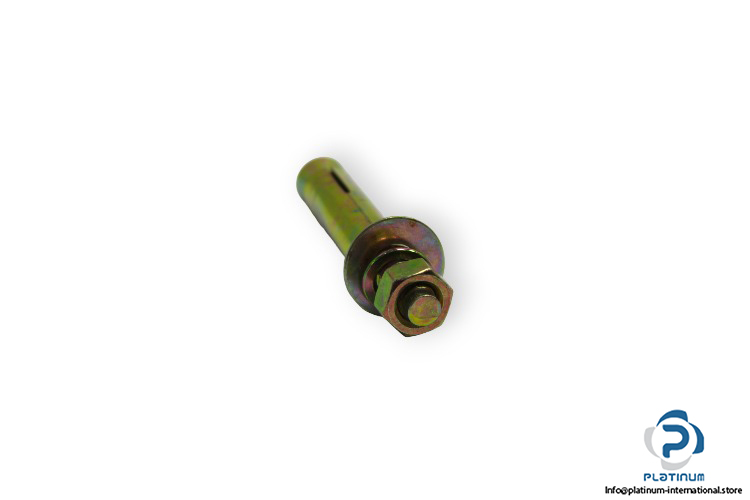

3/8″ X 3″ Galvanized Wedge Anchor

Type: Galvanized Wedge Anchor

Model: 3/8″ X 3″

Bit Size: 3/8″

Box Qty: 50

Minimum Embedment: 1-1/2″

Wrench Size For Nut: 9/16″

Thread Type: 3/8″ – 16

Minimum Edge Distance: 1-7/8″

Maximum Fixture Thickness: 1-1/8″

Minimum Fixture Hole Diameter (In Place): 1/2″

Minimum Fixture Hole Diameter (Hole Spotted): 3/8″

Minimum Spacing: 3-3/4″

Maximum Torque: 25 – 30 Ft./Lbs.

Thread Length: 1-3/4″

Diameter: 3/8″

Length: 3″

Material: Hot-Dipped Galvanized

Type: Male
