Motors & Drives Servo Motors

Siemens 1FT5046-0AF01-1 Permanent Magnet Motor

Name: SIEMENS 1FT5046-0AF01-1 PERMANENT MAGNET MOTOR
Brand: SIEMENS
SKU: 980824
Price: 400.00 USD
Availability: InStock

siemens-1ft5046-0af01-1-permanent-magnet-motor-1

siemens-1ft5046-0af01-1-permanent-magnet-motor-2

siemens-1ft5046-0af01-1-permanent-magnet-motor-3

Gebraucht

Auf Lager1 EinheitVersandbereit

400,00$

PERMANENT MAGNET MOTOR

Siemens 1FT5046-0AF01-1 permanent magnet motor delivers high efficiency at 3000 min»¹ speed with 2 Nm rated torque, IP64 protection, and thermal class F. Perfect for demanding industrial environments.

Hersteller

SIEMENS

SKU

980824

Kategorie

Servo Motors

Zustand

Gebraucht

1FT5046 1FT5046-0AF01-1 1FU1030 2 3000 Automatio B5 connection Efficiency Generator High Industrial IP64 Magnet motor Mounting Nm Permanent rpm Series Servo Siemens Star Tacho Torque

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

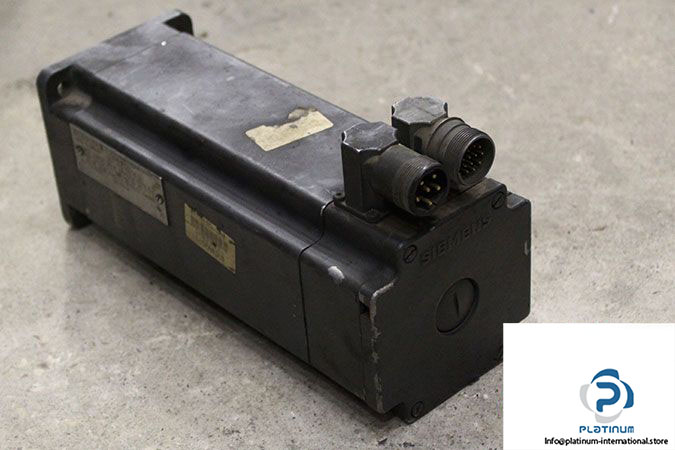

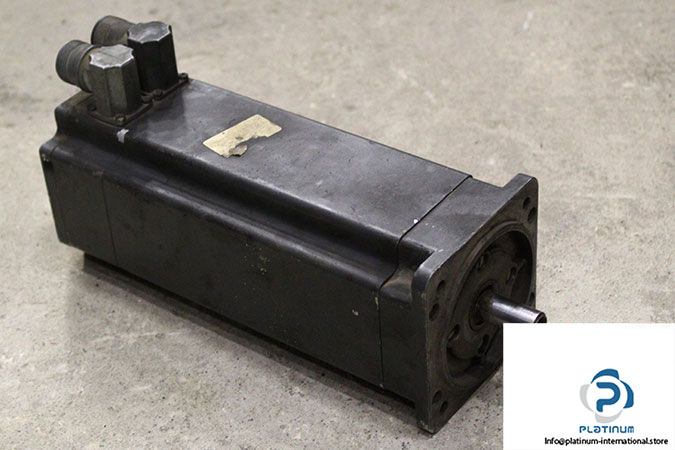

SIEMENS 1FT5046-0AF01-1 PERMANENT MAGNET MOTOR

The Siemens 1FT5046-0AF01-1 is a precision-engineered permanent magnet motor ideal for high-performance automation tasks. Designed for efficiency and reliability, it delivers consistent torque with robust protection and top-class thermal performance.

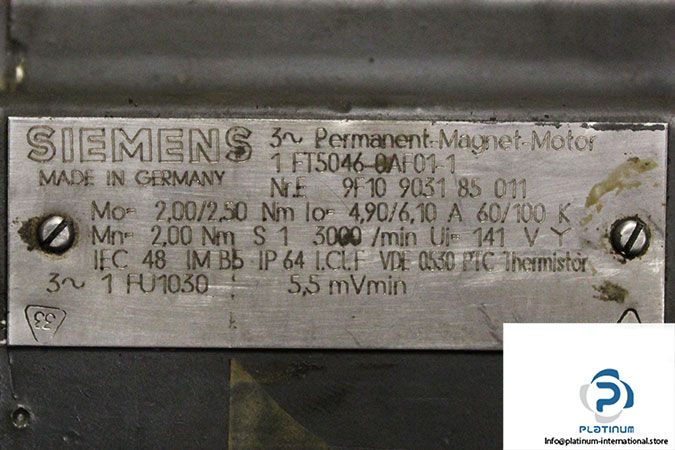

Manufacturer: Siemens

Type: Permanent Magnet Motor

Model: 1FT5046-0AF01-1

Part No.: 9F10 9031 85 011

Rated Voltage (Star)	141 V
Stall Current	4.9 / 6.1 A
Rated Speed	3000 min»¹
Stall Torque	2 / 2.5 Nm
Rated Torque	2 Nm
Constant Voltage	5.5 mV/min
Tacho Generator	1FU1030
Thermal Class	F
Mounting Position	B5
Protection Class	IP64
