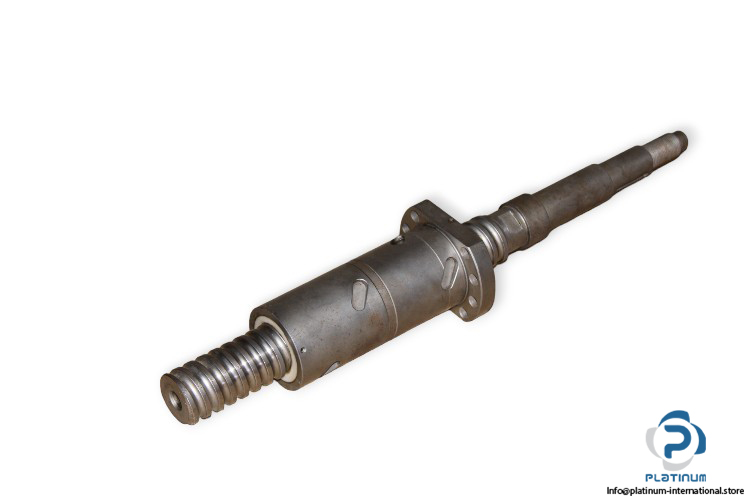

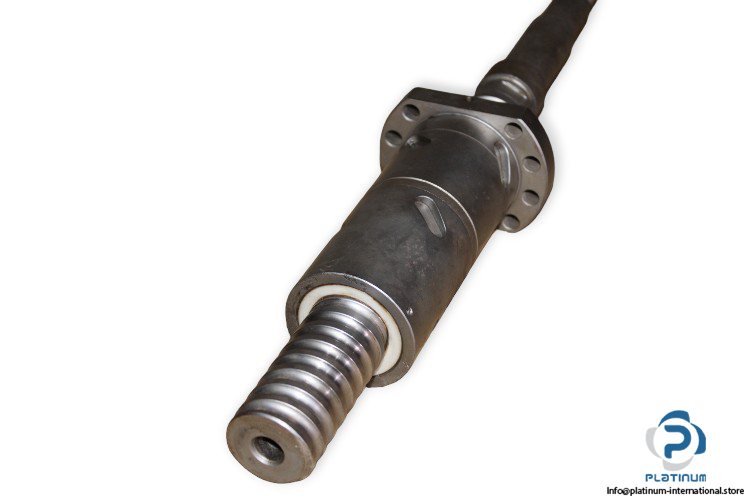

Name: 40-10 FLANGED BALL SCREW
SKU: 1042260
Availability: LimitedAvailability

Type: Flanged nut ball screw
Model: 40-10 R

Size: 40
Nominal Diameter: 40 mm
Lead P: 10 mm
Direction of Lead: Right-Hand Thread
Threaded length: 275 mm
Total screw length: 470 mm

Spezifikation	Wert
Weight	5,4 kg
Condition	Used
Size	40 x 10 R
Type of Product	Flanged Nut Ball Screw
Flange Diameter [mm]	93 mm
Nut Outer Diameter [mm]	63 mm
Flange Thickness [mm]	14 mm
Cutting Flange Width [mm]	70 mm
Shelf No.	240805
Nut Length [mm]	160 mm

Preis	Auf Anfrage
Lager	1 Auf Lager
Kategorie	Screw & Ball Screws
Zustand	Gebraucht
SKU	1042260

Weight	5,4 kg
Condition	Used
Size	40 x 10 R
Type of Product	Flanged Nut Ball Screw
Flange Diameter [mm]	93 mm
Nut Outer Diameter [mm]	63 mm
Flange Thickness [mm]	14 mm
Cutting Flange Width [mm]	70 mm
Shelf No.	240805
Nut Length [mm]	160 mm

40-10 Flanged Ball Screw
