55.13323.010 Operating Temperature Limiter

Name: 55.13323.010 OPERATING TEMPERATURE LIMITER
SKU: 1081836
Availability: LimitedAvailability

55.13323.010-operating-temperature-limiter-(used)

55.13323.010-operating-temperature-limiter-(used)-1

55.13323.010-operating-temperature-limiter-(used)-2

55.13323.010-operating-temperature-limiter-(used)-3

Gebraucht

Auf Lager1 EinheitVersandbereit

Safety Thermostat

1-pole operating temperature limiter with fixed 120 °C cut-off, 16 A switching capacity, and precision capillary tube sensor for industrial heating safety.

SKU

1081836

Kategorie

Thermostats

Zustand

Gebraucht

1-Pole 5513323010 Capacity capillary Cut-Off EG01 fixed High Industrial Limiter Operating Safety Temperature thermostat Tube

Neu Auf Lager

Dieses Produkt ist auch als nagelneu erhältlich.

Neue Version anzeigen →

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

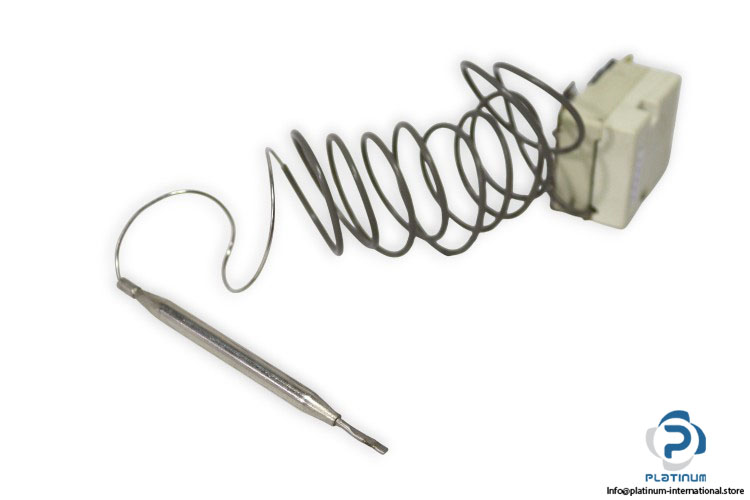

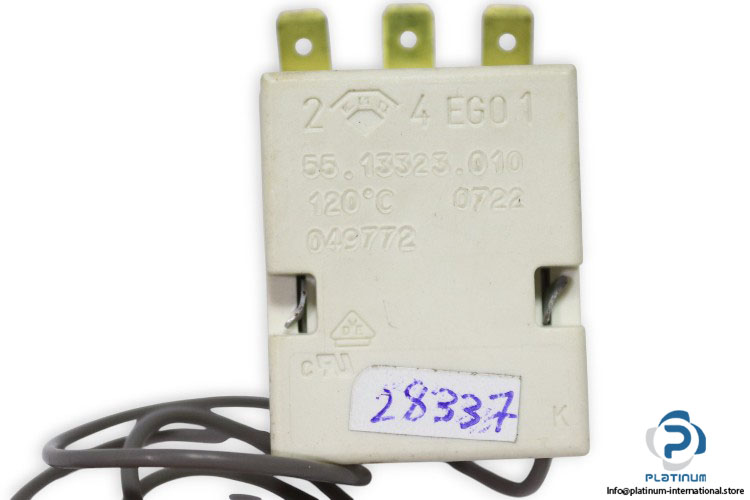

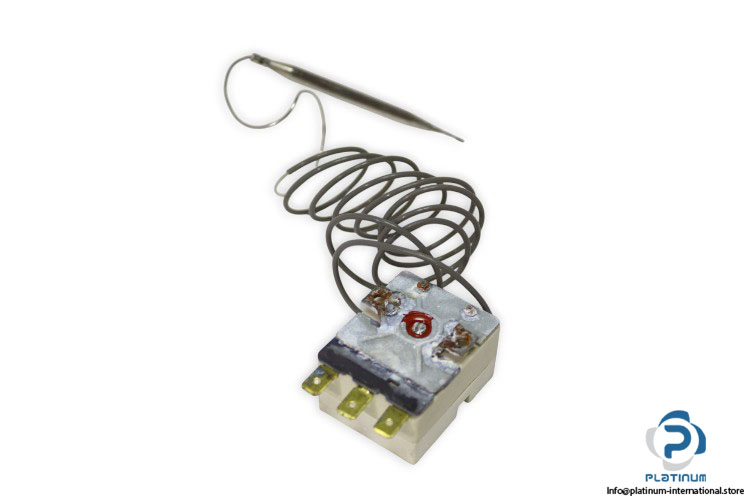

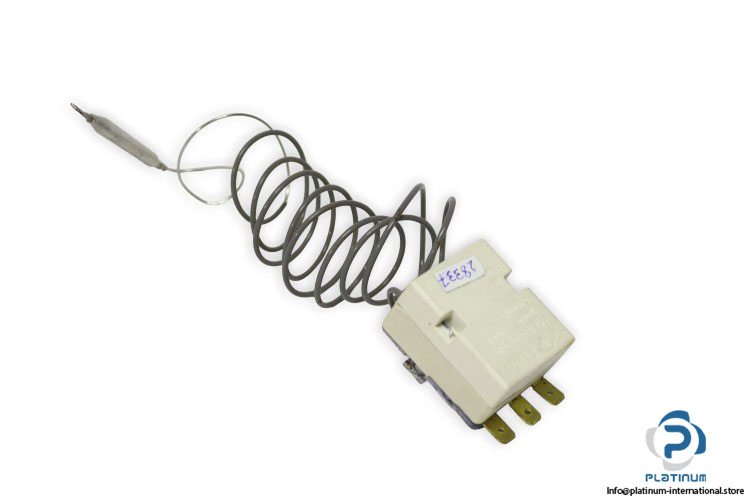

Operating Temperature Limiter / Safety Thermostat 5513323010

The 5513323010 operating temperature limiter is a 1-pole safety thermostat designed for reliable over-temperature protection in industrial heating systems. It features a fixed cut-off temperature, high switching capacity, and a robust capillary tube sensor for accurate thermal monitoring.

Type: Operating Temperature Limiter / Safety Thermostat (1-pole)

Model: 5513323010

MNR: EG01

Part No.: 049772

Ref. No.: 0722

Poles	1-pole
Switching Capacity	16 A
Contact Function	1CO (changeover)
Cut-Off Temperature	Fixed 120 °C
Capillary Tube	1130 mm (insulated 110 mm)
Sensor Dimensions	Diameter: 6 mm, Length: 87 mm
