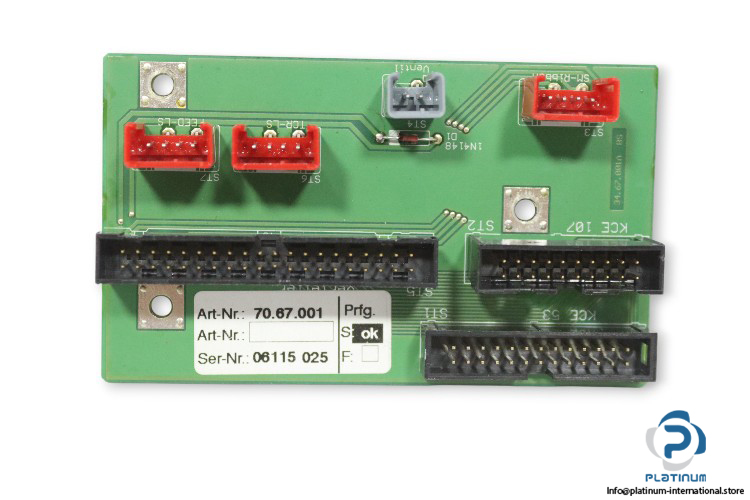

PCB Interface Board 70.67.001

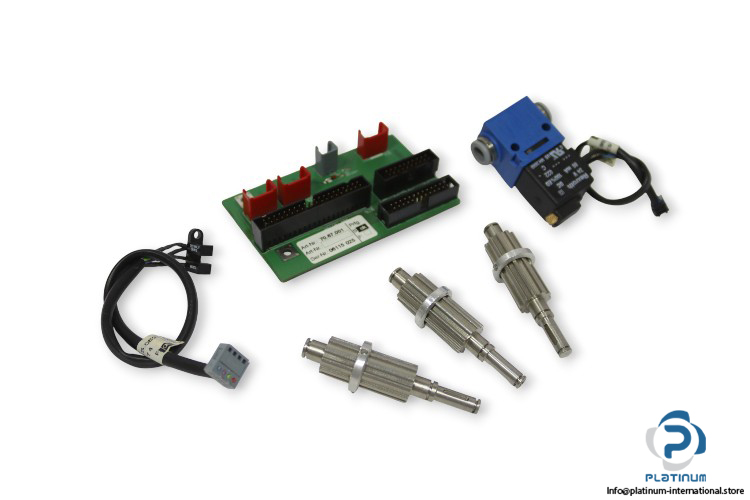

The PCB Interface Board 70.67.001 is a compact and functional interface module designed for integration with pneumatic solenoid valves, sensors, and actuator systems. It includes a Rexroth solenoid valve, coil assembly, and multiple connection ports for reliable control and signal transmission.
Type: PCB Interface Board
Model: 70.67.001
Serial Number: 06115 025

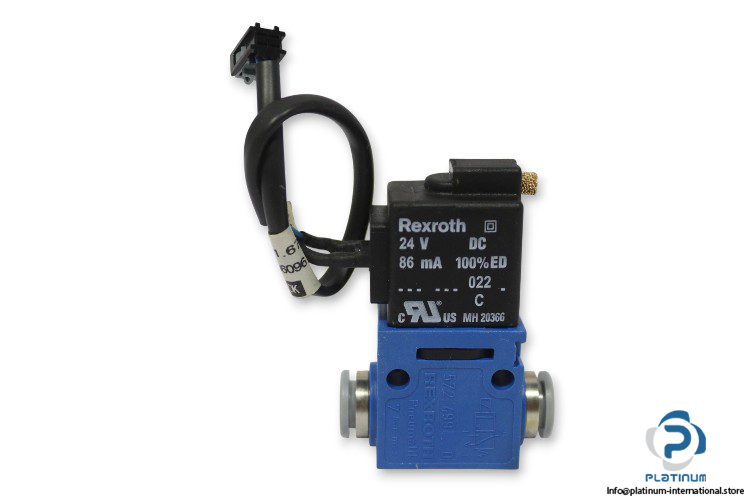

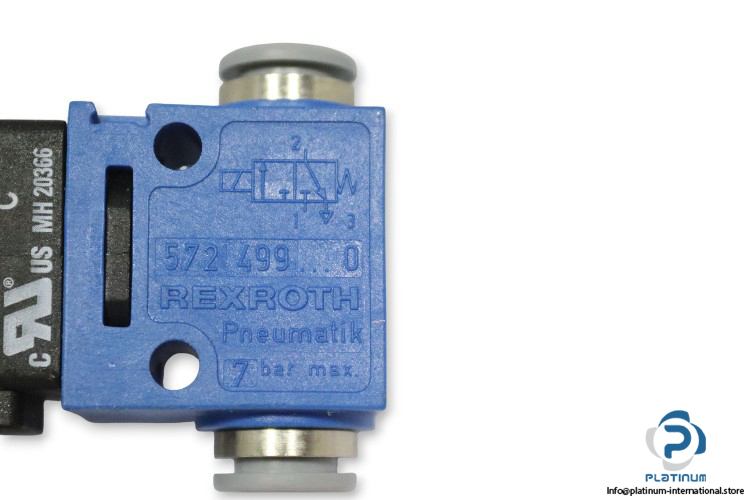

| Contains | Rexroth 572 499 0 Solenoid Valve |
| Valve Series | 572 Series |
| Valve Type | 3 by 2 Normally Closed pneumatic solenoid valve |
| Pressure | 7 bar maximum |
| Fluid | Air |
| Coil Model | 022 |
| Coil Code | MH 230366 |
| Coil Voltage | 24 V DC |
| Coil Current | 86 mA at 100 percent duty |
| Board Connections | 3 ribbon cable headers |
| Additional Connectors | 3 red JST style sensor or actuator connectors |

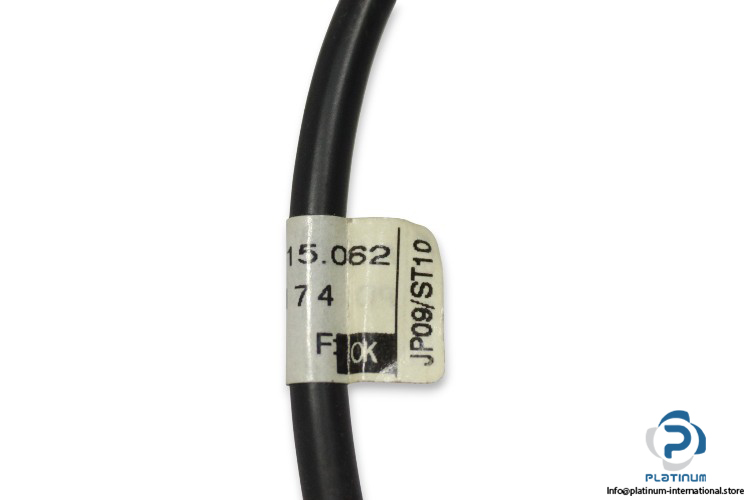

| Cable Harness Art Number 1 | 71.15.062 / JP09 / ST10 / DPMIIII / ST6 |

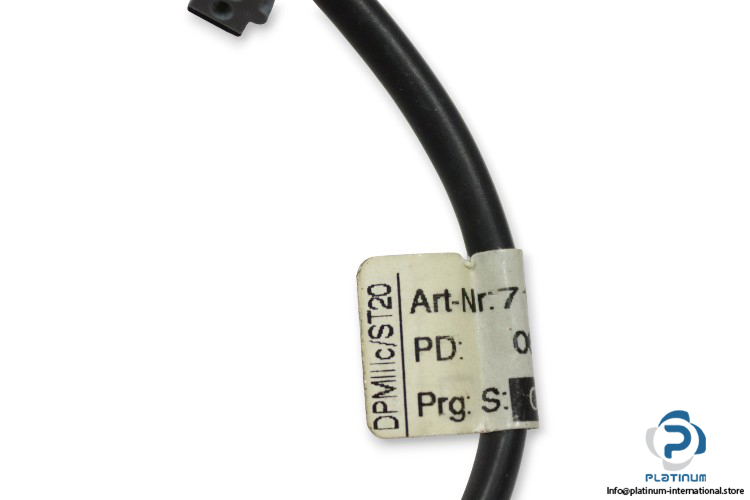

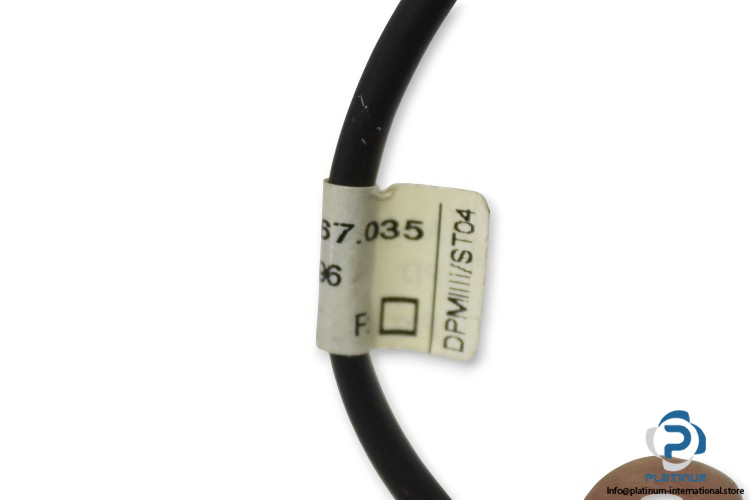

| Cable Harness Art Number 2 | 71.67.035 / DPMIIII / ST04 / DPMIIIC / ST20 |
