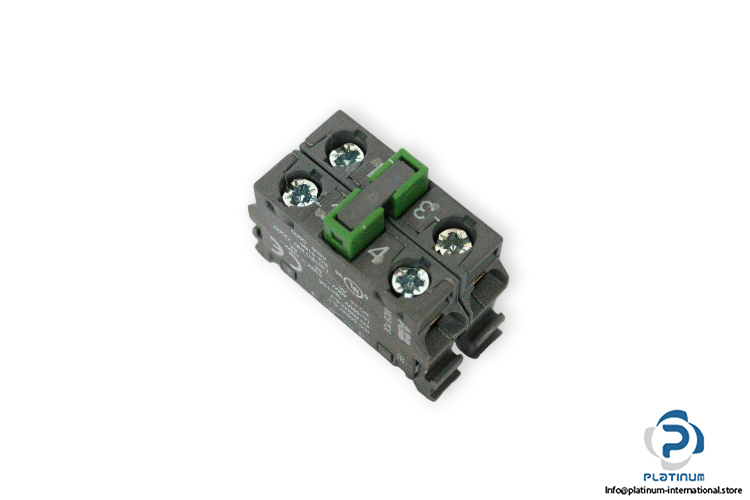

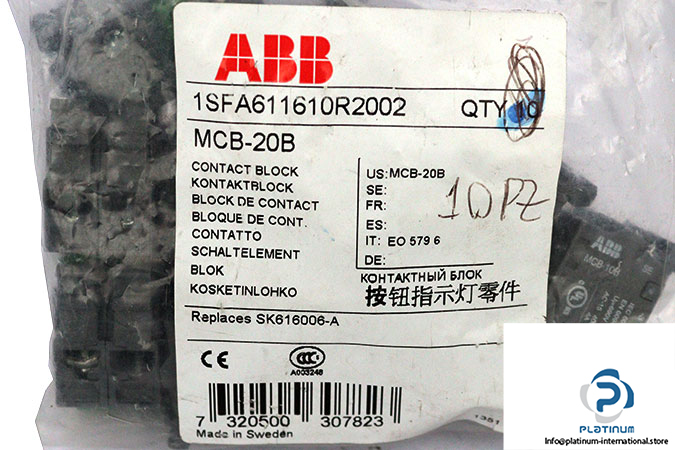

ABB 1SFA611610R2002 Contact Block

Manufacture: Abb
Type: Contact Block
Model: MCB-20B
Part No.: 1SFA611610R2002

Rated Insulation Voltage (Ui): 690 V
Rated Impulse Withstand Voltage (Uimp): 6 kV
Rated Frequency (f): 50/60 Hz
Thermal current Ith: 10 A
Rated Operational Voltage: Max 690 V
Rated Operational Current AC-15 (Ie): (230 V AC) 6 A,(400 V AC) 4 A, (120 V AC) 8 A
Power Loss: Max 5 W
Connection Type: Screw Clamp
Terminal Type: Screw Terminals
Tightening Torque: 0.9 N·m
Wire Stripping Length: 8 mm
Function: Without holder
Mounting Type: Rear mounting
Number of Auxiliary Contacts NC: 0
Number of Auxiliary Contacts NO: 2
Degree of Protection: Terminals IP20
Pollution Degree: 3
Operation temperature: -25 … +70 °C
Dimensions: 20 x 44 x 28 mm
