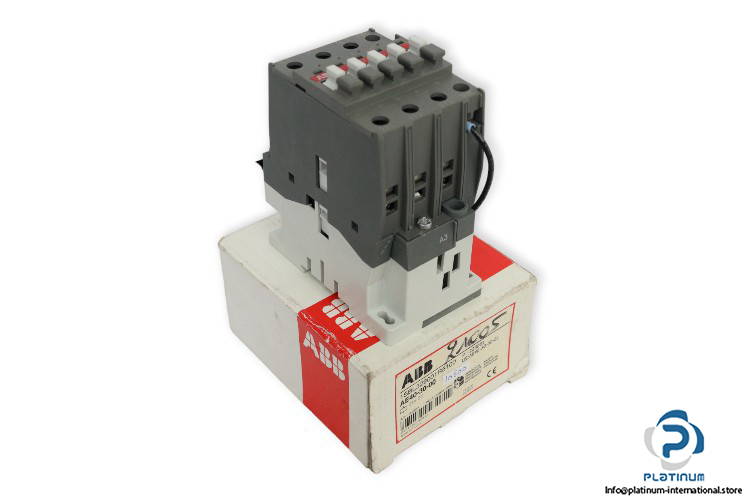

ABB AE40-30-00 Contactor

Manufacture: Abb
Type: Contactor
Model: AE40-30-00

Rated insulation voltage Ui: 1000 V AC
Coil voltage: 24 V DC
Rated impulse withstand voltage Uimp: 8 kV
Rated operational voltage Ue: 690 V
Conventional free air thermal current Ith: 65 A
Contact: 1 Normally closed
Motor power:
at 230 V: 11 kW
at 380/400 V: 18.5 kW
at 415 V: 18.5 kW
at 690 V: 22 kW
Rated operational current: AC-3 (380 … 400 V) 37 A, AC-1 (380 … 400 V) 60 A
No. of poles: 3-poles
Rated frequency limits: 25 … 400 Hz
Connecting terminals: M 5, with 2 x (5.6 x 6.5mm) double connector
Degree of protection: IP20
Dimensions: 108.3 x 96 x 54 mm
