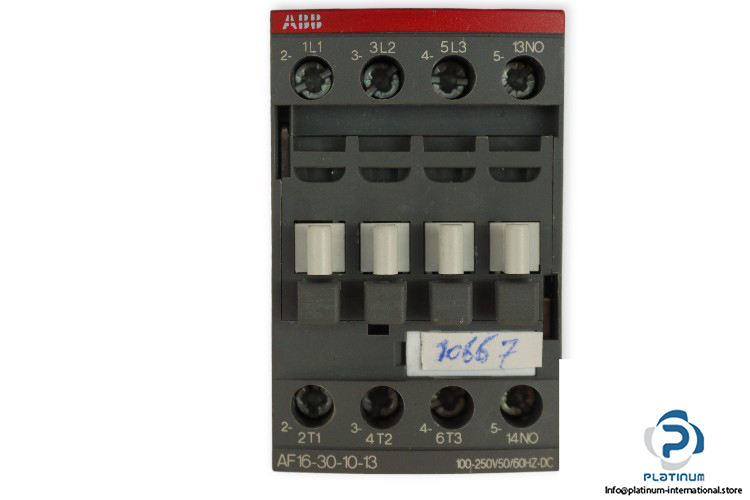

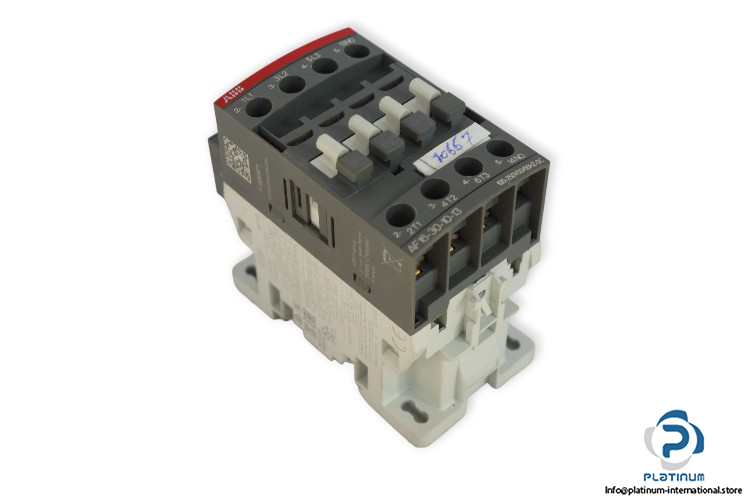

ABB AF16-30-10-13 Contactor

Manufacture: Abb
Type: Contactor
Model: AF16-30-10-13
Series: AF16

Coil voltage: 100 … 250 V AC/DC

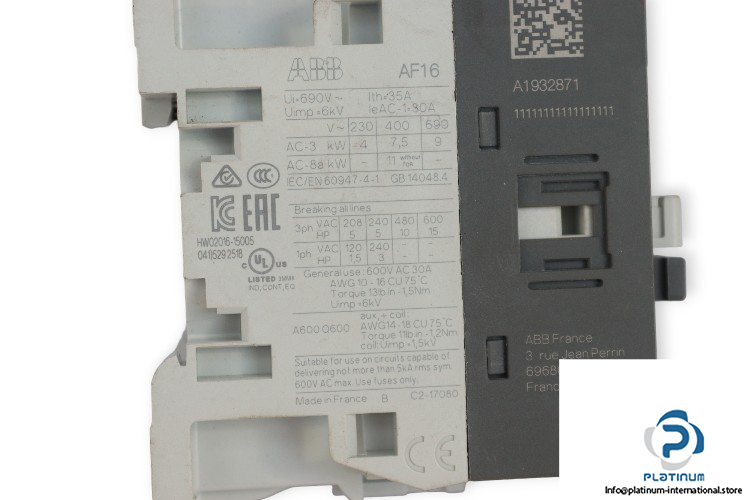

Standard: IEC/EN 60947-4-1
Frequency: 50/60 Hz
Rated impulse with stand voltage Uimp: 6 kV
Insulation voltage Ui: 690 V AC
Thermal current Ith: 35 A
Rated Operational Current AC-1 (Ie): 30 A
Rated Operational Power AC-3 (Pe): (400 V) 7.5 kW
Rated Operational Power AC-8a (Pe): (400 V) 11 kW
Auxiliary Contacts: 1 Normally Open
No. of poles: 3
Terminal Type: Screw Terminals
General Use Rating UL/CSA: (600 V AC) 30 A
Protection class: IP20
Ambient Air Temperature: Close to Contactor Fitted with Thermal O/L Relay -25 … 60 °C
Dimensions: 45 x 77 x 86 mm
