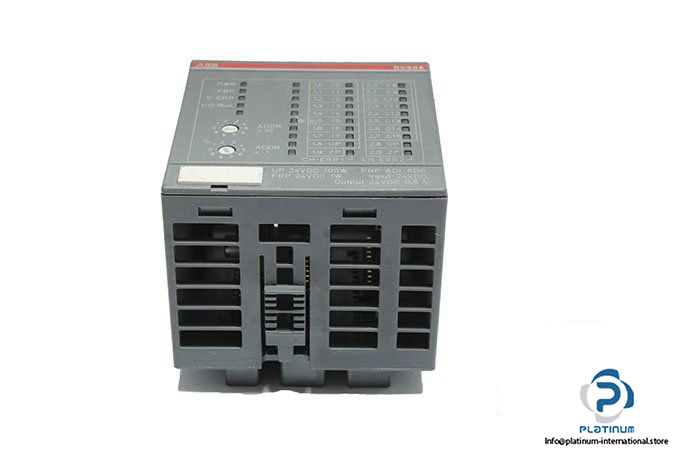

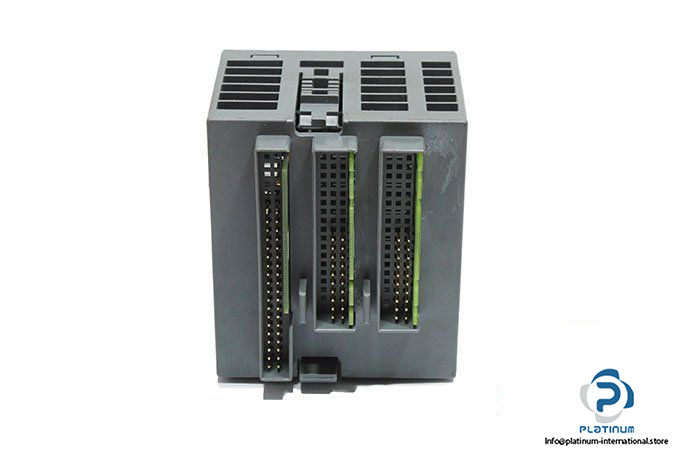

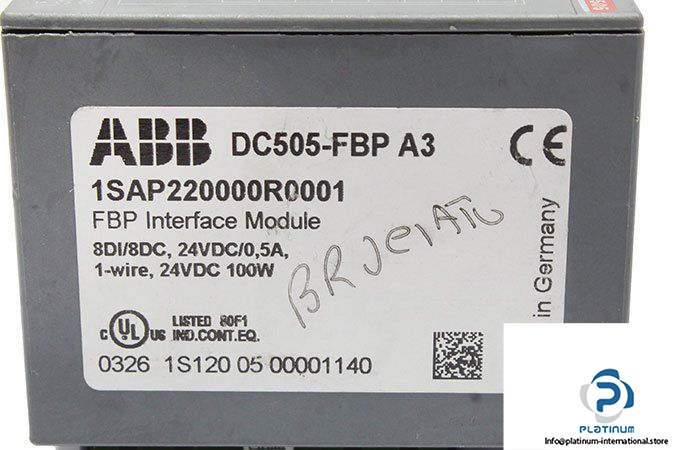

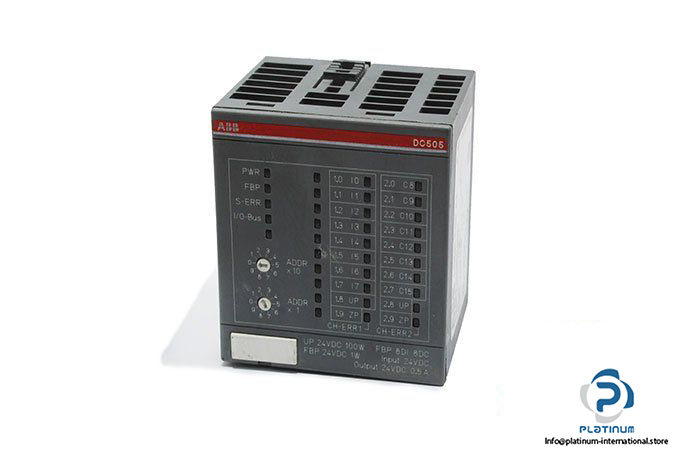

ABB DC505-FBP Interface Module

Manufacturer: ABB

Type: Interface Module

Model: DC505-FBP

Product ID: 1SAP220000R0001

Power Supply: 24 VDC

Degree of Protection: IP20

I/O Option: Bus module with Onboard IO – 8DI / 8DC

Max. Number of Analog: I/Os:32 AI, 32 AO

Max. Number of Digital: I/Os:240 DI, 176 DO

Max. Operating Altitude Permissible: 2000 m

Mounting Position: Horizontal, Vertical possible with derating

Number of Digital Configurable I/Os: 8

Number of Digital Inputs DC 24V: 8

Power: 100 W

Output Current: 0.5 A

Ambient Air Temperature: 0 … +60 °C

Dimensions: 67 X 75 X 61 mm

Weight: 0.12 Kg
