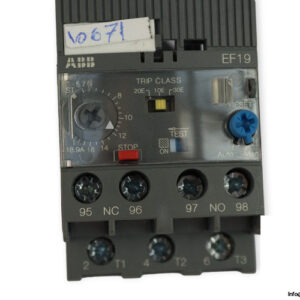

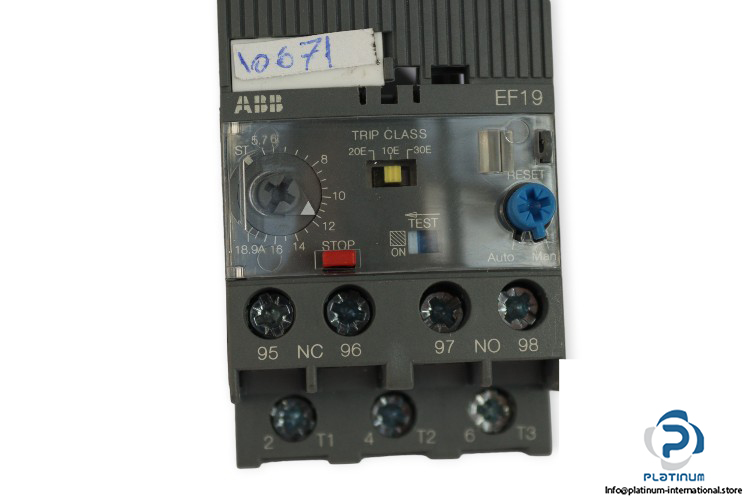

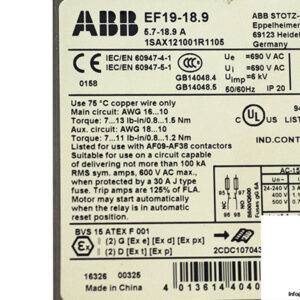

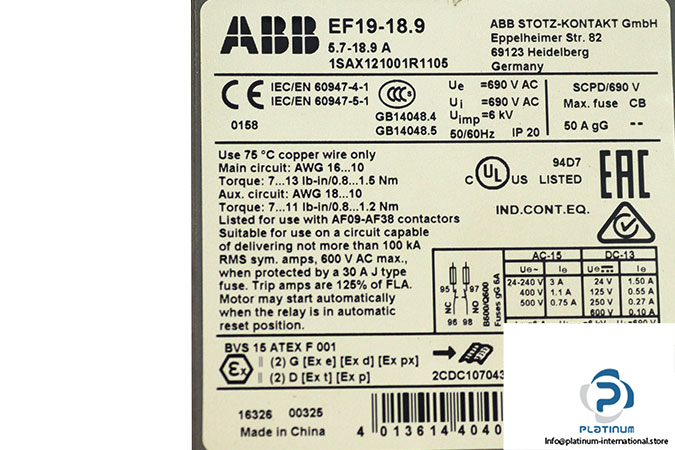

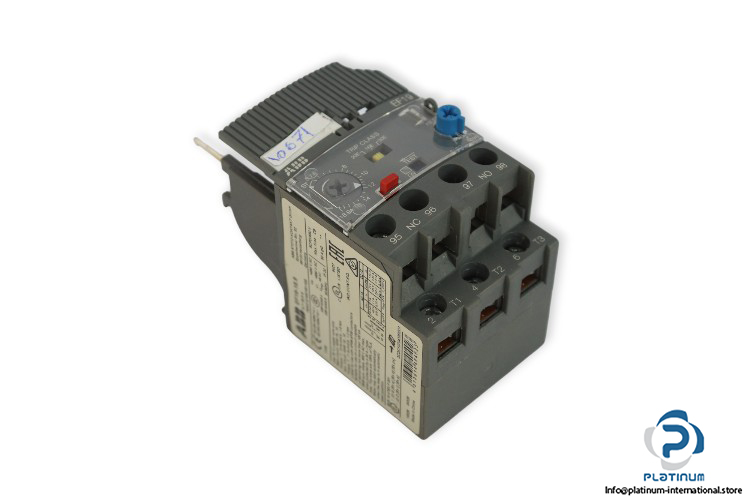

ABB EF19-18.9 Overload Relay

Manufacturer: ABB
Type: Overload Relay
Model: EF1918.9
Alternative Model: 1SAX121001R1105

Rated Operational Voltage: 600 … 690 V AC/DC
Rated Operational Current: 25 A
Rated Insulation Voltage: 690 V
Frequency: 50 … 60 Hz
Sitting Range: 5.7 … 18.9 A
Rated Impulse Voltage (Uimp): 6 kV
Number of Poles: 3-Pole
Auxiliary Contact: 2-Pole 1 Normally Open (NO) + 1 Normally Closed (NC)
Protection Class: IP20
Ambient Temperature: -25 … 70 °C
Dimensions: 85 x 44.4 x 59.3 mm
