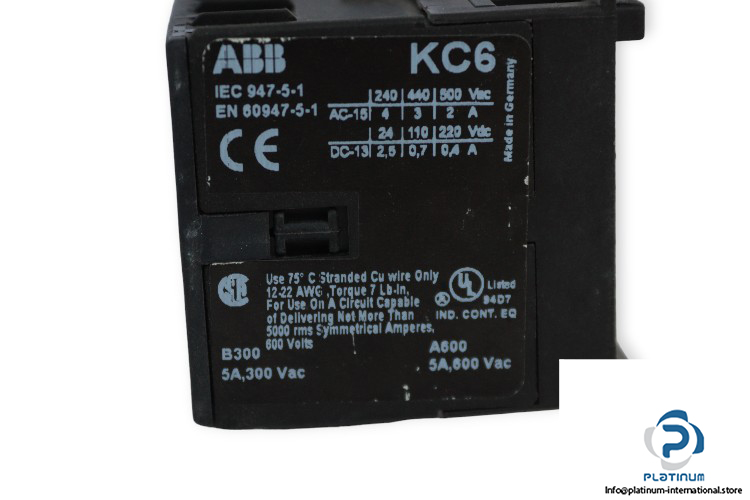

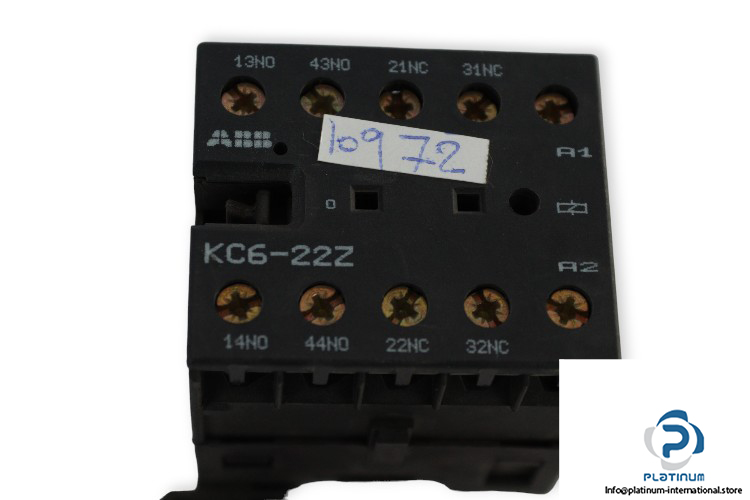

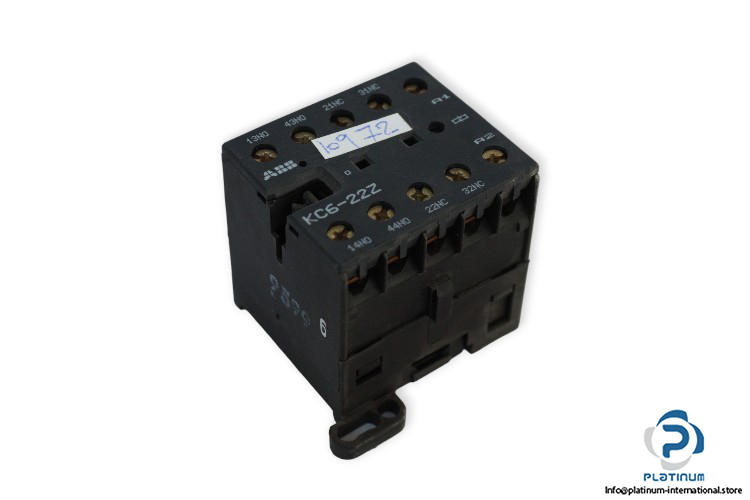

ABB KC6-22Z Mini Contactor Relay

Manufacture: Abb
Type: Mini Contactor Relay
Model: KC6-22Z

Control Supply Voltage: 24 V DC
No. of Auxiliary Contact: 2 Normally closed, 2 Normally open
No. of poles: 4
Rated Operational Voltage: Auxiliary Circuit 690 V AC, Auxiliary Circuit 250 V DC
Rated Insulation Voltage Ui: 690 V
Rated Impulse Withstand Voltage (Uimp): 6 kV
Rated Operational Current AC-15 (Ie): 4 A@240 V AC ,3 A@440 V AC, 2 A@500 V AC
Rated Operational Current DC-13 (Ie): 2.5 A@24 V DC ,0.7 A@110 V DC, 0.4 A@220 V DC
Standard: IEC 947-5-1, EN 60947-5-1
General Use Rating: (600 V AC) 5 A
Power Loss at Rated Operating Conditions per Pole: 2 W
Mounting Type: DIN-rail Screw
Terminal Type: Screw Terminals
Protection Class IP: IP20
Ambient Air Temperature Operation: -25 … +55 °C
Dimensions (W x D x H): 52.5 x 46.5 x 57.5 mm
