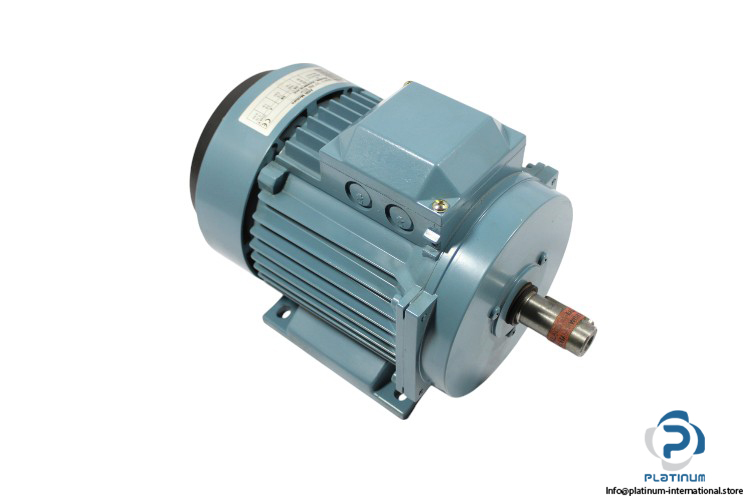

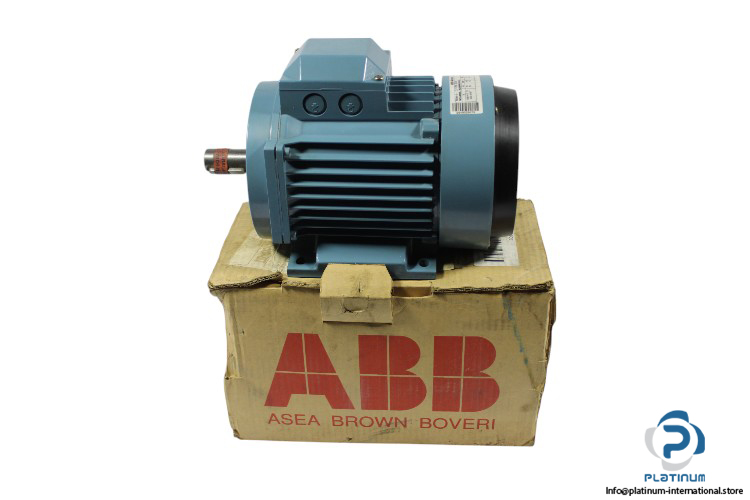

ABB M2AA090L 3GAA098105-AHA 3-PHASE Electric Motor

ABB 3 PHASE ELECTRIC MOTOR

The ABB 3 Phase Electric Motor (Model: M2AA090L 3GAA098105-AHA) is engineered for high-efficiency performance in industrial applications. With a rated voltage range of 400-415V and a rated frequency of 50Hz, this motor provides reliable operation at speeds of 1420 / 710 rpm and power ratings of 1.5 / 0.31 kW. It offers robust protection with an IP55 rating and high insulation class F for durability in harsh environments.

Manufacturer: ABB

Type: 3 Phase Electric Motor

Model: M2AA090L 3GAA098105-AHA

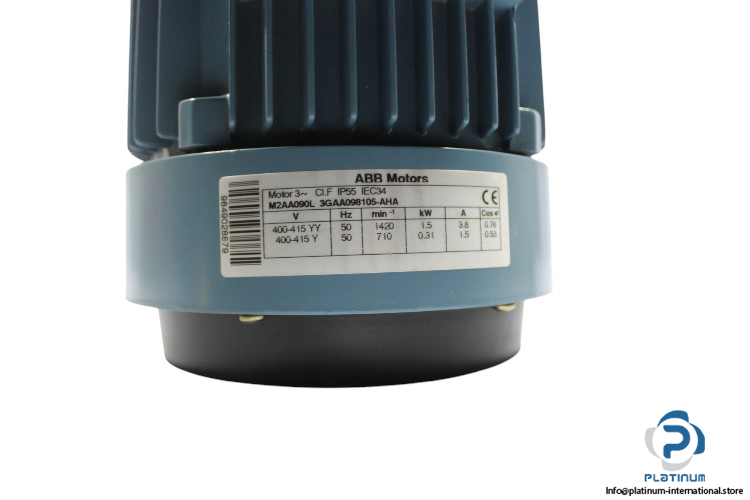

Technical Specifications

• Rated Voltage: (400 “ 415) / (400 “ 415) V
• Rated Frequency: 50 Hz
• Rated Speed: 1420 / 710 rpm
• Rated Power: 1.5 / 0.31 kW
• Rated Current: 3.8 / 1.5 A
• Power Factor: 0.76 / 0.53
• Protection Class: IP55
• Insulation Class: F
