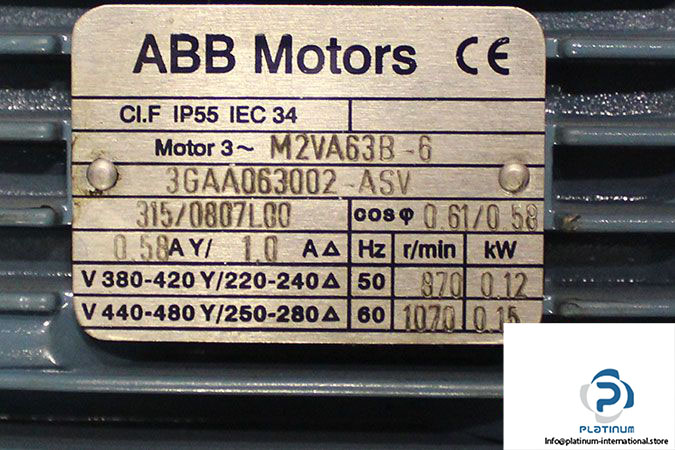

ABB M2VA63B-6 3GAA063002-ASV 3 Phase Electric Motor

Manufacturer: ABB

Type: 3 Phase Electric Motor

Model: M2VA63B-63GAA063002-ASV

At 50 Hz

Rated Voltage (Star): 380…420 V

Rated Voltage (Delta): 220…240 V

Rated Speed: 870 min^-1

Rated Power: 0.12 kW

At 60 Hz

Rated Voltage (Star): 440…480 V

Rated Voltage (Delta): 250…280 V

Rated Speed: 1070 min^-1

Rated Power: 0.15 kW

Rated Current (Star): 0.58 A

Rated Current (Delta): 1.0 A

Power Factor (Star): 0.61

Power Factor (Delta): 0.58

Shaft Diameter: 11 mm

Number of Poles: 6

Motor Size: 63B

Mounting Position: B3

Protection Class: IP55

Insulation Class: F

Weight: 4.53 kg
