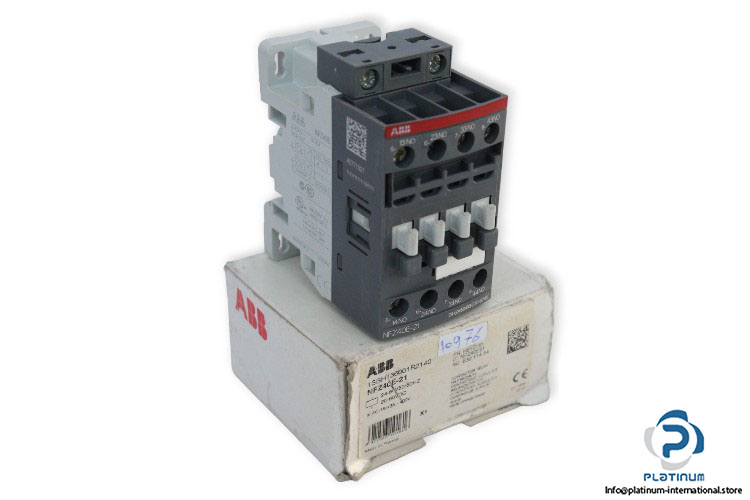

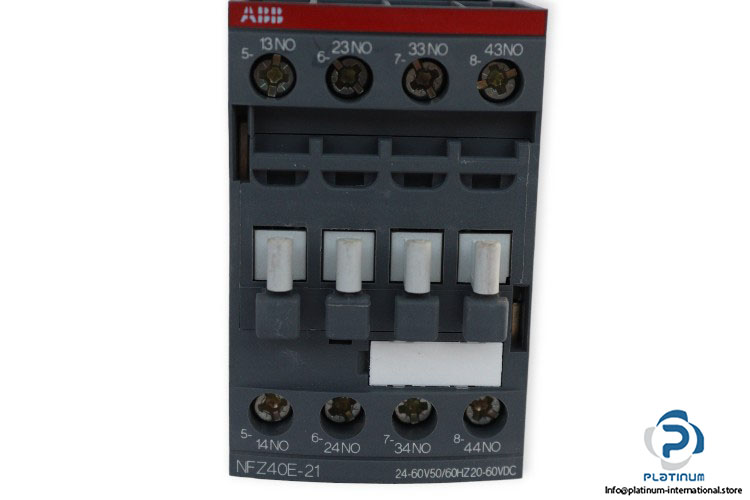

ABB NFZ40E-21 Contactor Relay

Manufacture: Abb
Type: Contactor Relay
Model: NFZ40E-21
Product Id.: 1SBH136001R2140

Control Supply Voltage: 24 … 60 V AC (50/60 Hz),20 … 60 V DC
Contact: 4 Normally open
Thermal current (Ith): 16 A
Rated current AC-15 (Ie): 3 A@400 V
Rated insulation voltage (Ui): 690 V AC
Rated Impulse Withstand Voltage (Uimp): 6 kV
Standard: IEC/EN 60947-5-1
Terminal Type: Screw Terminals
Protection Class IP: IP20
No. of poles: 4
Ambient Air Temperature Near Contactor for Operation in Free Air: -40 … 70 °C
Dimensions (W x D x H): 45 x 77 x 86 mm
