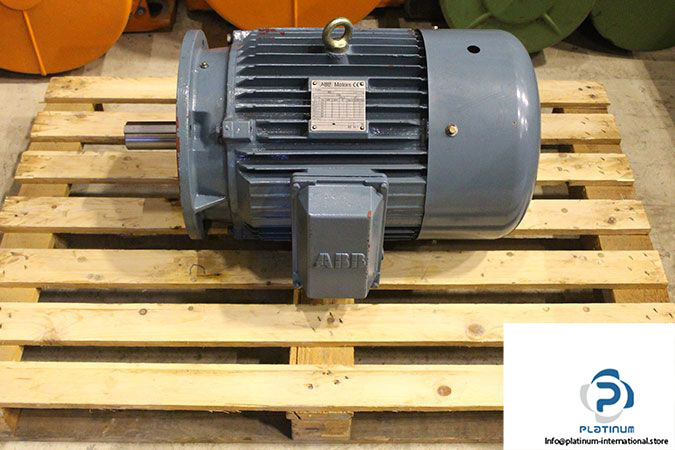

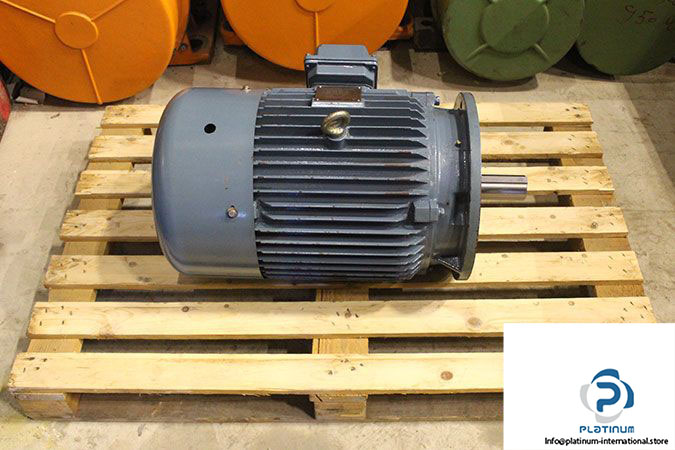

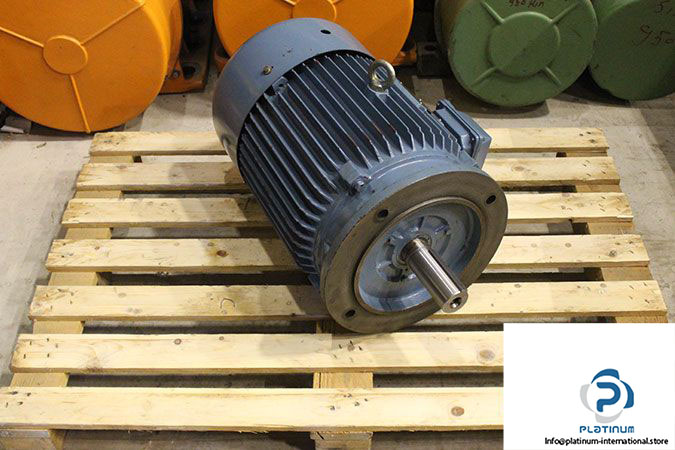

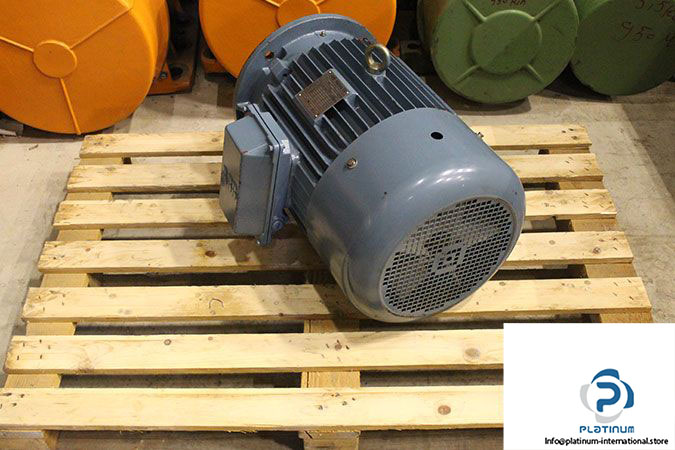

ABB QY180M4A 3 Phase Electric Motor

Manufacturer: ABB

Type: 3 Phase Electric Motor

Model: QY 180M4A

Product Code: QY182301-BDA

Rated Power [kW]: 18.5/21

Rated Speed [rpm]: 1470-1468-1474/1468

Frequency [Hz]: 50/60

Motor Voltage [V] / Conn. Type: 690-600 / Star

Rated Current [A]: 19.78-20.21

Motor Voltage [V] / Conn. Type: 400-380-415/440 Delta

Rated Current [A]: 34.12-35.1-34.08/34.04

Power Factor: 0.83-0.86-0.88/0.88

Shaft Diameter [mm]: 48

Number of Poles: 6

Standards: IEC 34-1

Duty: S1

Mounting Position: B5

Protection Class [IP]: 55

Insulation Class: F

Weight [kg]: 170.0
