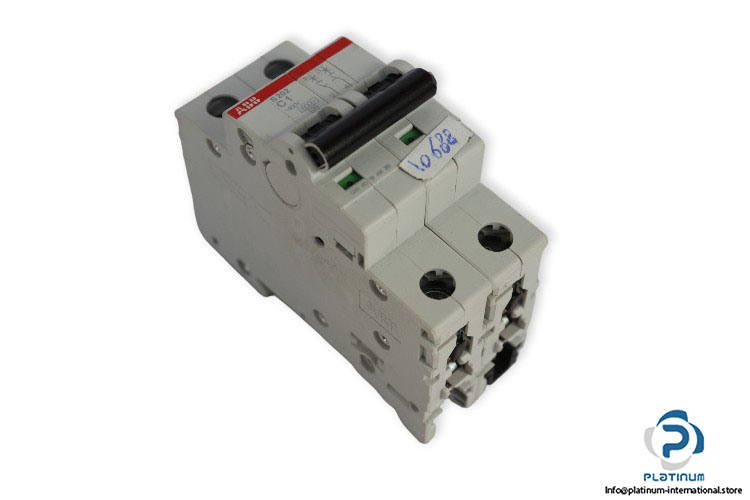

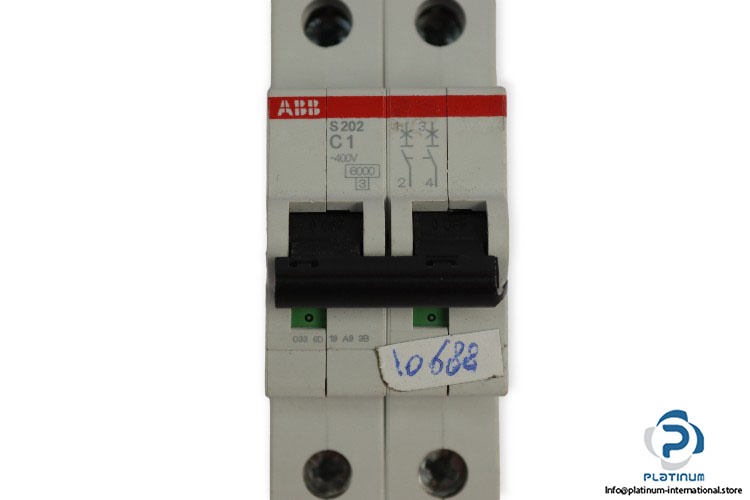

ABB S 202-C1 Miniature Circuit Breaker

Manufacturer: ABB
Type: Miniature Circuit Breaker
Model: S202C1

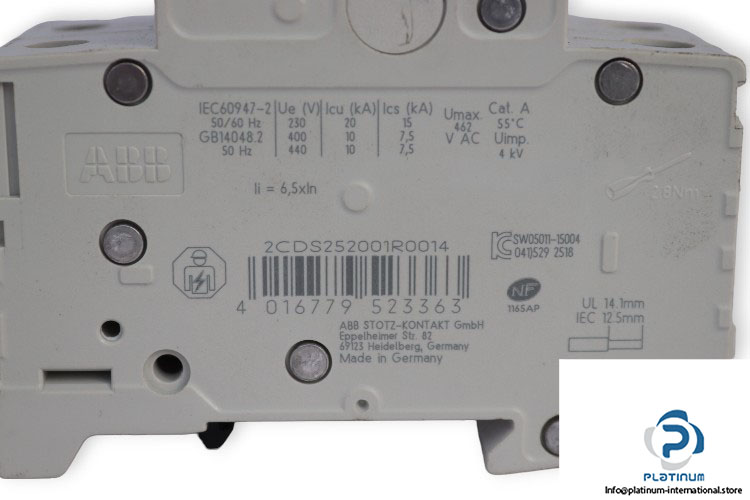

Alternative Model: 2CDS252001R0014

Rated Operational Voltage (Ue): 277 V AC / 110 V DC
Rated Operational Current (In): 6.5 A
Frequency: 50 … 60 Hz
Rated Impulse Voltage (Uimp): 4 kV
Rated Service Short-Circuit Breaking Capacity (Ics):
230 V AC: 20 kA
400/440 V AC: 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
230 V AC: 15 kA
400/440 V AC: 7.5 kA
Power Loss: 2.8 W
No. of Poles: 2-Pole
Protection Class: IP20
Ambient Temperature: -25 … 55 °C
Dimensions: 88 x 35 x 69 mm
