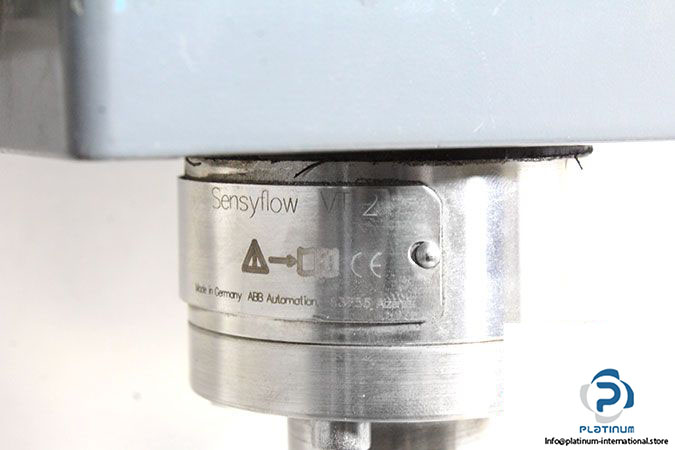

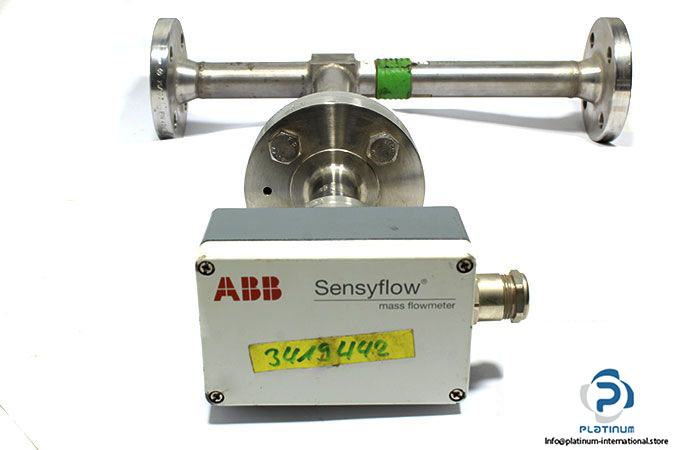

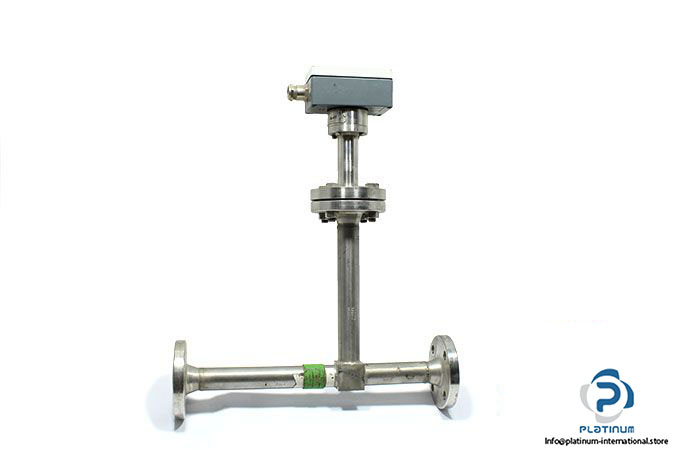

ABB Sensyflow VT-2 Thermal Mass Flow

Manufacturer: ABB

Type: Thermal Mass Flow

Model: SENSYFLOW VT-2

Application: Process engineering

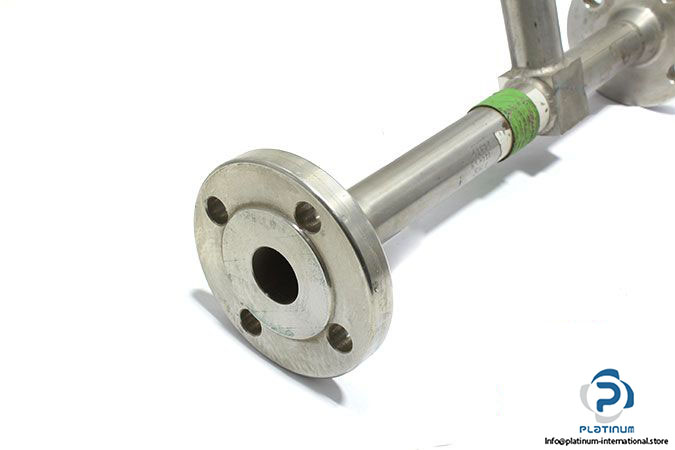

Pipe component form 1: DN25 PN40 316

Measuring section: DN25 PN40 316

Standard-Materials: 1.4571, Hastelloy

Standard Measuring range: 0 … 160 kg/h

Repeatability: < 0,25 % of measured value
Temperature effect: < 0,05 %/K of measured value (dependent on type of gas)
Pressure effect: < 0,2 %/100 kPa (/1 bar) of measured value (dependent on type of gas)
Operating Pressure: 40 bar

Operating temperature Medium (Transmitter): -25 … 150 °C

Response time: T63 = 0,5 s (Metall sensor 2 s)

Supply unit: 230 V AC

Power consumption: ‎15 W‎

Current Drain: < 600 mA
Degree of protection Transducer: IP65

Weight: 9 kg
