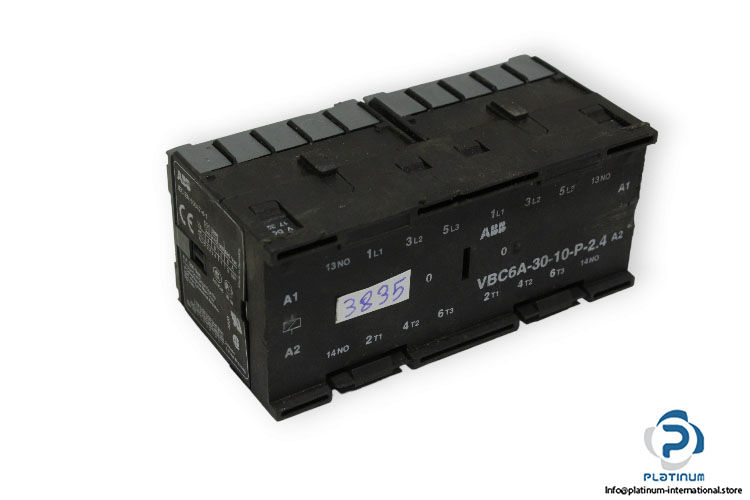

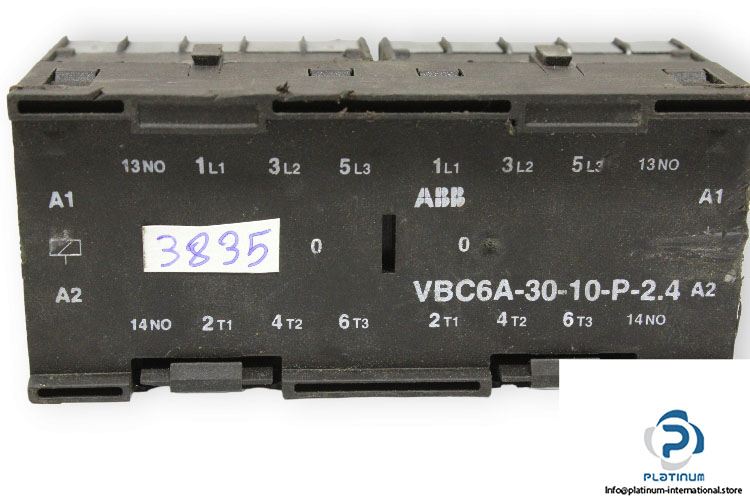

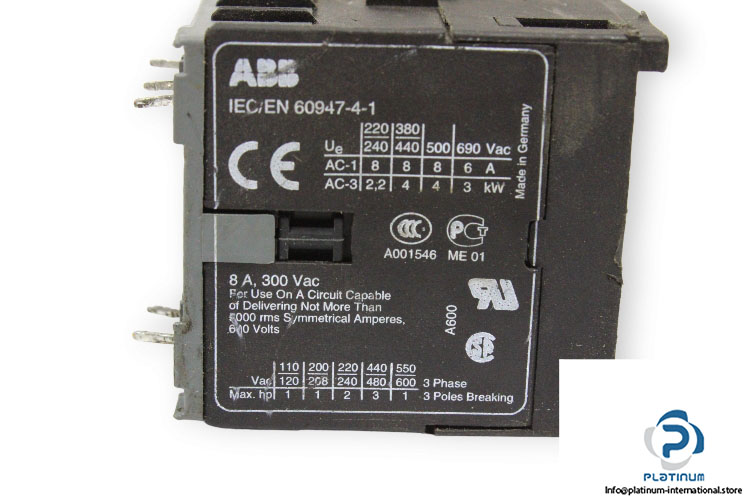

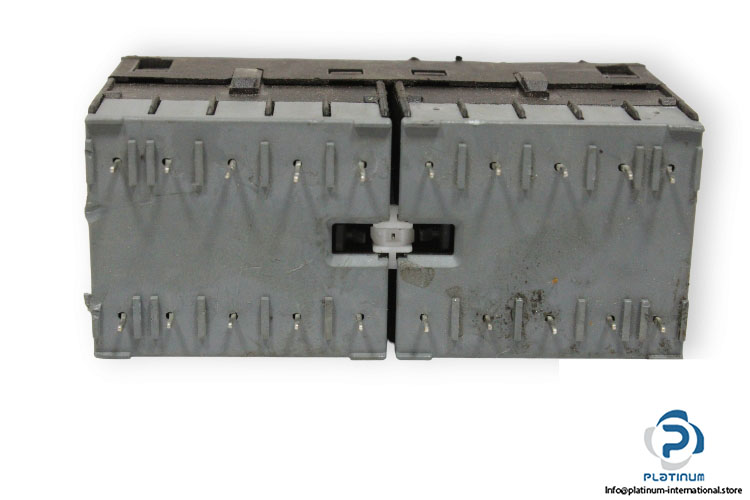

ABB VBC6A-30-10-P-2.4 Mini Reversing Contactor

Manufacturer: Abb
Type: Mini Reversing Contactor
Model: VBC6A3010P2.4

Type: Compact Reversing Contactor with Mechanical Interlock and Safety Blocking
Insulation voltage Ui: 690 V
Thermal Current (Ith): 12 A
No. of Poles: 4
Pollution Degree: 3
Rated Impulse Withstand Voltage (Uimp): 6 Kv
Rated Insulation Voltage (Ui): 690 V AC
Current rating:
8A@220/240,380/440,500 V AC
6A@690 V AC
Power rating:
2.2 kW@220/240 V AC
4 kW@380/440,500 V AC
3 kW@690 V AC
Operation temperature: -20 … +55°C
Dimensions: 96.5 x 57.5 x 51.5 mm
