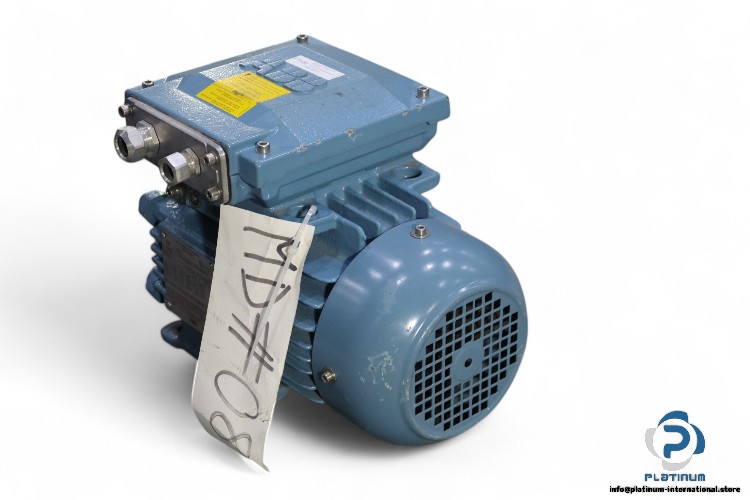

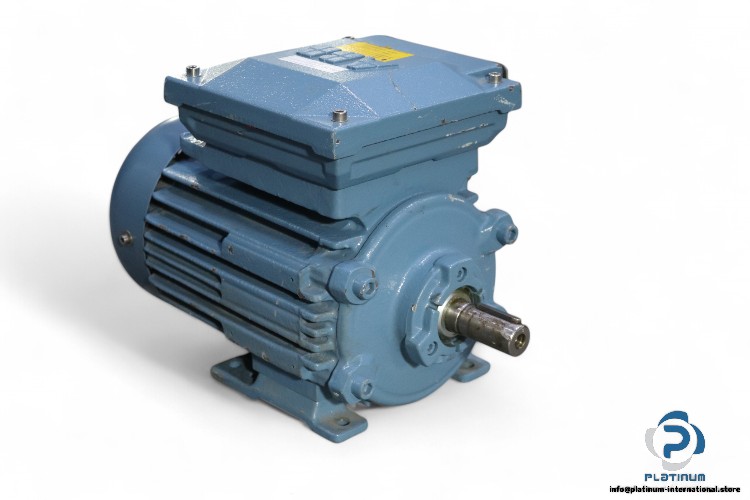

ABB M3GP 90SLC 2 3-PHASE Electric Motor

ABB M3GP 90SLC 2 3-PHASE Electric Motor

The ABB M3GP 90SLC 2 3-Phase Electric Motor is a highly reliable and efficient solution for industrial applications. With a rated power of 2.2 kW, rated speed of up to 2877 RPM, and an insulation class of F, it ensures optimal performance and durability under various conditions. Designed for explosion protection (EEna II T3 Ex), it offers both safety and efficiency for hazardous environments.

Manufacturer: ABB

Type: 3-Phase Electric Motor

Model: M3GP 90SLC 2

Part No.: 3GF13145220

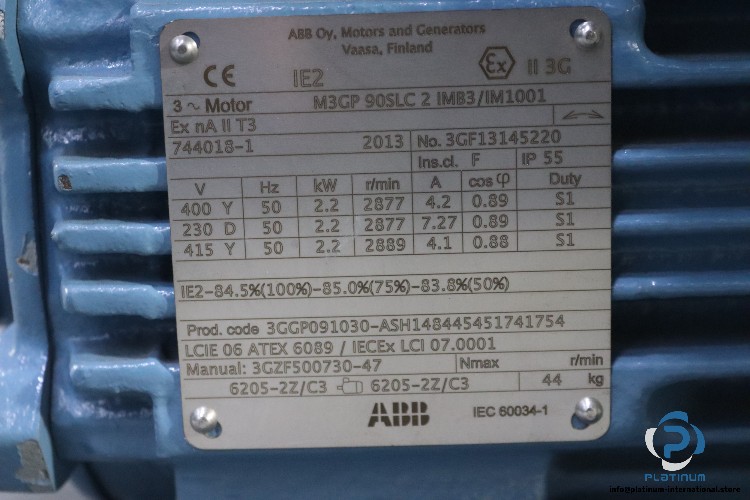

Technical Specifications

• Explosion Protection: EEna II T3 (Ex)
• Rated Voltage [V]: 400Y/230D/415Y
• Rated Speed: 2877/2877/2889 RPM
• Rated Frequency: 50 Hz
• Rated Power: 2.2 kW
• Power Factor: 0.89/0.89/0.88
• Rated Current: 4.2/7.27/4.1 A
• Duty: S1
• Insulation Class: F
• Protection Class: IP55
• Mounting Position: IMB3/IM1001
