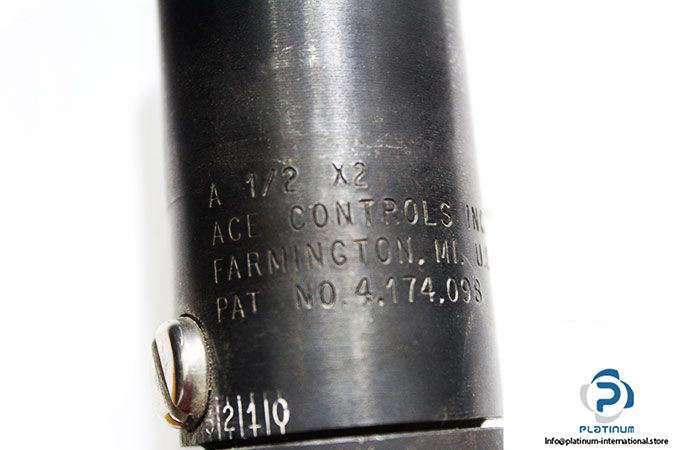

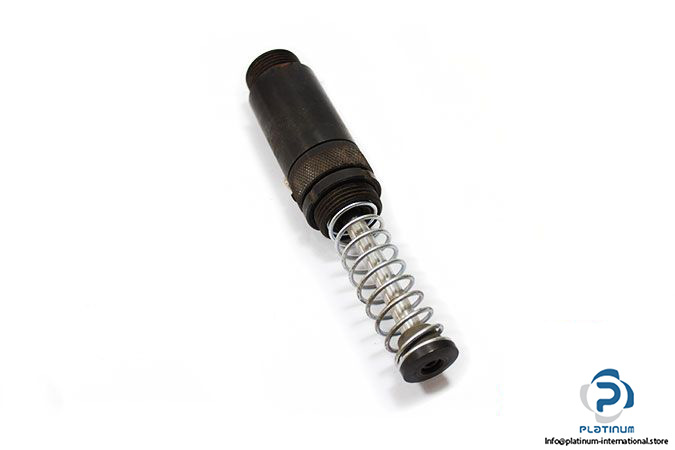

ACE Controls A 1/2 X2 Shock Absorber

Manufacturer: ACE CONTROLS

Type: ADJUSTABLE SHOCK ABSORBER

Series: A

Model: A 1/2 X2

Pat No.: 4.174.098

Application Field:

• Portal Systems
• Machines And Plants
• Conveyor Systems
• Crane Systems
• Loading And Lifting Equipment
• Impact Panels
• Heavy Load Applications
• Swivel Units
• Shelf Storage Systems

Bore Size: 1/2”

Stroke Length: 2”

Impact velocity: 0.1 m/s … 5 m/s

Type of installation: Lock Nuts



Material:

   Outer body: steel corrosion-resistant coating

   Piston rod: hard chrome plated steel

   Return spring: zinc plated steel

Return Time: 0.10 s

Operating temperature: -12  … 66 °C

Weight: 1 kg
