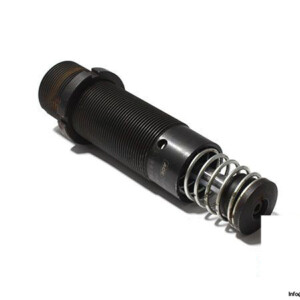

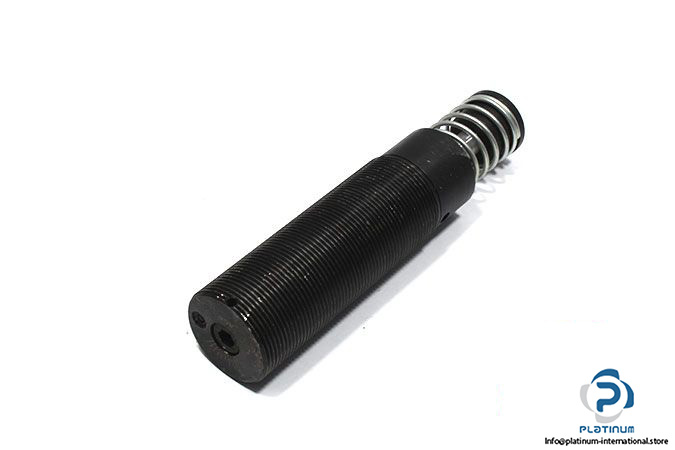

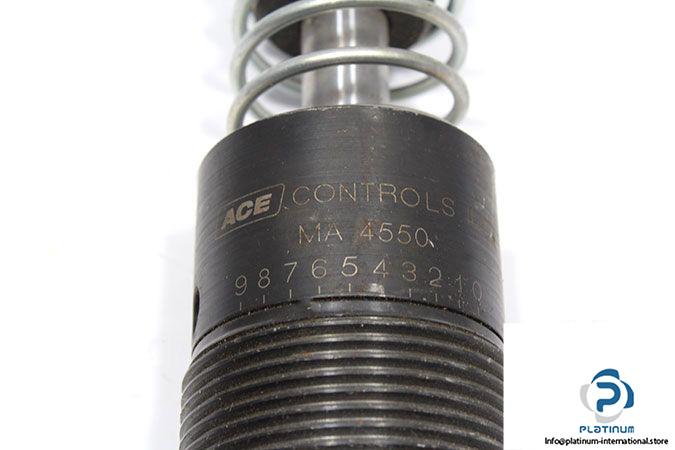

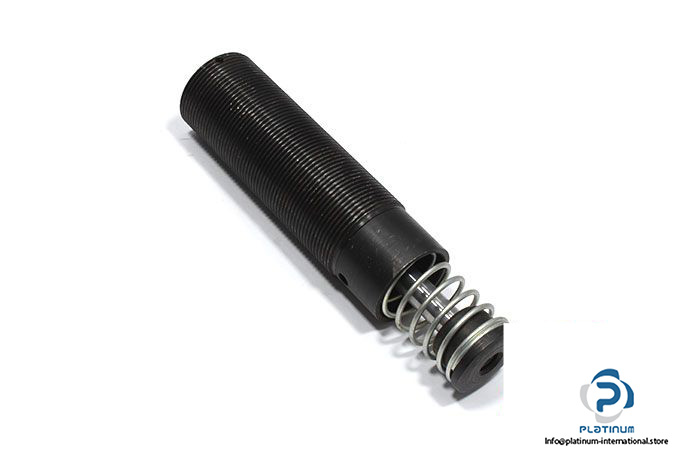

ACE Controls MA 4550 Shock Absorber

Manufacturer: ACE CONTROLS

Type: SHOCK ABSORBER

Model: MA4550

Type of installation: Threaded With Lock Nuts

Energy capacity: 1,000,000 in-lbs/h

min. Effective weight: 150 lbs

max. Effective weight: 32,000 lbs

max. Return Force: 32.2 lbs

min. Return Force: 15.1 lbs

Return Time: 0.08 s

Max. Side Load Angle: 3 °

Impact velocity range: 0.5 ft/sec … 16.5 ft/sec

Operating temperature range: 10 °F … 150 °F

Material

Outer body: Nitride hardened steel

Piston rod: Hard chrome plated steel

Rod end button: Hardened steel and corrosion-resistant

Rod Diameter: 13 mm

Piston Diameter: 35 mm

Total length: 195 mm

Diameter and Step for Threaded Surface: M44 X 1”

Temperature Range: -10 ….. 80 ^°C

Weight: 1.17 kg
