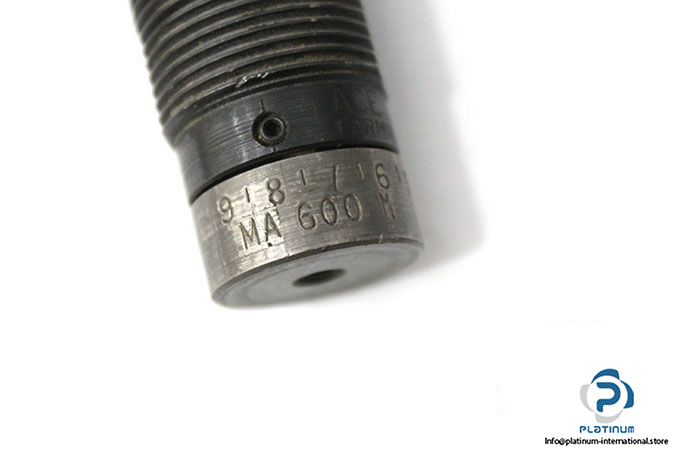

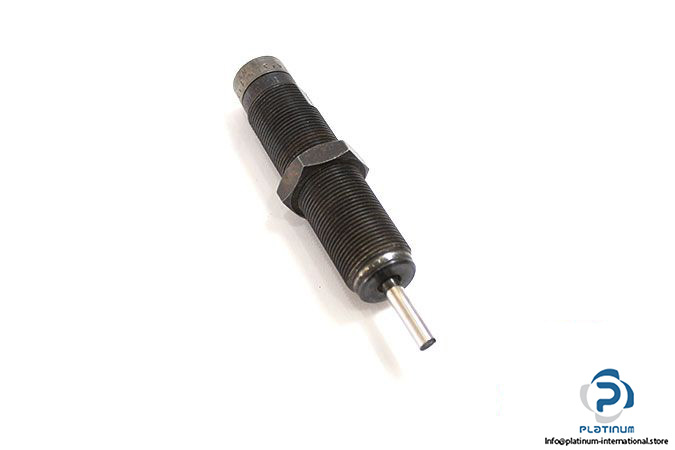

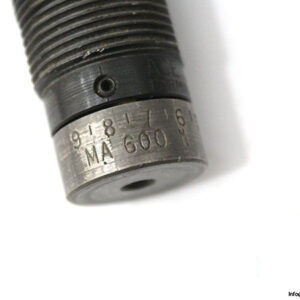

ACE Controls MA 600M Shock Absorber

Manufacturer: ACE CONTROLS

Type: ADJUSTABLE SHOCK ABSORBER

Model: MA 600 M

Impact Velocity: 0.5 ft/sec … 12 ft/sec

Energy Capacity: 600 lbs/Cycle

Effective Weight Range: 20 – 3000 lbs

Button Options: Steel

Stroke Length: 1 in ( 25 mm )

Rod Diameter: 6.3 mm

Total length: 142.4 mm

Mounting Options: Threaded Body

Size: Miniature

Accumlator Style: Internal

Return Method: Spring

Diameter and Step for Threaded Surface: M25 x 1.5

Temperature Range: 32 °F … 150 °F
