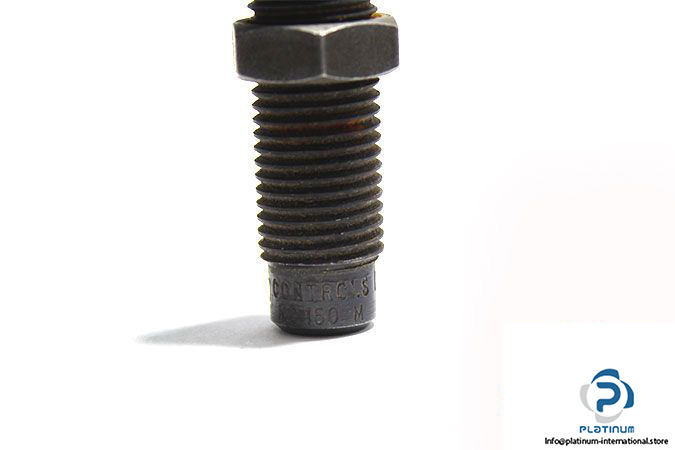

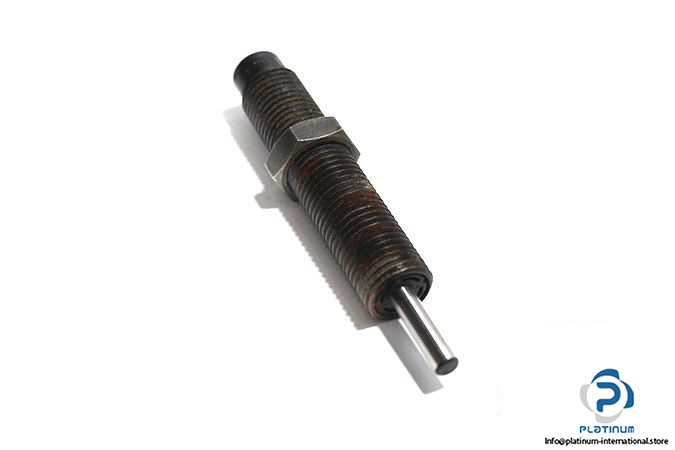

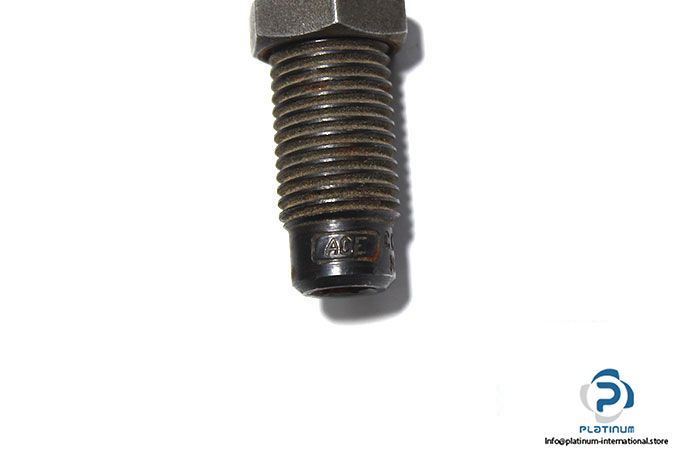

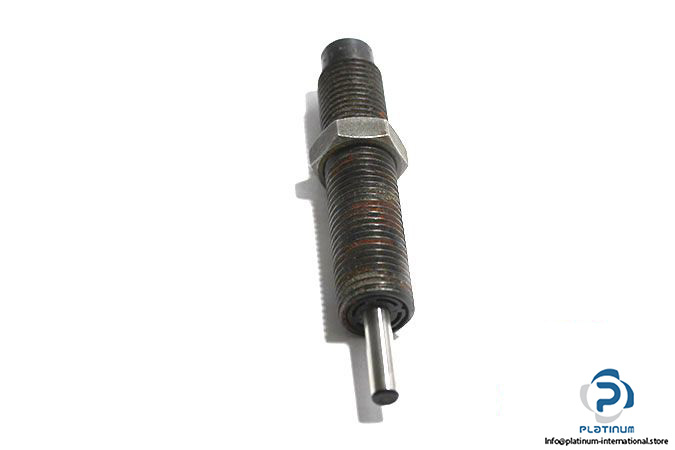

ACE Controls MC 150-M Shock Absorber

Manufacturer: ACE CONTROLS

Type: Self-Compensating Shock Absorber

Series: MC

Model: MC 150M



Stroke Length: 18 mm

Rod Diameter: 4.8 mm

Total length: 87 mm

Diameter and Step for Threaded Surface: M14 x 1.5

Type of installation: Threaded With Lock Nuts

Maximum Energy Capacity Per Hour: 34000Nm

Maximum Energy Capacity Per Cycle: 20Nm

Return Force: 3 … 8 N

Housing Material: Steel

Temperature Range: 0 … 66 ^°C

Weight: 0.055 kg
