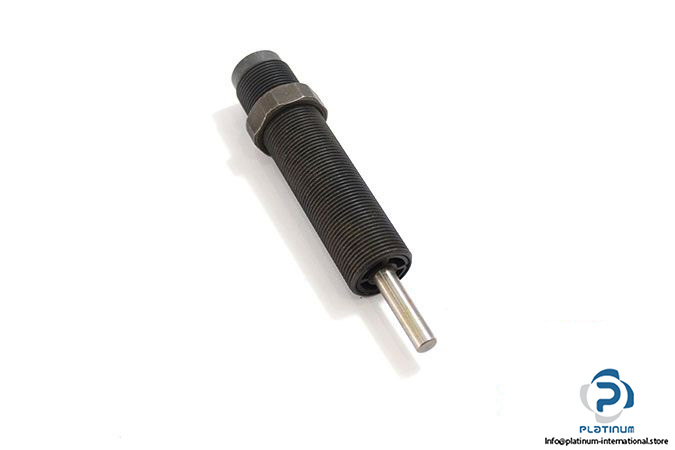

ACE Controls MC 600 MH Shock Absorber

Manufacturer: ACE CONTROLS

Type: SELF COMPENSATING SHOCK ABSORBER

Series: MC

Model: MC 600 MH

Material

     Piston Rod: Hardened, stainless steel

     Locknut: Steel with black oxide finish

     Shock absorber body: Steel nitride hardened steel

Impact Velocity: 0,06 m/s … 6 m/s

Piston Rod Seal: Rolling diaphragm seal EPDM ethylene-propylene

Min. Return Force: 5 N

Max. Return Force: 10 N

Max. Energy Capacity Per Hour: 68 kNm

Max. Energy Capacity Per Cycle: 136 Nm

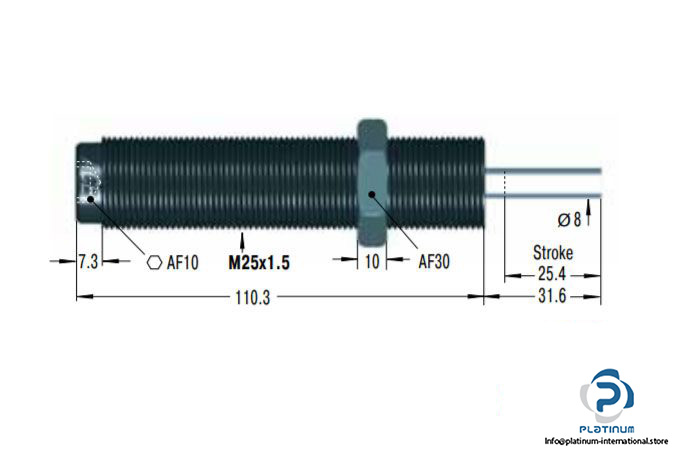

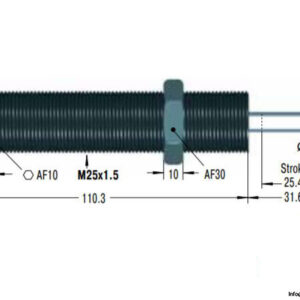

Stroke Length: 25.4 mm

Rod Diameter: 8 mm

Total length: 141.9 mm

Diameter and Step for Threaded Surface: M25 x 1.5

Temperature Range: 0 … 66 ^°C

Weight: 0.26 kg
